Q41F
MSNL

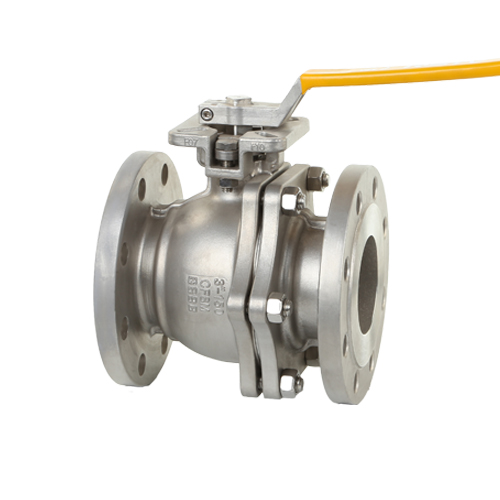

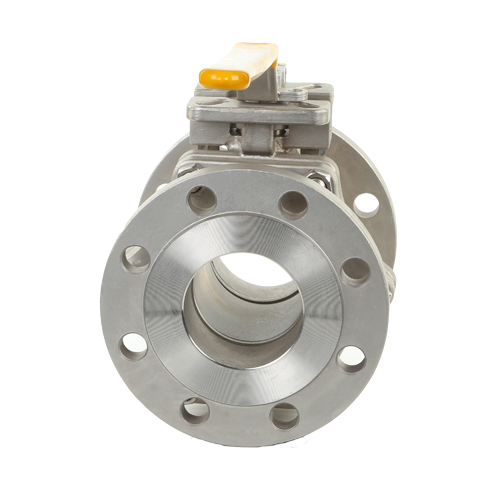

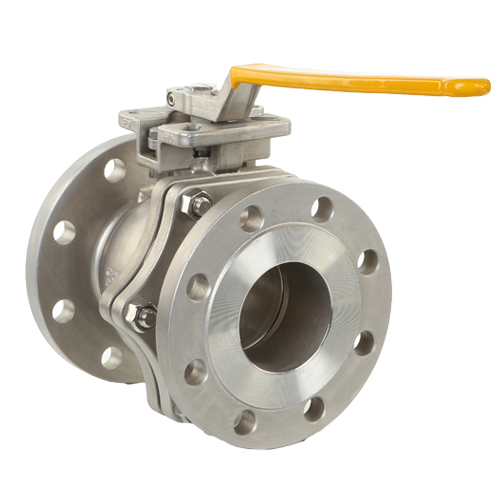

Stainless Steel Floating 2PC Flange Ball Valve with ISO5211 High Mounting Pad API608/API6D
Stainless Steel Flange Ball Valve, there are three choices for valve operation type, one is no pad with handle, one is normal pad with locking device, last one is high mounting pad with handle or actuators, including pneumatic actuator or electric actuator, and for pneumatic actuator, there are single action and double action types, which also could add solenoid valve, limit switch and air filter. Generally speaking, for normal pressure and small size, we could use floating type, for high pressure and bigger size, should use trunnion mounted type. Stainless steel flange ball valve mostly use solid ball, solid ball is forged steel, it could avoid leakage and could bear bigger pressure during operation.
Masoneilan Valve is a professional industry valves supplier and exporter for many years, we always offer the best quanlity and service for our clients.
Stainless Steel Flange Ball Valve specifications:
1. Size: 1/2’’~8’’(DN15~DN200)
2. Pressure: 150LB~600LB
3. Material: A351-CF8, A351-CF8M, A351-CF3, A351-CF3M, A216-WCB
4. Ends: RF, RTJ, BW
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
Stainless Steel Flange Ball Valve design description:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE/PPL/PEEK seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Stainless Steel Flange Ball Valve technical specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
API Stainless Steel Ball Valve competitive advantage:
1. GOOD QUALITY
2. RESONABLE PRICE
3. ON-TIME DELIVERY
4. STRICT EXAMINATION
5. SINCERE SERVICE
6. DURABLE IN USE
7. PROFESSIONAL EXPORT EXPERIENCE
Stainless Steel Flange Ball Valve material list:
