Trunnion Mounted Flange Ball Valve, Carbon steel material, 150LB, with drain valve , is a high performance ball valve for long distance for pipeline, it is more safe and strength, it is suitable for various corrosive and non-corrosive medium.

Trunnion mounted ball valve can bear high pressure, and torque is small, the sealing performance is stable, then valve service life is longer than floating ball valves.

Trunnion Mounted Flange Ball Valve have two seats, bi-directional type seal. It is more safe to avoid leakage. Then there is no limit for installation.

Trunnion Mounted Flange Ball Valve have fire safe design, conform to API6FA and API607 standard. It also has automatic pressure relief function by seat, not by safety valve, this is very important when valves delivery medium.

We can choose full port or reduce port to meet pipeline needs, it is more convenient for cleaning or other request.

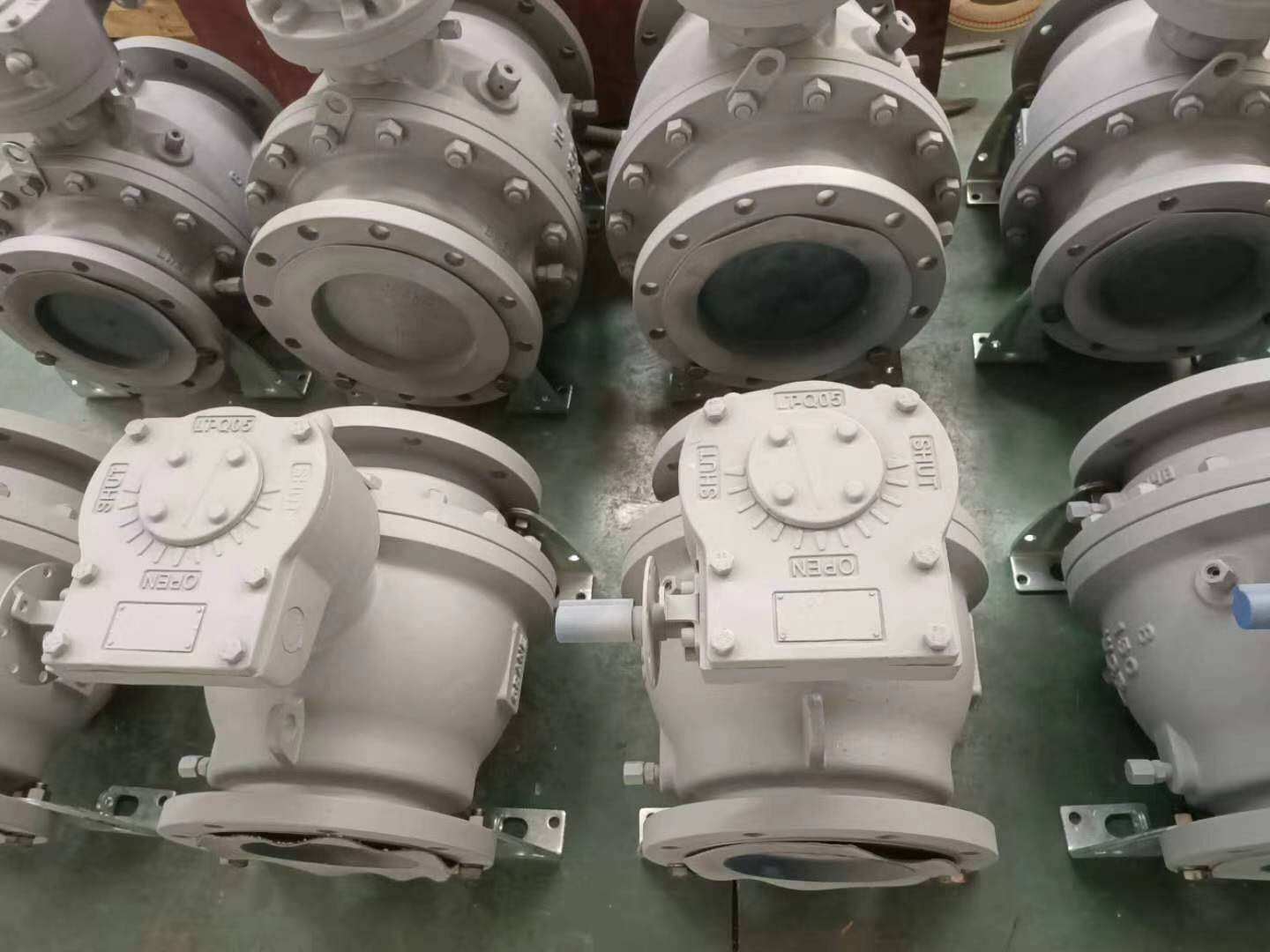

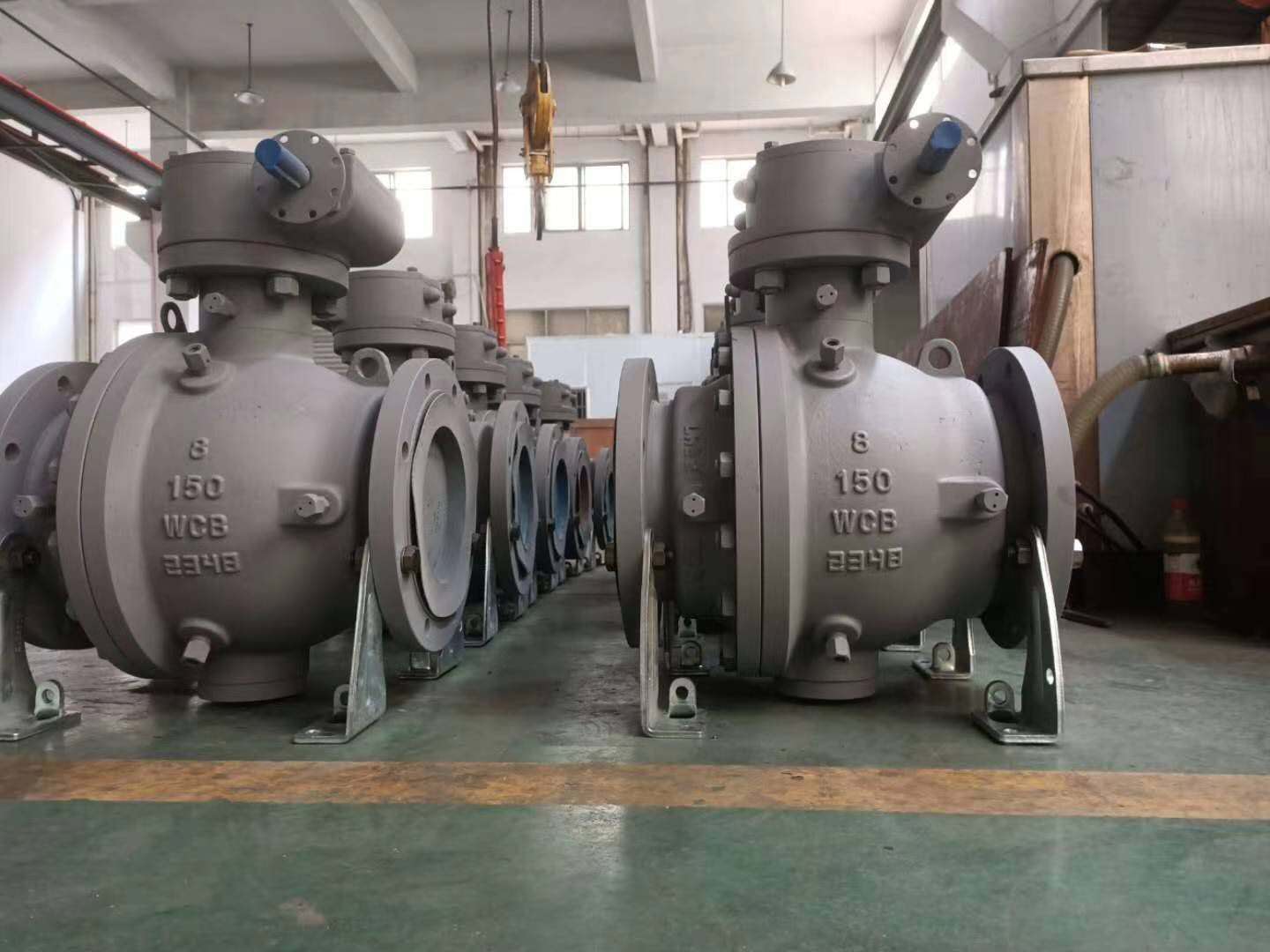

API6D carbon steel WCB 2pc flange trunnion mounted ball valve with worm operated 1API6D carbon steel WCB 2pc flange trunnion mounted ball valve with worm operated

Related Products

Explore the Valves in This Article
Nominal Size： 1 inch / DN25, range 1/4 to 12 inch Pressure Class： ASME Class 150, 19.6 bar at 38°C; Class 300 optional Body Material： ASTM B148 C95800 nickel aluminum bronze Body Type： Two piece, bolted Ball： C95800, SS316 hard faced optional Stem： C95800 or SS316, blowout proof Seat： PTFE, RPTFE, PPL, or reinforced PTFE Packing： PTFE or graphite combined packing End Connection： Threaded NPT / BSPT, flanged RF to ASME B16.5 optional Service Temperature： -29°C to +150°C standard, +200°C high temperature version Seawater Velocity Limit： About 6 m/s clean, 4.5 m/s with sand Design Standard： API 608, ASME B16.34 Test Standard： API 598, ISO 5208 Operation： Lever standard, pneumatic or electric optional
Size Range： 2 to 56 inch (DN50 to DN1400) Pressure Class： ASME Class 150 to 2500 / PN20 to PN420 Body Material： WCB, LCB, CF8, CF8M, CF3M, duplex, alloy steel Ball： Stainless with hard chrome, ENP, Stellite or tungsten carbide overlay Seat： PTFE, RPTFE, PPL, or metal Stellite faced Seat Arrangement： SPE, DPE (DIB-1), or combination (DIB-2) Packing： Live loaded graphite, ISO 15848-1 qualified Fire Test： API 607, also API 6FA and ISO 10497 Fugitive Emission： ISO 15848-1 class B or A, with temperature and cycle class stated Face to Face： ASME B16.10 short or long pattern End Connection： Flanged RF / RTJ to B16.5 and B16.47, butt weld to B16.25 Features： Double block and bleed, sealant injection, anti-static, anti-blowout stem Design Standard： API 6D, API 608, ASME B16.34, ISO 14313 Operation： Lever, gear, pneumatic, electric, hydraulic, gas over oil Sour Service： NACE MR0175 available
Nominal Size： 1-1/2 inch / DN40 Pressure Rating： 1000 WOG (68.9 bar cold working, non-shock) Body Type： Three piece, bolted end caps, four body bolts Body Material： ASTM A351 CF8 (304), CF8M (316) optional Ball： CF8, polished Ra 0.4 µm, full or reduced bore Seat： PTFE, RPTFE, PPL, or Stellite faced metal Body Gasket： PTFE to 180°C, graphite above Packing： PTFE V-ring to 200°C, graphite above End Connection： NPT, BSP, socket weld B16.11, butt weld B16.25, flanged RF Actuator Mounting： ISO 5211 F05 / F07 pad Air Supply： 0.4 to 0.7 MPa clean dry air Service Temperature： -29°C to +260°C, seat dependent Design Reference： MSS SP-110 general purpose, ASME B16.34 body wall Test Standard： API 598, ISO 5208
Nominal Size： 3/4 x 1/2 inch (DN20 x DN15), reduced bore Pressure Class： ASME Class 600 / PN100, 102.1 bar at 38°C Body Material： ASTM A182 F51 forged duplex, UNS S31803 PREN： Approximately 35 Ball： F51 with HVOF tungsten carbide or Stellite overlay Stem： F51, SS316 or 17-4PH, blowout proof Seat： RPTFE, Devlon, PEEK, or Stellite faced metal Bolting： B8M Class 2, alloy 718, or B7M for sour service End Connection： NPT, BSP, socket weld ASME B16.11, butt weld ASME B16.25 Bleed Port： Cavity bleed with plug or needle valve, lockable option Service Temperature： -29°C to +300°C, seat dependent Design Standard： API 6D, API 608, ASME B16.34 Test Standard： API 598, ISO 5208, cavity test through bleed port Sour Service： NACE MR0175 available
