Pressure Class: Class 600 ~ Class 2500 (PN100 ~ PN420)
Temperature Range: -46℃ ~ +425℃ (Standard); Optional low-temperature type down to -196℃ (LNG service)
Materials:
Valve Body: ASTM A105 Forged Steel
Ball: ASTM A105 with ENP (Electroless Nickel Plating, thickness ≥50μm) or ASTM A182 F316 with stainless steel hardfacing (STL)
Valve Stem: ASTM A182 F6a / F316 stainless steel with surface hardening treatment
Seat: RPTFE / Nylon / PEEK / Metal Hard Seal (STL hardfacing / Tungsten Carbide Coating)
Sealing Material: Flexible Graphite / Metal Ring Gasket / Lip Seal
Connection Type: Flange (RF / RTJ), compliant with ASME B16.5
Operation Mode: Hydraulic servo drive (Single-acting / Double-acting), manual hydraulic pump override
Design Standards: API 6D, ASME B16.34, ISO 14313
Test Standards: API 6D, API 598, ISO 5208, ISO 14313
Face-to-Face Dimension: Compliant with API 6D / ASME B16.10
Hydraulic System Pressure: 14 MPa ~ 28 MPa (adjustable)
Operating Time: Emergency shutoff ≤ 1 second; Normal opening/closing adjustable from 3s to 120s
Control Accuracy: Positioning accuracy ±0.5%, repeatability ±0.2%
Safety Integrity Level: Optional SIL 2 / SIL 3 certification (IEC 61508 / IEC 61511)
-
J-VALVES

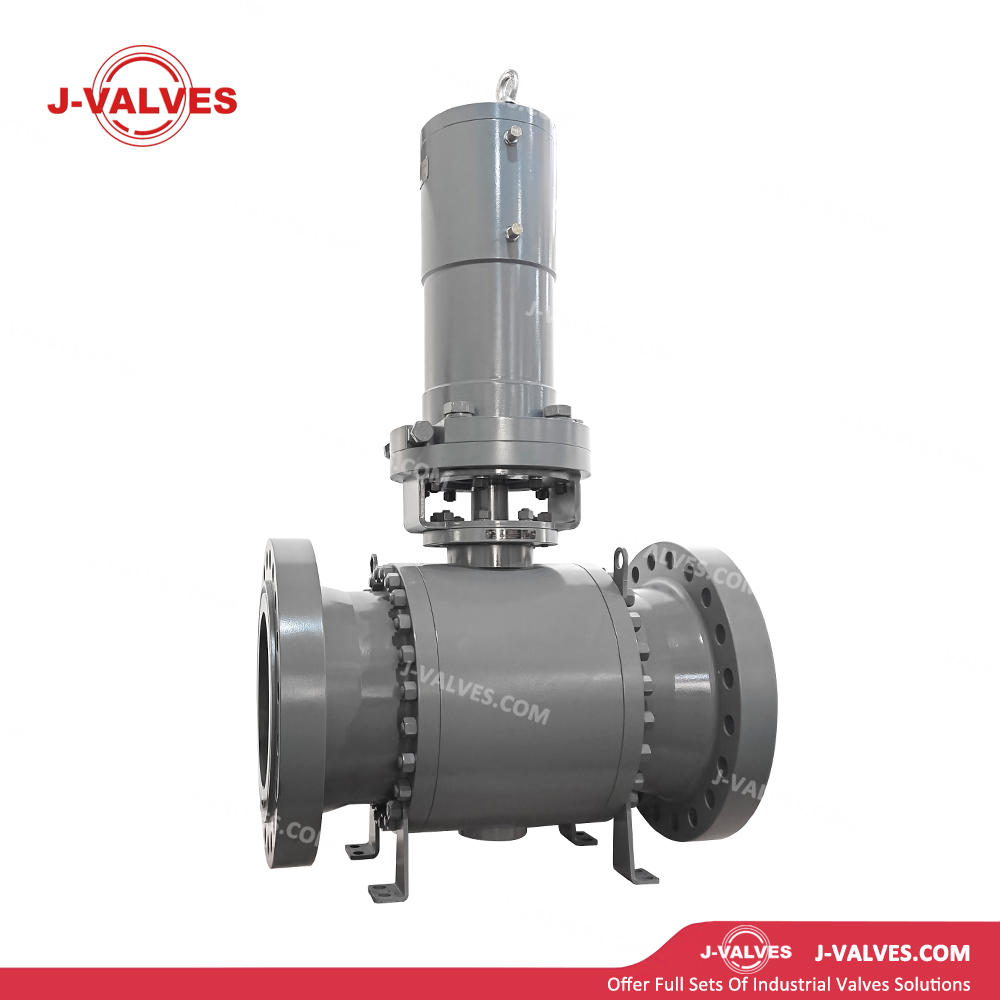

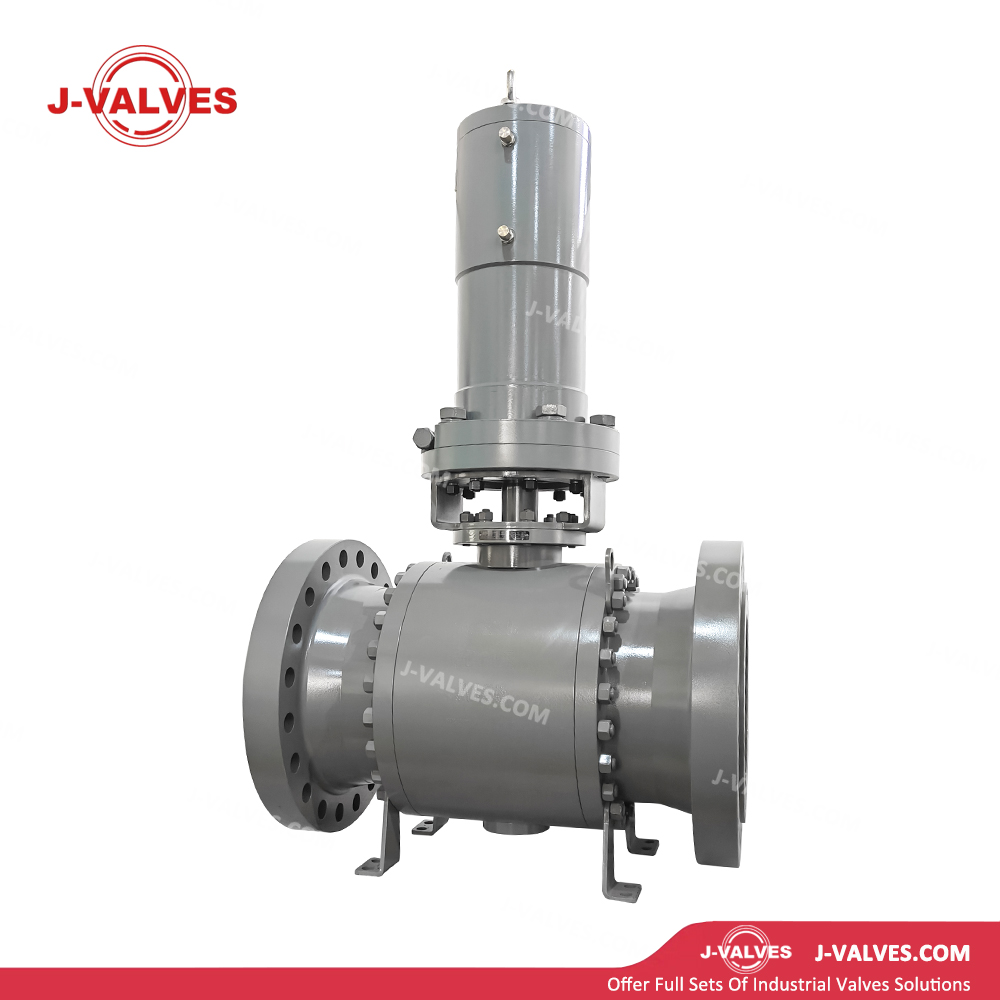

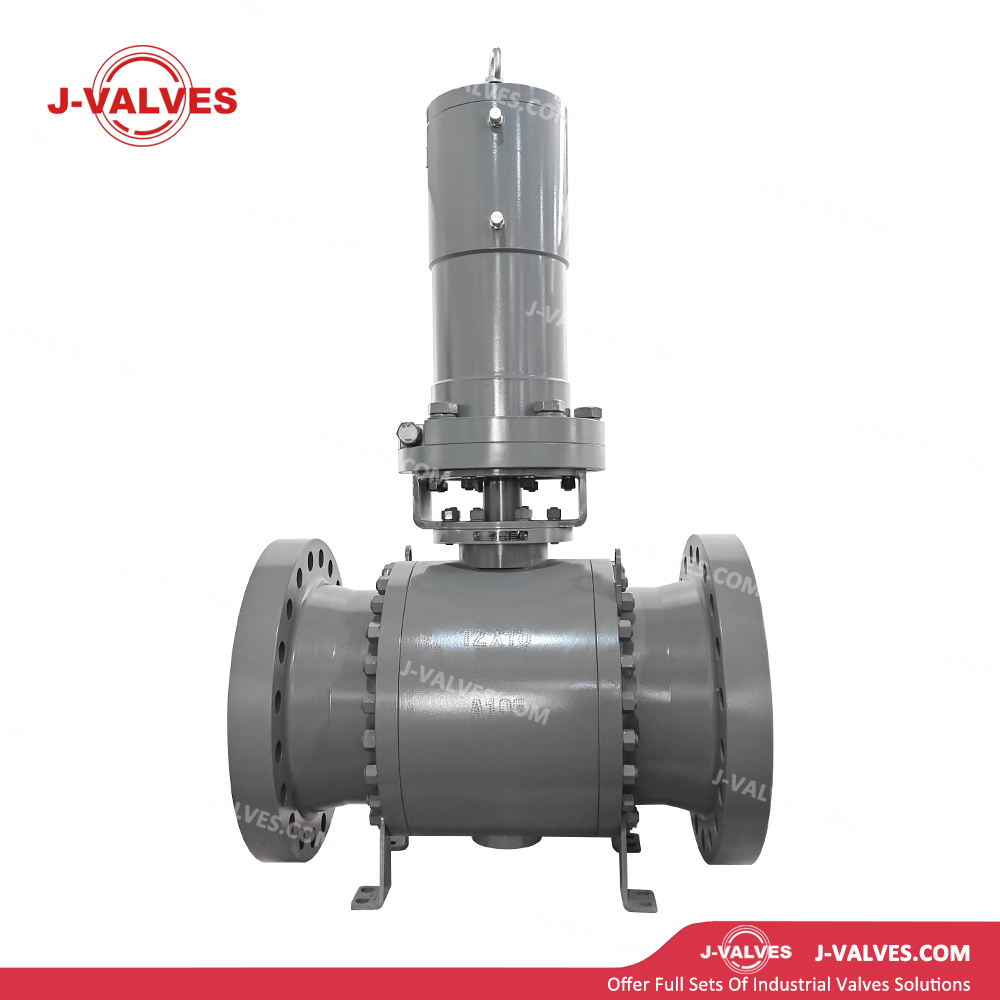

A105 Forged Steel Material: The valve body is integrally forged from ASTM A105 forged steel with fine grain and uniform microstructure. It features high strength, high toughness and excellent pressure resistance, suitable for ultra-high pressure working conditions of Class 2500 and above.
Trunnion Mounted Design: The ball is connected to the valve body via upper and lower trunnion shafts. Sliding bearings and thrust bearings bear medium pressure, so the operating torque is not affected by pressure differential, ensuring low-torque operation for large-bore high-pressure valves.
Hydraulic Automatic Control System: Integrated servo hydraulic actuator supports 4-20mA analog regulation, on-off control and fieldbus communication, realizing precise positioning, proportional regulation and programmed control of the valve.
Dual Piston Effect (DPE) Seat: The seat adopts a dual piston effect design to achieve reliable bidirectional sealing regardless of medium flow direction and support DBB function.
Flange Connection: Available in RF (Raised Face) and RTJ (Ring Type Joint) flange types in accordance with ASME B16.5 standard, ensuring sealing reliability under ultra-high pressure conditions.
Fire Safe Design: Compliant with API 6FA / API 607 standards. The secondary metal sealing structure maintains tightness even in fire scenarios to prevent medium leakage.
Anti-static Device: Built-in anti-static springs and grounding device ensure the resistance between ball, stem and valve body is less than 10Ω, eliminating static accumulation risks.
Anti-blowout Stem Design: The one-piece forged anti-blowout stem is equipped with multiple seals to prevent stem ejection under abnormal pressure conditions.
Emergency Sealant Injection System: API 6D standard grease injection valves are fitted at seat and stem areas. Sealant can be injected in emergency to achieve temporary sealing and leakage remediation.
Fail-Safe Mode: The hydraulic system is optional with Fail Open (FO), Fail Close (FC) or Fail Lock (FL) mode. Equipped with accumulator or spring return device to ensure safe state upon power failure.
Intelligent Diagnosis & Monitoring: Optional smart positioner, valve position transmitter and pressure sensor support HART, Profibus and Foundation Fieldbus communication, enabling predictive maintenance and fault diagnosis
2-3 piece body
Full andreduced bore trunnion mounted
Double block and bleed
Single or double piston effect design anti-blow out stem
Anti-static device
Firesafe to AP1-607/6FA/IS0 10497 springloaded seats
Sealant in jection on request NACE MR-01-75
API Licenses:
API6D
API6DSS
API6A-PSL4
Pressure Class:
ASME 150-2500
API 2000-15000
Service Type:
Standard Temperature:-29℃ to 220℃/-20°F to 428°F
Low Temperature:-46℃ to 150℃/-50°F to 302°F
Cryogenic Temperature: -47℃ to -196℃/-52°F to-320°F
Subsea(Shallow &Deep Water)
Underground
High Temperature:Above 220℃/428°F
J-VALVES trunnion mounted ball valves standard seat ringsare soft-seated by the use of athermoplastic or elastomeric or Meta
Seats-Tungsten /Chrome carbide /ENP
Single Piston (SPE) , Double Piston effect (DPE) and Combination (SPE x DPE) seats are available.
Valve seating variations
| Seat Design | Single piston effect (SPE) | Double piston effect(DPE)-DIB 1 | Combined DIB 2 |
| Bi-directional sealing | Yes | Yes | Yes |
| Body-Cavity Self relieving | Yes | No | Yes |
| Double Barrier | No | Yes | Yes (preferred direction only) |
Types of Trunnion Ball Valves Available
2PC Flanged Trunnion Mounted Ball Valves, 3PC Side-Entry Flanged Trunnion Mounted Ball Valves, High-Pressure Trunnion Mounted Ball Valves, Top-Entry Flanged Trunnion Mounted Ball Valves, High-Temperature Trunnion Mounted Ball Valves, High-Pressure Trunnion Mounted Ball Valves, Forged Trunnion Mounted Ball Valves, Cast Trunnion Mounted Ball Valves, Full Bore Trunnion Mounted Ball Valves, Cryogenic Trunnion Mounted Ball Valves
