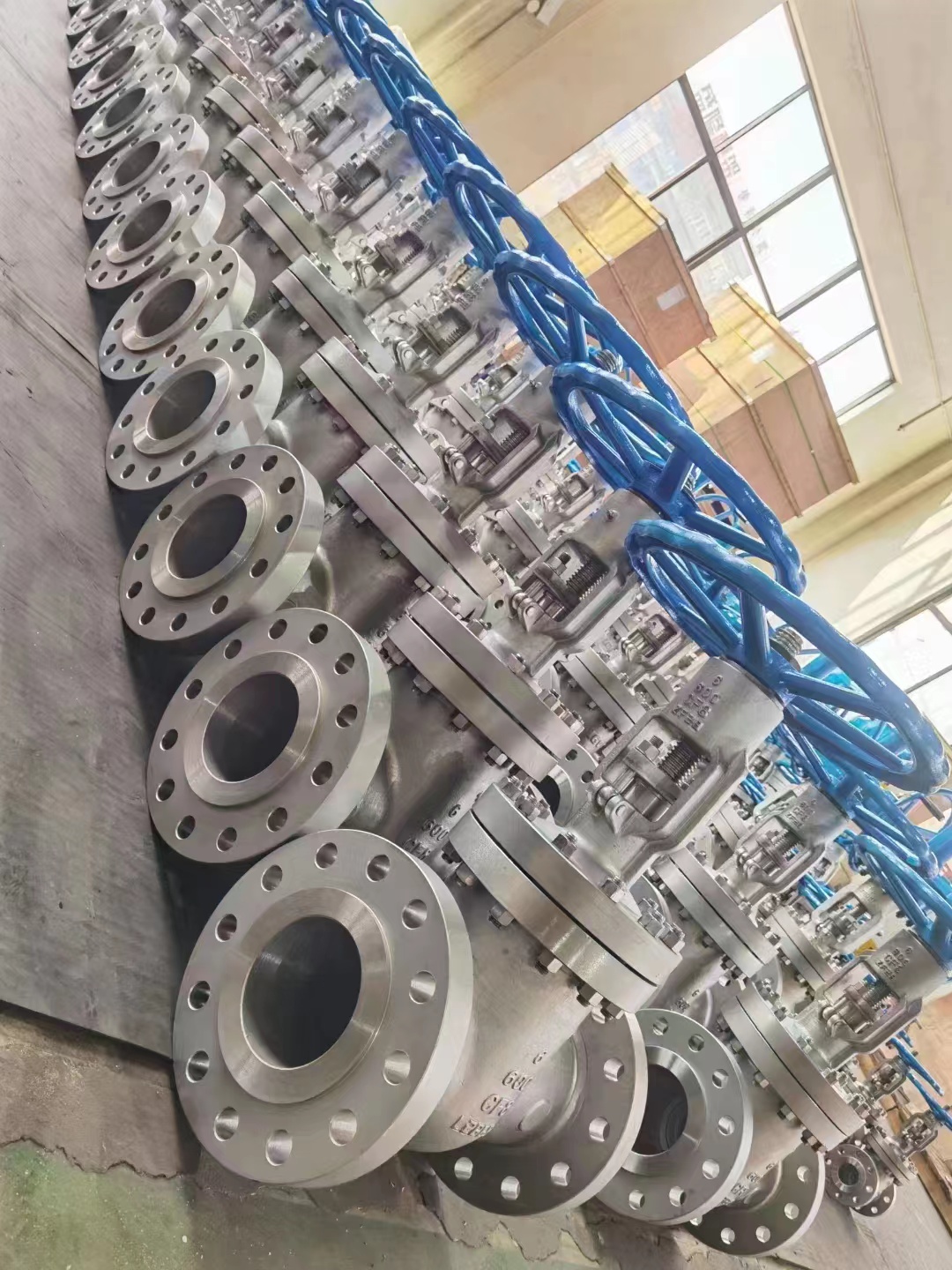

600LB A351-CF8 Metal Seat Flange Rising Stem Stainless Steel Gate Valve
API600 standard stainless steel gate valve with handlewheel order export to UAE for oil pipeline installation. This size is 6'' , all use handlewheel operated, from 14'' and bigger size, we suggest to use bevel gear for easy open and close. This type is metal seat, rising stem, non-rising stem is also available. Metal seat temperature range from -196 degree to 425 degree. But for -196 degree, we will suggest to use other materials and parts. And stainless steel A351-CF8 is a kind of anti-corrosion material, and we also have alloy steel, duplex steel for more anti-corrosion materials to choose.
Our engineer team will give you the best suggestion for your application.
Size Range： 8 inch (DN200); 2 to 24 inch in the family Pressure Class： Class 300 (PN50), 51.1 bar at 38°C Body Material： ASTM A105N forged, or A216 WCB cast Ball： CF8 / CF8M, or A105N with ENP / hard chrome Seat： PTFE, RPTFE, PPL, or A105N with Stellite hardfacing Stem： 316 stainless or 17-4PH, anti-blowout Bolting: A193 B7 studs with A194 2H nuts Body Joint： Single gasketed joint; spiral wound or RTJ Top Flange： ISO 5211 mounting pad, standard End Connection： Flanged RF / RTJ to ASME B16.5 Temperature Range：-29°C to +425°C, seat dependent Design Standard： ASME B16.34, API 6D, API 608 Test Standard： API 598, API 6D
Size Range： 2 to 56 inch (DN50 to DN1400) Pressure Class： Class 150 to 2500 (PN20 to PN420) Body Material： A105, A350 LF2, A182 F304 / F316, A694 F65 Ball： A105 + ENP 50 µm min, or stainless with STL / tungsten carbide Seat： RPTFE, nylon, PEEK, or metal with Stellite hardfacing Stem ：A182 F6a, F316, or F51 duplex, surface hardened End Connection： Flanged RF / RTJ to ASME B16.5, B16.47 above 24 inch Actuator： Rack and pinion or scotch yoke, double acting or spring return Air Supply： 0.4 to 0.7 MPa standard, 1.0 MPa option Mounting Interface： ISO 5211 pad and drive Pressure Drop： Under 0.01 bar at full open, full bore Temperature Range： -46°C to +200°C; -196°C or +425°C option Standard ：API 6D, ASME B16.34, ISO 14313; test API 598, ISO 5208
Size Range ：12 inch (DN300); 2-56 inch in the family Pressure Class： ASME Class 300 (PN50), 51.1 bar at 38°C Body Material： ASTM A105 forged carbon steel, welded closure Ball： A105 with ENP or hard chrome; F304 / F316 option Seat： A105 with Stellite or nickel-based hardfacing; PTFE / RPTFE option Stem： F316 or 17-4PH, anti-blowout, extended for burial Seat Effect： Double piston effect (DPE) standard for welded body End Connection： Butt weld to ASME B16.25 Temperature Range： -29°C to +425°C Design Standard： API 6D, ASME B16.34 Test Standard： API 598 shell and seat, API 6FA fire safe Body Weld NDT： 100% RT or UT on the welded closure Operation： Worm gear standard; pneumatic, electric, gas-hydraulic
Size / Bore： 8 inch (DN200), full bore standard; reduced bore on request Pressure Class： ASME Class 2500 / PN420 Design Temperature： -29°C to +425°C (-20°F to +800°F) Body / Closure： ASTM A182 F11 forged, 1.25Cr-0.5Mo; F22 or F91 on request Ball： A182 F11 with Stellite 6 overlay, or tungsten carbide HVOF 1,000-1,200 HV Seat： Metal seated, Stellite 6 or nickel-based overlay, lapped as a matched pair Seat Design： SPE standard; DPE (DIB-1) or DIB-2 optional Leakage Class： ISO 5208 Rate D metal seated; Rate C achievable on low differential Stem： A182 F316, anti-blowout, anti-static, stem extension available Packing： Flexible graphite, live loaded gland Body Joint： Bolted, spiral wound gasket 316L + graphite Bolting： ASTM A193 B16 studs / A194 Grade 4 nuts End Connection： RTJ flange to ASME B16.5; butt weld to ASME B16.25 optional Face to Face： ASME B16.10 long pattern Design Standard： API 6D, ASME B16.34 Test Standard： API 598 / ISO 5208; shell 638 bar, seat 468 bar Fire Safe： API 607 / ISO 10497, API 6FA Fugitive Emission： ISO 15848-1, class and temperature per project Operation： Worm gear standard; pneumatic, electric or hydraulic actuated Approx. Weight： About 620 kg, gear operated Certification： EN 10204 3.1, NACE MR0175 on request, PED on request
