Q11F
MSNL

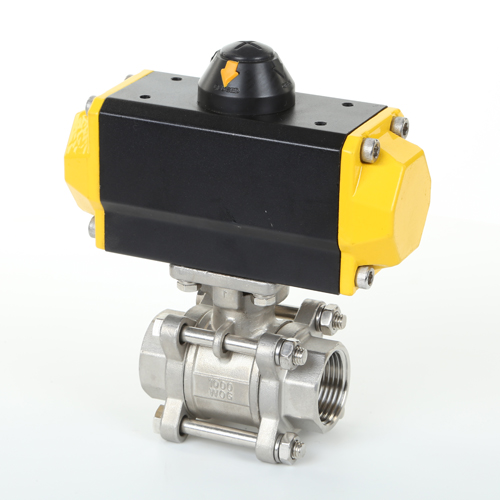

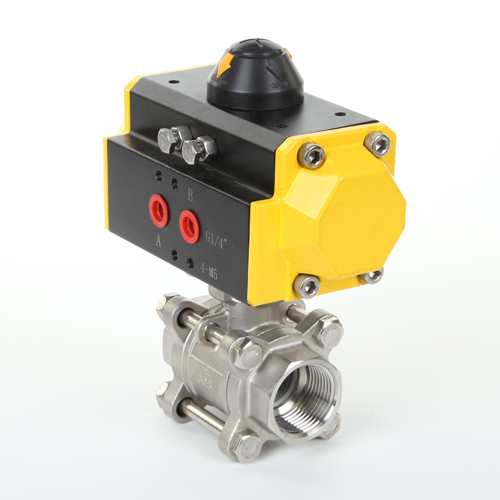

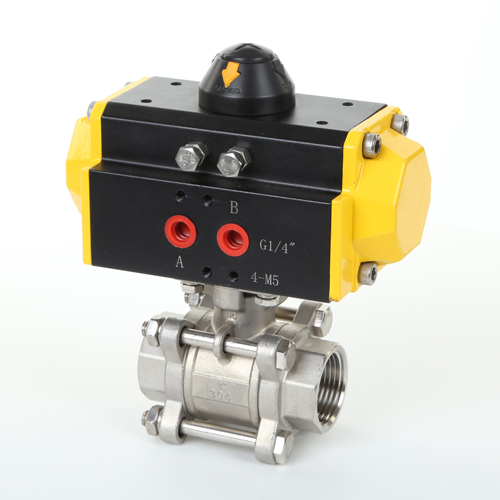

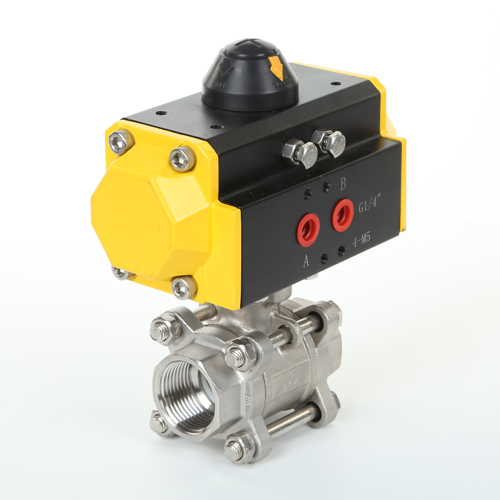

3PC Stainless Steel Full Port Floating NPT/BSPP/BSPT Ball Valve with Double Action Pneumatic Actuator
3PC ball valve with pneumatic actuator belongs to control valve, it is not operate with handle. Generally speaking, pneumatic actuator could make single action and double action, and it should choose actuator pressure according to client's air pressure. If air pressure too big, can not choose suitable actuator, then vavles is hard to open and close. 3PC ball valve also have a advantage is that it's easier to assembly and disassembly when have problems on pipeline. 3PC ball valve with ISO5211 mounting pad, it's better for different actuators, and it is soft seat type, it could be zero leakage.
Pneumatic Actuator Ball Valve specifications:
1. Size: 1/4’’~4’’(DN6~DN100)
2. Pressure: 1000WOG
3. Material: A351-CF8, A351-CF8M, A216-WCB
4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
Pneumatic Actuator Ball Valve design features:
1. High quality investment castings improve dimensional control and reduce porosity; certified material test reports are available upon request.
2. High Temperature Seats and Seals
3. Blow-Out-Proof Stem. Stem is bottom loaded to prevent removal when valve is in service
4. Temperature Range: -20° to 600° F (depending on seats)
5. Connection ends: NPT/BSP/BSPT/DIN259/DIN2999, Butt Welding, Socket Welding.
6. Three piece construction, swing-out construction makes the valve easy to repair in line 3PC ball valve delivers exceptional performance and economy in a 3-piece design.
Pneumatic Actuator Ball Valve competitive advantage:
1. We have professional inspectors to control every production process to guarantee the quality of our products.
2. 18 Months warranty after delivery.
3. Offer free samples for testing before orders.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
5. 100% leakage testing.
6. 100% inspection & testing for every production process before delivery.
7. Our mainly market is European, Central/South America, Middle East, South Africa, Asia, including many countries, our price & quality are suitable & workable in different market, we can meet your requirements.
