Q11F
J-VALVES
Stainless Steel Material: The valve body is made of 316 stainless steel, providing high strength and good corrosion resistance.
Floating Ball Design: The ball can float freely under the pressure of the medium, closely fitting the valve seat to form an excellent sealing effect.
Threaded Connection: Adopts NPT threaded connection, complying with ANSI B1.20.1 standards, ensuring easy installation and tight sealing.

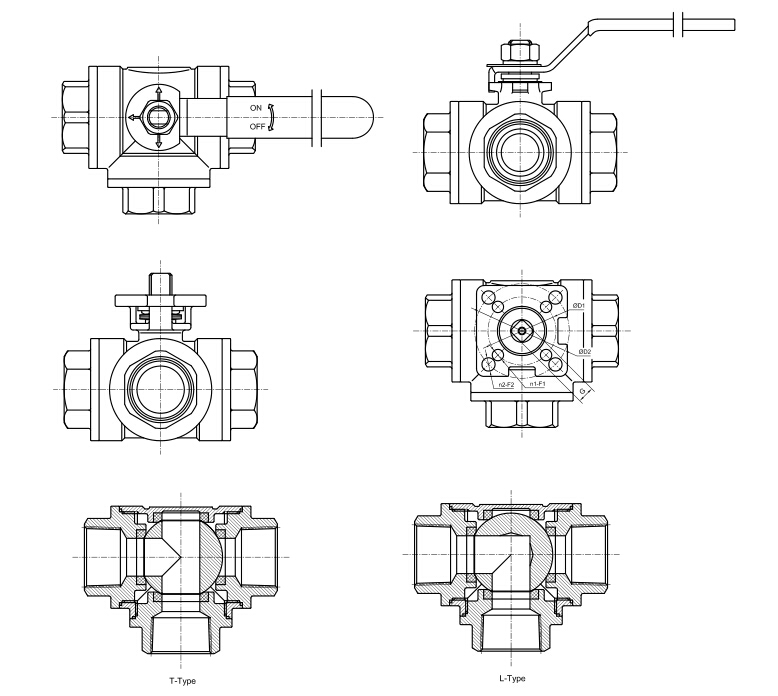

L/T Port Configuration: Offers L-shaped and T-shaped port configurations, suitable for different flow control requirements.
Fire-Safe Design: Complies with API 607 standards, maintaining sealing performance even in fire conditions to prevent medium leakage.
Anti-Static Device: Built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion.
Stem Blowout Prevention: The stem features a blowout-prevention design to ensure operational safety.
Compact Design: Small in size and light in weight, facilitating installation and integration into existing systems.
Size Range: 1/4″ to 4″ (DN6 to DN100)
Pressure Rating: 1000WOG
Temperature Range: -20℃ to +180℃
Materials:
Valve Body: 316 Stainless Steel
Ball: 316 Stainless Steel
Stem: 316 Stainless Steel
Sealing Material: PTFE, RPTFE
Connection Type: NPT Threaded Connection
Operation Mode: Manual (handwheel operation), Pneumatic
Design Standards: API 608, ASME B16.34
Testing Standards: API 598
End-to-End Dimensions: Compliant with ASME B16.10 standards
Oil and Gas Industry: Used in oil and gas field exploration, gathering, transportation, and processing systems to ensure reliable isolation and control of media.
Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.
Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure medium isolation and cleanliness in the drug manufacturing process.
Food and Beverage Industry: Meets food-grade requirements, used in pipeline systems for food and beverage production to ensure hygiene and safety.
HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.
General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas.
High Reliability: The stainless steel material and floating ball design ensure stable operation of the valve in high-pressure and high-temperature environments, reducing maintenance frequency and downtime.
Precise Control: L-shaped and T-shaped port configurations provide flexible flow control, suitable for various industrial applications.
High Safety: Fire-safe and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.
Easy Installation and Maintenance: The threaded connection simplifies the installation process and facilitates maintenance and inspection.
Wide Applicability: Multiple material options and a broad range of pressure and temperature ratings enable it to adapt to various complex working conditions and medium characteristics.

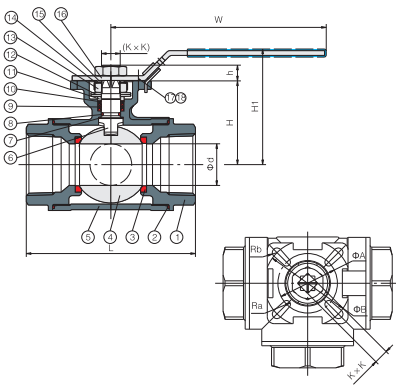

3PC Screwed Ball Valve Material List:
