Q11F
MSNL

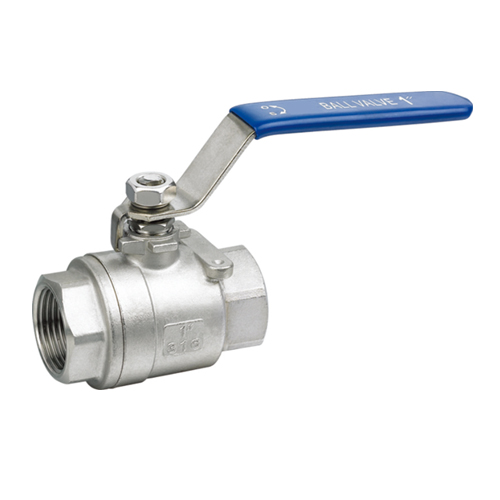

2PC Stainless Steel Full Port NPT/BSPP Screwed Floating Ball Valve
The 2PC Stainless steel ball valve should not be mistaken for a "ball-check valve", which is a type of check valve that uses a solid ball to prevent unwanted backflow. There are six main body styles for Floating Stainless Steel ball valves: single body, two-piece body, three-piece body, split body, top entry, and welded. The difference lies in the number of pieces used to manufacture and assemble the valve, particularly the casing that houses the ball. The operation of the Screwed 2PC Ball Valve is the same in all cases. Additionally, there are various styles related to the bore of the ball mechanism itself.
2PC Screwed Ball Valve specifications:
1. Size: 1/4’’~4’’(DN6~DN100)
2. Pressure: 1000WOG
3. Material: A351-CF8, A351-CF8M, A216-WCB
4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
2PC Screwed Ball Valve design features:
1. Investment casting body
2. Adjustable stem packing
3. Blow out proof stem
4. 100% leakage tested
5. Handle operated
6. Working Temperature: -20℃~250℃
7. Available with ISO5211 direct mounting pad & actuators
8. Available with locking device
9. Other materials upon customer’s request
2PC Stainless Steel Ball Valve competitive advantage:
1. Our products are guaranteed for 18 months after delivery.
2. We prioritize technology updates, process enhancements, structural optimization, and quality improvements.
3. We have an excellent after-sales service system that offers timely and optimal assistance, helping you succeed in the market.
4. We have a convenient shipping sea port and use standard carton boxes and plywood cases for exporting.
2PC Stainless Steel Ball Valve Material List:
Item | Part Name | Material | Qty |
1 | Body | A351 Gr. CF8M/CF8 | 1 |
2 | End Cap | A351 Gr. CF8M/CF8 | 1 |
3 | Ball | 316SS/304SS | 1 |
4 | Seat | RTFE | 2 |
5 | Body Seal | PTFE | 1 |
6 | Thrust Washer | RTFE | 1 |
7 | Stem Packing Set | PTFE | 1 |
8 | Packing Gland | 304SS | 1 |
9 | Stem | 316SS | 1 |
10 | Belleville Washer | 301SS | 2 |
11 | Gland Nut Lock Washer | 304SS | 1 |
12 | Handle | 301SS | 1 |
13 | Handle Nut | 304SS | 1 |
14 | Handle Cover | Plastic | 1 |
Note:All the data should be confirmed with the approved drawings of manufacturer.
