Thread High Temperature 4 Inch Stainless Steel Ball Valve

Thread high temperature ball valve, generally use PPL seat which could reach 200 degree. For high temperature ball valve, apart from PPL seat, other sealing parts, such as packing, gasket, mostly use graphite material, which could bear high temperature. Three piece high temperature thread ball valve, is widely used in pipelinees, its shape is small, weight is light, zero leakage, fast open and close, easy maintainence. ISO5211 mounting pad also avaible to install electric or pneumatic actuator for remote control. Thread high temperature ball valve is used for cut off medium, can not be used for adjusting medium. It is a very competitive and economic ball valve type to choose.

3PC Thread Ball Valve specifications:

1. Size: 1/4’’~4’’(DN6~DN100)

2. Pressure: 1000WOG

3. Material: A351-CF8, A351-CF8M, A216-WCB

4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999

5. Port: Full Port

6. Seal/Seat: PTFE, RPTFE, PPL, PEEK

3PC Thread Ball Valve design features:

1. High quality investment castings improve dimensional control and reduce porosity; certified material test reports are available upon request.

2. High Temperature Seats and Seals

3. Blow-Out-Proof Stem. Stem is bottom loaded to prevent removal when valve is in service

4. Temperature Range: -20° to 600° F (depending on seats)

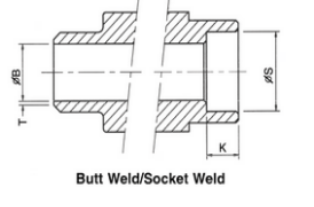

5. Connection ends: NPT/BSP/BSPT/DIN259/DIN2999, Butt Welding, Socket Welding.

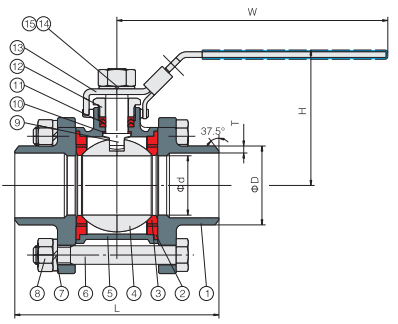

6. Three piece construction, swing-out construction makes the valve easy to repair in line 3PC ball valve delivers exceptional performance and economy in a 3-piece design.

3PC Thread Ball Valve competitive advantage:

1. We have professional inspectors to control every production process to guarantee the quality of our products.

2. 18 Months warranty after delivery.

3. Offer free samples for testing before orders.

4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.

5. 100% leakage testing.

6. 100% inspection & testing for every production process before delivery.

7. Light torque for easy operation & long service life.

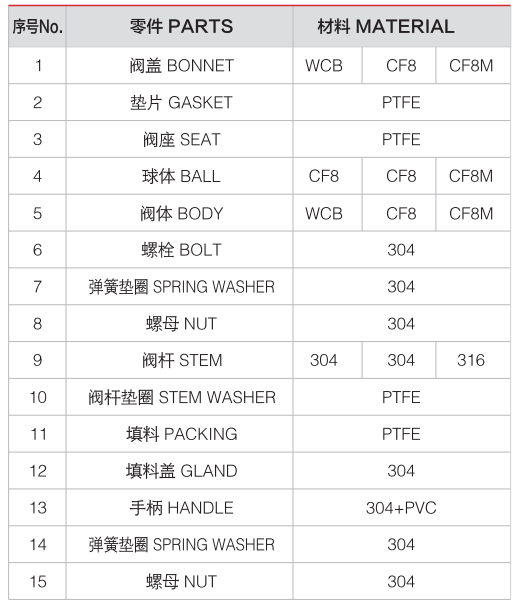

3PC Thread Ball Valve Material List:

Note:All the data should be confirmed with the approved drawings of manufacturer.
