Q41F
-
MSNL

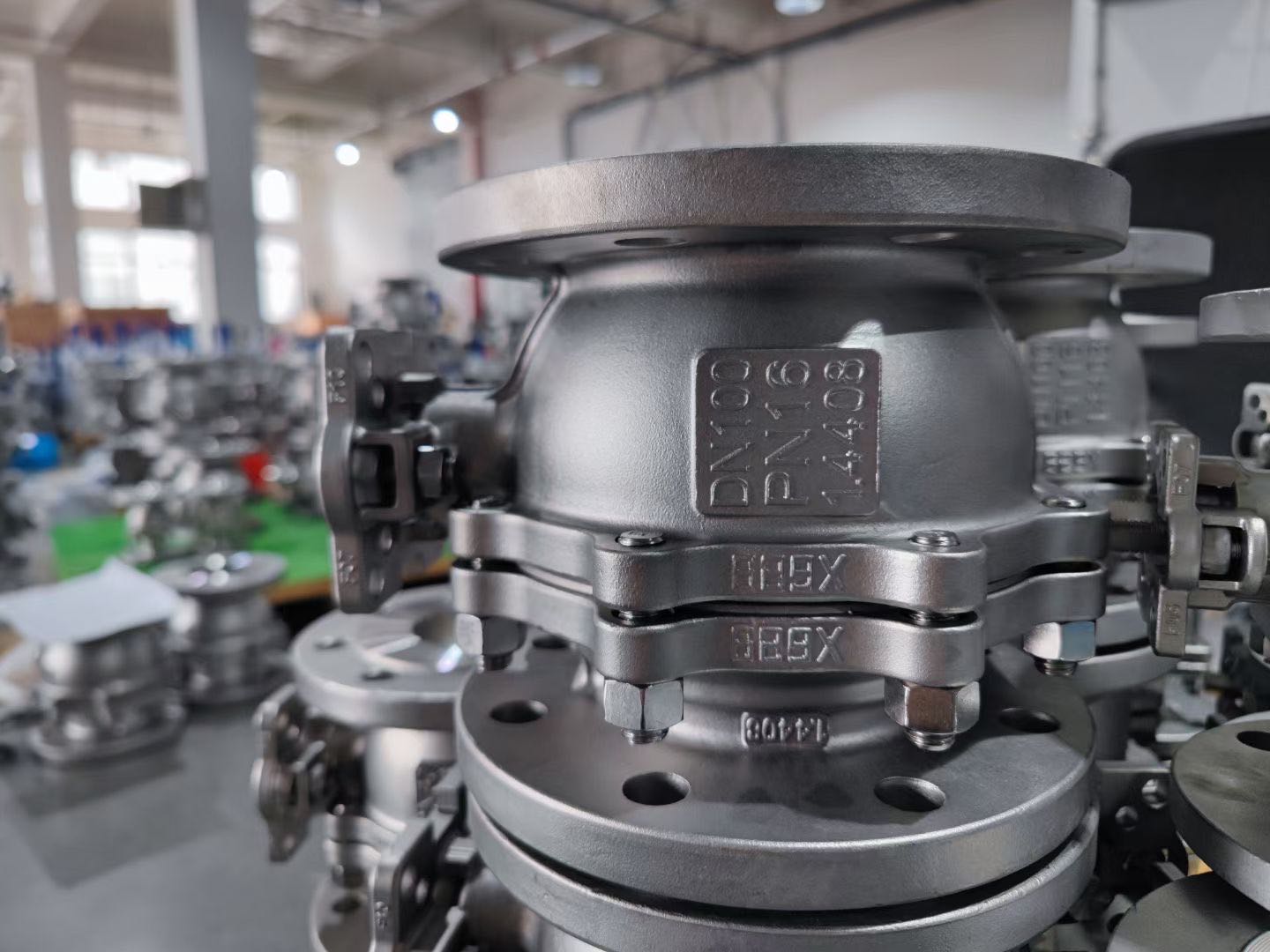

DIN PN16/40 Flange 2PC Stainless Steel Ball Valve with ISO5211 Mounting Pad
Introducing our DIN standard flange stainless steel ball valve with ISO5211 high mounting pad for actuator. This professional-grade product is designed to meet the highest industry standards and deliver exceptional performance in various applications.
Featuring a floating ball design, our ball valve allows for easy adjustment of fluid medium flow. Whether you prefer to operate it with a pneumatic actuator or an electric actuator, this versatile valve is compatible with both options, providing you with flexibility and convenience.
Safety is paramount, which is why our ball valve is equipped with a fire-safe design. This ensures reliable operation even in high-temperature environments, giving you peace of mind.
In addition to its exceptional functionality, our ball valve boasts a light torque, making it effortless to operate. Its easy installation process saves you time and effort, allowing you to quickly integrate it into your system.
Furthermore, the good sealing performance of our ball valve guarantees leak-free operation, preventing any unwanted fluid loss and ensuring efficient and reliable performance.
Choose our DIN standard flange stainless steel ball valve with ISO5211 high mounting pad for actuator for a professional-grade solution that offers superior functionality, safety, and ease of use. Experience the difference in performance and reliability with our high-quality ball valve.
DIN PN16 Stainless Steel Ball Valve design description:
1. Size: 1/2’’~8’’
2. Material: 1.4308, 1.4408, 1.4401, etc.
3. Pressure: PN16/PN25/PN40
4. Floating ball, full bore
5. ISO5211 mounting pad
6. Blow-out proof stem design
7. PTFE/RPTFE seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition)
8. Fire-proof and anti-static design
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
DIN PN16 Stainless Steel Ball Valve technical specification:
1. Design & Manufacture standard: EN13709
2. Face to face dimension standard: EN558
3. Flange standard: EN1092-1
4. Test & Inspect standard: EN12266
DIN PN16 Stainless Steel Ball Valve competitive advantage:
1. GOOD QUALITY
2. RESONABLE PRICE
3. ON-TIME DELIVERY
4. STRICT EXAMINATION
5. SINCERE SERVICE
6. DURABLE IN USE
7. PROFESSIONAL EXPORT EXPERIENCE

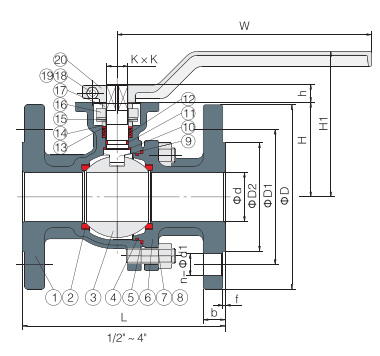

DIN PN16 Stainless Steel Ball Valve material list:
