CHINA J-VALVES Offers Various High-quality I ndustrial Ball Valves
J-VALVES, a distinguished professional ball valve manufacturer rooted in China, takes pride in its extensive product portfolio. Our offerings span a wide range, including trunnion-mounted ball valves, floating ball valves, high-temperature ball valves, high-pressure ball valves, metal-sealed ball valves, ultra-low temperature ball valves, DBB ball valves, Three-way And Four-way Ball Valve, and fully welded ball valves. Each product is a testament to our commitment to precision engineering and reliable performance. Meticulously crafted, they are designed to not only meet but exceed the most stringent industrial demands, ensuring stable operation even under extreme conditions. This enables us to provide our clients with high-value services and makes our valves widely sought-after in industries.
Product Category
Contact Us
Pressure Class: PN16 (1.6 MPa)
Temperature Range: -29℃ to +425℃
Body: ASTM A351 CF8 (304) Stainless Steel
Ball: CF8 / CF8M (304 / 316) Stainless Steel, with optional polished surface finish
Stem: 304 / 316 Stainless Steel
Seat: PTFE, RPTFE, PPL, metal seal (Stellite hardfacing, optional)
Packing: PTFE / Flexible Graphite / Braided Graphite
Flange Face: RF (Raised Face), conforming to EN 1092-1 / DIN 2501
End Connection: Flanged (RF), in accordance with EN 1092-1 / DIN standards
Operation: Pneumatic (standard)
Type: Double-acting / Single-acting (spring return)
Air Supply Pressure: 0.4~0.7 MPa (4~7 bar)
Port Thread: G 1/4" / NPT 1/4"
Stroke: 90° rotary
Switching Time: 2~5 seconds (depending on actuator size and air supply pressure)
Accessory Options: Solenoid valve, limit switch, positioner (4~20 mA), filter regulator, speed control valve
Design Standard: API 608
Inspection Standard: API 598
Face-to-Face Dimension: ASME B16.10
-
J-VALVES
CF8 Stainless Steel Material:The valve body is cast from ASTM A351 CF8 (304) stainless steel, which delivers excellent corrosion resistance, oxidation resistance and hygienic performance. It is suitable for applications involving water, steam, oil products and weakly corrosive media.
Three-Way Flow Passage Design:The valve body is equipped with three ports. By rotating the ball by 90° or 180°, it realizes flow direction switching, diverting or converging of the medium. A single valve replaces the combination of multiple two-way valves, simplifying the pipeline layout.
L-Port: Enables switching between two flow directions (e.g., A→B or A→C), suitable for medium distribution or flow selection.
T-Port: Enables flow diversion, convergence or interconnection of three flow directions (e.g., A→B, A→C, B→C), providing more flexible functions.
Floating Ball Design:Under medium pressure, the ball fits tightly with the downstream seat to form a seal. The sealing effect is enhanced as the medium pressure increases. The structure is simple and the sealing performance is reliable.
Flanged Connection:RF (Raised Face) flanged connection is adopted in accordance with EN 1092-1 / DIN standards. The PN16 pressure rating ensures reliable connection under medium and low pressure conditions.
Pneumatic Actuator:Equipped with double-acting or single-acting (spring return) pneumatic actuator with an air supply pressure of 0.4~0.7 MPa, it achieves fast opening and closing (normally 2~5 seconds) and remote automatic control. It supports a 4~20 mA positioner for modulating control.

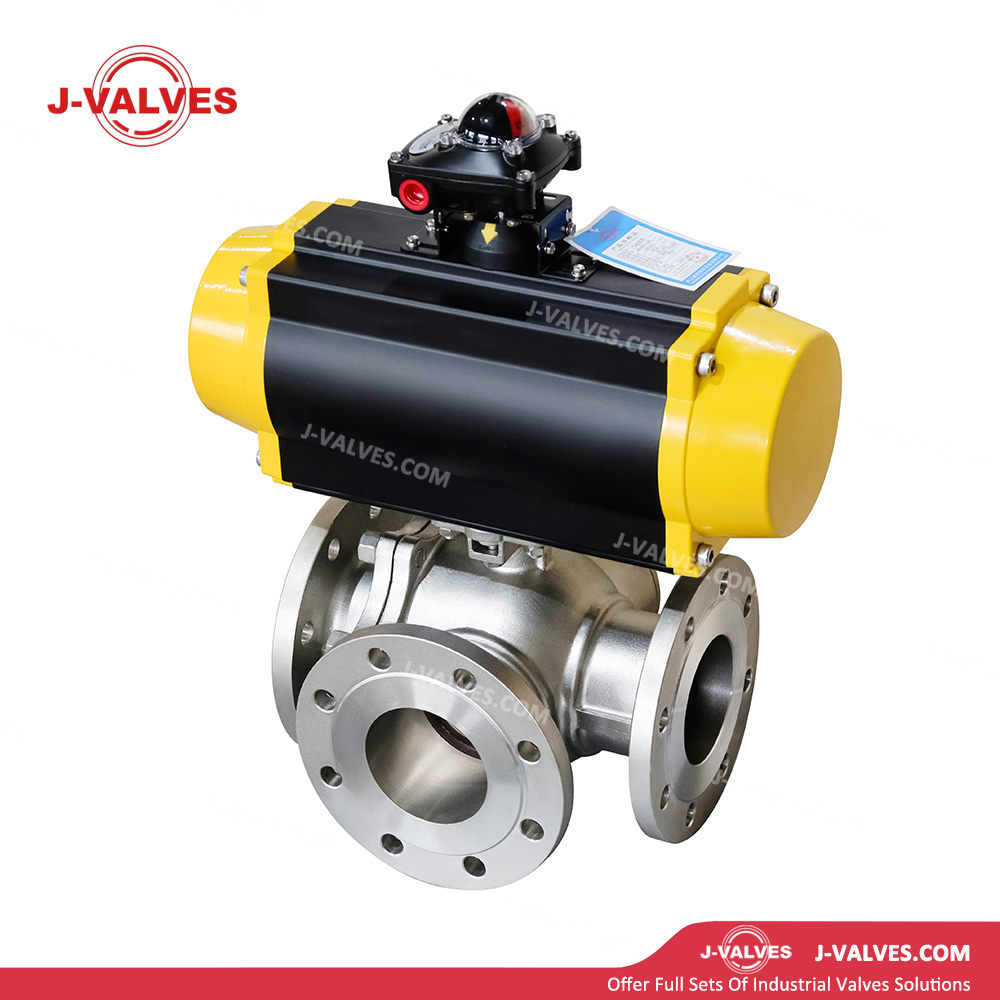

DN100 PN16 CF8 Pneumatic Three Way Flange Floating Ball Valve 3D Diagram
2-3 piece body
Full andreduced bore trunnion mounted
Double block and bleed
Single or double piston effect design anti-blow out stem
Anti-static device
Firesafe to AP1-607/6FA/IS0 10497 springloaded seats
Sealant in jection on request NACE MR-01-75
API Licenses:
API6D
API6DSS
API6A-PSL4
Pressure Class:
ASME 150-2500
API 2000-15000
Service Type:
Standard Temperature:-29℃ to 220℃/-20°F to 428°F
Low Temperature:-46℃ to 150℃/-50°F to 302°F
Cryogenic Temperature: -47℃ to -196℃/-52°F to-320°F
Subsea(Shallow &Deep Water)
Underground
High Temperature:Above 220℃/428°F
J-VALVESSPE can supply a range ofseat types and configurationsto meet specific process needs:
J-VALVES trunnion mounted ball valves standard seat ringsare soft-seated by the use of athermoplastic or elastomeric or Meta
Seats-Tungsten /Chrome carbide /ENP
Single Piston (SPE) , Double Piston effect (DPE) and Combination (SPE x DPE) seats are available.
| Seat Design | Single piston effect (SPE) | Double piston effect(DPE)-DIB 1 | Combined DIB 2 |
| Bi-directional sealing | Yes | Yes | Yes |
| Body-Cavity Self relieving | Yes | No | Yes |
| Double Barrier | No | Yes | Yes (preferred direction only) |
Emergency Seat Injection
Emergency grease in jection fitting forseat rings are standard for6" and larger valves and as option on sizes 2"-4".
An eedle valve, complete with non return check valve is screwed in the bodyand connected to theseatrings.
The emergency sealantinjection can temporarily solve leakage problems, seatsshall be re paired at the first opportunity.
For valves smaller than 6" seat sealant in jection fitting can beprovided in the body cavity
Body Vent & Drain
All J-VALVES SPE TMBV are complete with ascrewed NPT Plug, located in thelower side of the body completedraining of the body cavity.
For valves up to size 4"the drain and vent are combined in oneport.
Extended Stem
Extended stem is supplied for Underground in stalla tion.
The stem seals arelocated inthe body Gland Plate.
The stem extension isnot affected by eventual stem seal failure.
Double Piston Effect
Extended bonnets are available for Cryogenic or high temperature service or special applications requiring this facility features.
