Q11F
MSNL
2PC Stainless Steel Full Port NPT/BSPP Screwed Floating Ball Valve
2PC Stainless Steel Ball Valve specifications:
1. Size: 1/4’’~4’’(DN6~DN100)
2. Pressure: 1000WOG
3. Material: A351-CF8, A351-CF8M, A216-WCB
4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
2PC Stainless Steel Ball Valve design description:
1. Investment casting body
2. Adjustable stem packing
3. Blow out proof stem
4. 100% leakage tested
5. Handle operated
6. Working Temperature: -20℃~250℃
7. Available with ISO5211 direct mounting pad & actuators
8. Available with locking device
9. Other materials upon customer’s request
2PC Stainless Steel Ball Valve competitive advantage:
1. Our products is guaranteed within 18 months after delivery.
2. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.
3. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
2PC Stainless steel ball valve should not be confused with a "ball-check valve", a type of check valve that uses a solid ball to prevent undesired back flow. There are six general body styles of Floating Stainless Steel ball valves: single body, two-piece body three-piece body, split body, top entry, and welded. The difference is based on how many the pieces of the valve—especially the casing that contains the ball itself—are manufactured and assembled. Screwed 2PC Ball Valve operation is the same in each case. In addition, there are different styles related to the bore of the ball mechanism itself.

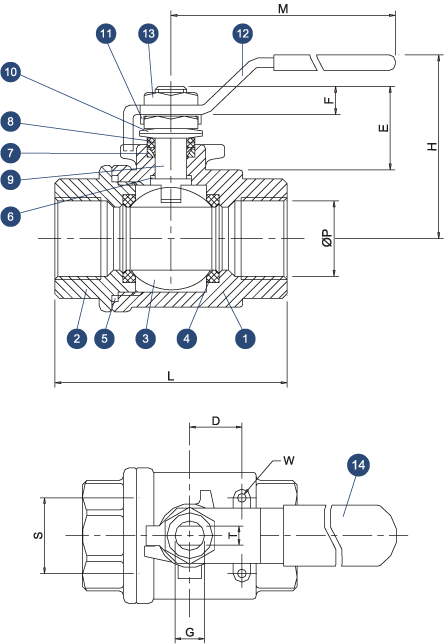

2PC Stainless Steel Ball Valve Material List:
Item | Part Name | Material | Qty |
1 | Body | A351 Gr. CF8M/CF8 | 1 |
2 | End Cap | A351 Gr. CF8M/CF8 | 1 |
3 | Ball | 316SS/304SS | 1 |
4 | Seat | RTFE | 2 |
5 | Body Seal | PTFE | 1 |
6 | Thrust Washer | RTFE | 1 |
7 | Stem Packing Set | PTFE | 1 |
8 | Packing Gland | 304SS | 1 |
9 | Stem | 316SS | 1 |
10 | Belleville Washer | 301SS | 2 |
11 | Gland Nut Lock Washer | 304SS | 1 |
12 | Handle | 301SS | 1 |
13 | Handle Nut | 304SS | 1 |
14 | Handle Cover | Plastic | 1 |
Note:All the data should be confirmed with the approved drawings of manufacturer.
