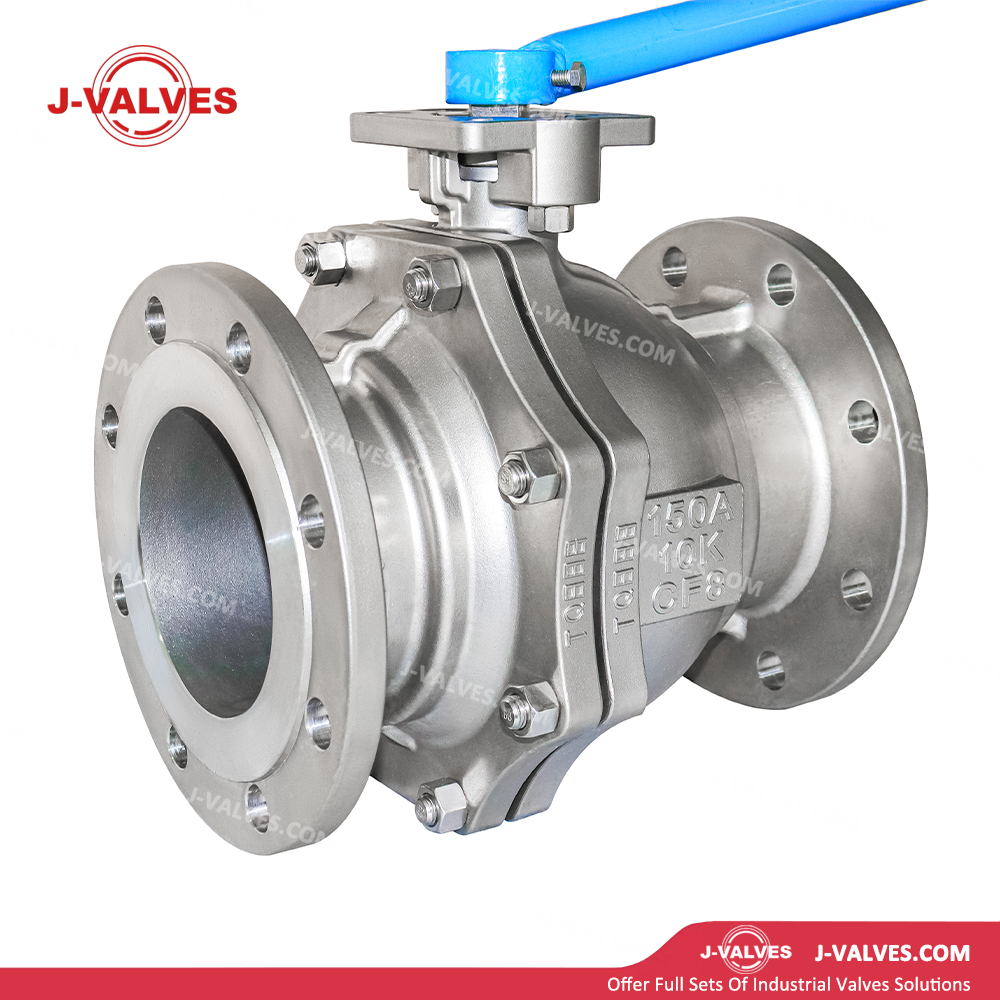

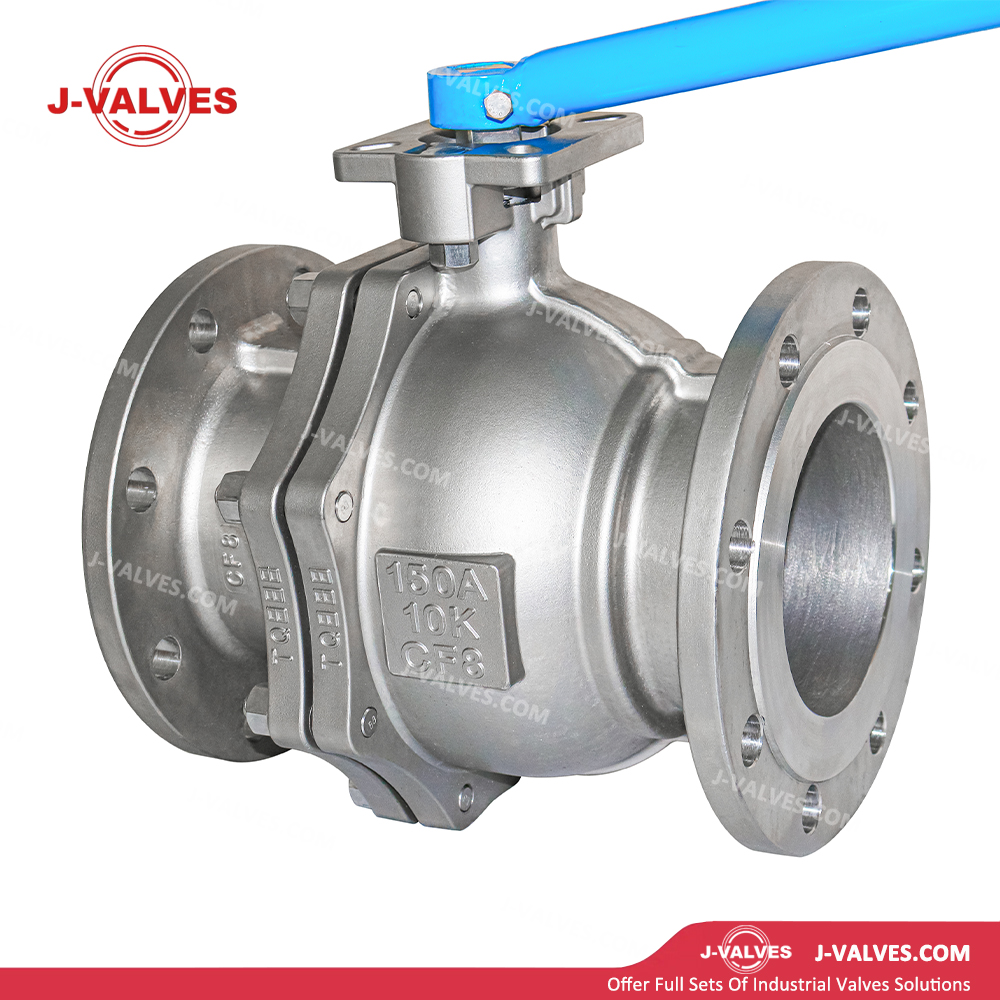

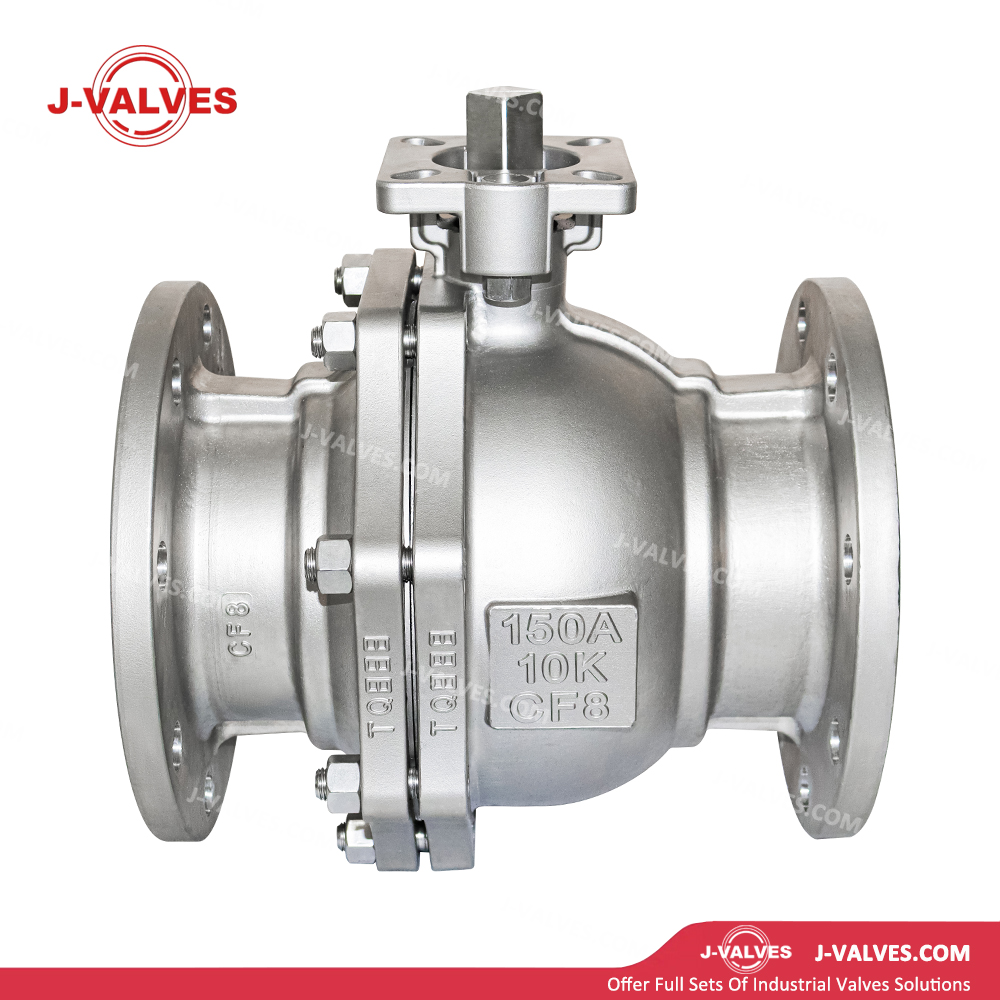

150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
150A 10K CF8 Stainless Steel Floating Ball Valve JIS Standard Production
Nominal Size: 8A ~ 350A (DN8 ~ DN350)
Pressure Class: 5K ~ 180K (PN10 ~ PN420)
Temperature Range: -20℃ ~ +180℃ (Standard Type); Optional high-temperature type up to +230℃
Materials:
Valve Body: CF8 (SCS13 / 304 Stainless Steel)
Ball: CF8 (SCS13 / 304 Stainless Steel)
Valve Stem: SUS304 Stainless Steel
Sealing Material: PTFE, RPTFE, PPL
Connection Type: Flange Connection (JIS B2220 10K RF)
Operation Mode: Manual (Lever / Worm Gear), Pneumatic, Electric
Design Standards: JIS B2071, JIS B2081, ASME B16.34
Test Standards: JIS B2003, API 598
Face-to-Face Dimension: Compliant with JIS B2002 / ASME B16.10
Wall Thickness Standard: Compliant with JIS B2001

  • J-VALVES

库存： 0
Inquire
Add to Basket

Ball valves

  • CF8 Stainless Steel Material: The valve body is cast from JIS G5121 SCS13 (CF8/304) stainless steel, featuring excellent corrosion resistance, oxidation resistance and hygienic performance, suitable for a variety of corrosive media.

  • Floating Ball Design: The ball can float freely under medium pressure and closely fit with the valve seat to form a reliable downstream sealing effect with stable sealing performance.

  • Two-Piece Design: The valve body is split into two parts, facilitating maintenance and replacement of internal components, and reducing downtime and maintenance costs.

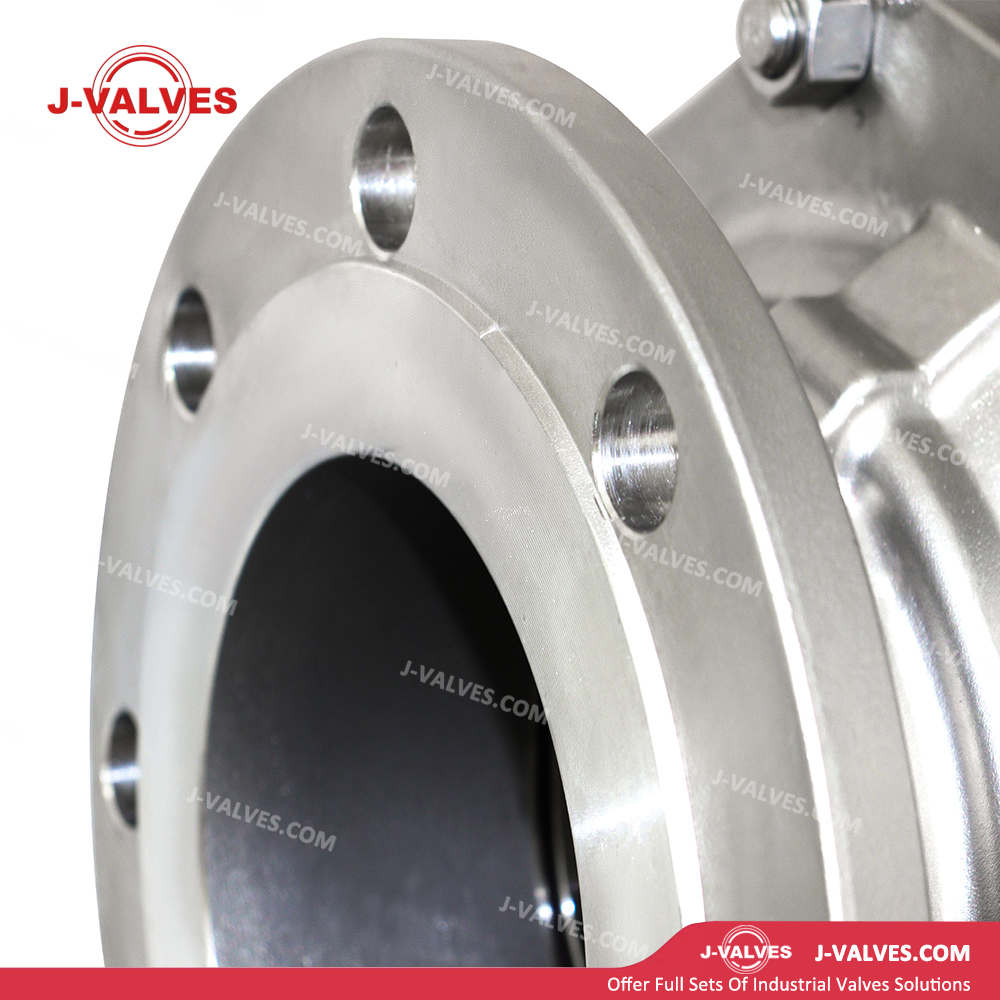

  • Flange Connection: Adopts JIS B2220 10K RF flange connection, fully compatible with JIS standard piping systems, ensuring installation reliability and tightness.

  • Anti-static Device: Built-in anti-static device effectively prevents static accumulation and reduces fire and explosion risks, ideal for flammable and explosive media.

  • Anti-blowout Stem Design: The valve stem adopts an anti-blowout structure to guarantee operational safety under abnormal pressure conditions.

  • Fire Safe Design: Compliant with API 607 standard. The valve can maintain sealing performance even under fire conditions to prevent medium leakage.

  • Compact Structure: Small overall size and light weight, easy for installation and integration into existing JIS standard pipeline systems.

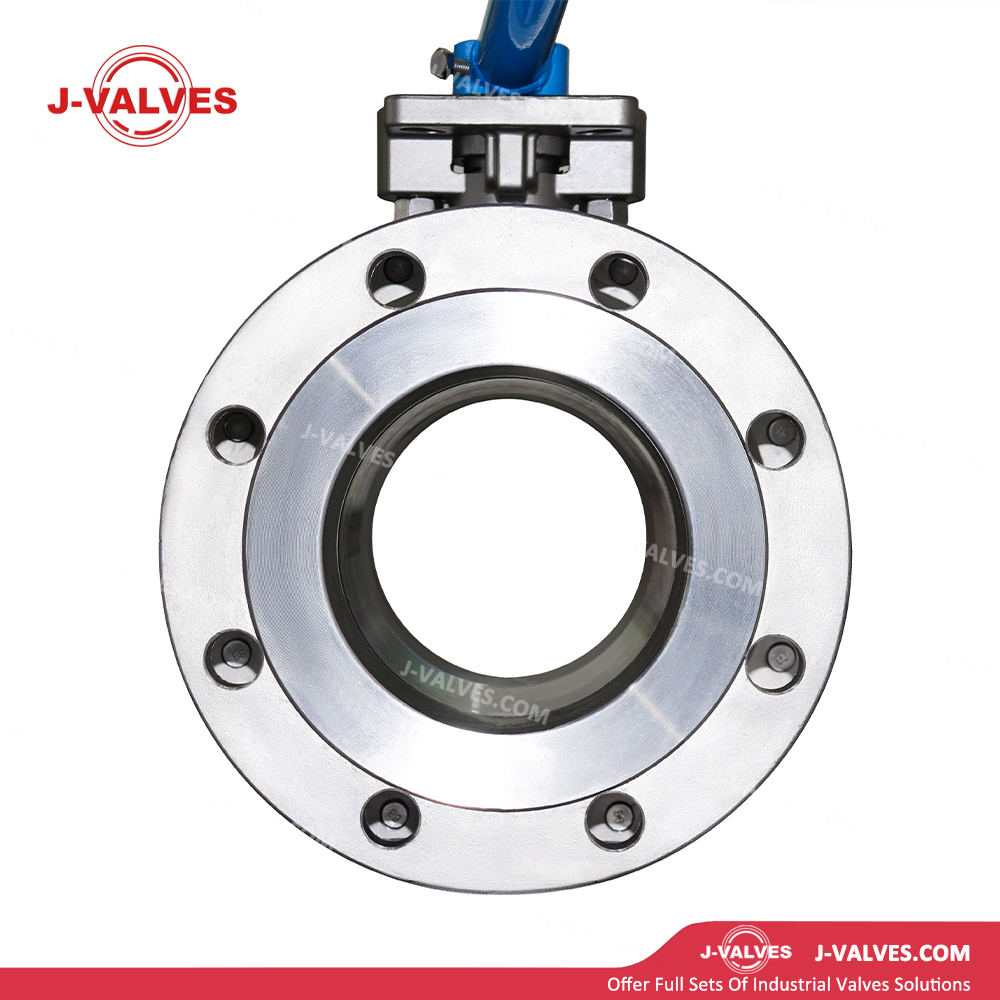

  • Full Bore Design: 150A full bore structure with low flow resistance and high flow capacity, convenient for pipeline cleaning and pigging operations.

  • 2-3 piece body

  • Full andreduced bore trunnion mounted

  • Double block and bleed

  • Single or double piston effect design anti-blow out stem

  • Anti-static device

  • Firesafe to AP1-607/6FA/IS0 10497 springloaded seats

  • Sealant in jection on request NACE MR-01-75

  • API Licenses:

    API6D

    API6DSS

    API6A-PSL4

  • Pressure Class:

    ASME 150-2500

    API 2000-15000

  • Service Type:

    Standard Temperature:-29℃ to 220℃/-20°F to 428°F

    Low Temperature:-46℃ to 150℃/-50°F to 302°F

    Cryogenic Temperature: -47℃ to -196℃/-52°F to-320°F

    Subsea(Shallow &Deep Water)

    Underground

    High Temperature:Above 220℃/428°F

    J-VALVES SPE can supply a range ofseat types and configurationsto meet specific process needs:

    J-VALVES trunnion mounted ball valves standard seat ringsare soft-seated by the use of athermoplastic or elastomeric or Meta

    Seats-Tungsten /Chrome carbide /ENP

    6

    Single Piston (SPE) , Double Piston effect (DPE) and Combination (SPE x DPE) seats are available.

    7Seat Princlple

    Two independent seat rings grant the sealing, barrieragainst the line pressure actingon the upstream and downstreamsides of the valve which allows the valve tobe bidirectional.


    A set ofcoil springs acting, between the upstream side ofeach seatring,andthe body,generate an uniform thrust on theseat which push the same against the ball and grant the sealingfeature with no orverylow pressureinthe line,when the line pressure increasethe thrust actingon theseat increases proportionally and the sealing leatureis granted throughout the fullpressure range.


    The J-VALVES SPE trunnion mounted ball valves are available with Double

    Block & Bleed in dependent oftheseat type.

    Valve seating variations

    Seat DesignSingle piston effect (SPE)Double piston effect(DPE)-DIB 1Combined DIB 2
    Bi-directional
    sealing    		YesYesYes
    Body-Cavity
    Self relieving    		YesNoYes
    Double BarrierNoYesYes (preferred direction only)

    8Single Piston Effect

    Single piston effect (SPE) is the stand ard feature for theseat rings of the J-VALVES SPE trunnion mounted ball valves.


    On a SPE seat ring:

    The pressure ac tingon the upstream side ofthe seat ringgenerates aforce which push theseattowards the ball.The pressure actingon the downstream side ofthe seatring generates a force which pull theseatring away fromthe ball.


    Anyoverpressure which may be generated by the thermal expansion of the fluid trapped in thebodycavity with the ballin fully closed position, will beautomatically dischargedinthe line on the lower pressure side.


    9Double Piston Effect

    Double piston effect(DPE) is a stand ard feature fortheseat rings ofthe J-VALVES trunnion mounted ball valves & recommended forwelded body valves. Ona DPE seat ring, both the pressure acting on the upstream sideof theseatring andthe pressure acting on thedownstreamside of the  seatring, generatea forcewhich push the seattowards the ball.


    With th is type ofseat ring,the eventual over press ure whichmay be generated by the thermal expansion ofthe fluidtrappedinthebodyeavitywith theball in fullyclosed position,can be discharged by the use of:

    An external safetyrelief device.

    The Double Piston Effect grants a double sealingfeature,iftheupstreamseat ringisdamaged, thedown stream seatgrant the sealingfeature of the valve.


    10

    Stem

    • The stem is independent from the ballandis not subject to theside load generated by the line pressure acting on the ball.

    • Two O-Rings and agraphite gasket grant a triple barrierand thefire safe sealing on the stem.

    • Abuilt instemsealant injectionsystemis provided as

      a standardfeature.

    • The standard antIblow-out eature ofthe stemis

      inaccrdance to API6D and is granted by the bodvcover. By removing the gland bushing the upper stem gasket can be replaced for

      maintenance with thevalve in service.

    11

    Ball

    • Inside entry valves 4" and smaller the ball is kept in position by an upper and alower trunnion,housed

      in the primary body.

    • Inside entry valves 6" and larger the ballis kept in position by an upper and alower trunnion, housed

      in two bearing blocks

    • Both the trunnions absorb the side load generated by the line pressureacting on the ball,without affecting the rotation of the stem

    • Large diameter trunnions minimize the torque required to operatethe valve.

    • The trunnion srotateinto metalbacked

      self-lubricating bearings.


    12

    Emergency Seat Injection

    • Emergency grease in jection fitting forseat rings are standard for6" and larger valves and as option on sizes 2"-4".

    • An eedle valve, complete with non return check valve is screwed in the bodyand connected to theseatrings.

    • The emergency sealantinjection can temporarily solve leakage problems, seatsshall be re paired at the first opportunity.

    • For valves smaller than 6" seat sealant in jection fitting can beprovided in the body cavity

    13

    Body Vent & Drain

    • All J-VALVES SPE TMBV are complete with ascrewed NPT Plug, located in thelower side of the body completedraining of the body cavity.

    • For valves up to size 4"the drain and vent are combined in oneport.

    14Double Block and Bleed

    This feature permits to check the integrity of the seats without interfering withthe operation ofthe line andthe replacement of the upper stem seal with the valve inline. The body cavity can be drained and depressurized with the ball infully closed position, this feature which is available with all typeof seats(SPE,DPE or Combination) permits.


    15

    Extended Stem

    Extended stem is supplied for Underground in stalla tion.

    The stem seals arelocated inthe body Gland Plate.

    The stem extension isnot affected by eventual stem seal failure.

    16

    Double Piston Effect

    Extended bonnets are available for Cryogenic or high temperature service or special applications requiring this facility features.


    18Low Emission Stem Sealing

    J-VALVES SPE tandard stem sealing arrang ement offers Low Emission using a tri ple barrier arrangement certified to the latest lS0 15848 standard.

    Anti-Blowout ProofStem

    Stem is retained by the cover, the gland plate can beremovedwithvaweinfullyclosed position with the bodycavityvented toatmosphere. The upper stem Oring can be replaced formaintenance with valve in service

    Anti-Static Device

    All J-VALVES SPE Trunnion Mounted Ball Valves,areequippedwith an anti- static devicetoassurethetotalelectricalconductancebetween all metalparts of the valves.


    19

    Fire Safe

    All J-VALVES complete range of Side entry,Top Entryand Welded body ball valves are certifiedfire safe according to AP1607/1S0 10497 - API6 FA.


    20Valves Ends

    Valves are available with:

    Flan ged Ends (RF Or RTJ) tO ASME B16.5 0r ASME B16.47 Welding Ends to ASME B16.25Hub EndsCustomerspecific

    Bore

    Valve canbe supplied with Fullor Reducedbore in accordance with table lofAP| 6D,unless other wiserequired oradvised. Valveswith special Bore are available.

    Face to Face/End to End

    Dimensions are in accordance withAP| 6Dand ASME B16.10.Specialdimensions areavailable.

    Painting

    Standard external painting is Sky Blue Ral5015,and systemis suitable to protect thevalve external suraceduringtransportationandstorage.Othertypesofpaintingareavailableon request.

    21Valve Transition Pieces

    Transition pieces (pups), can be supplied forWeldingEnds Valwes to facilitate the welding ofthe valve totheline for:

    Material compatibility.


    Exces sive difference in strengthsand thickness betweenvalve closures and line pipe (limit is 1.5 times).


    Avoiding damages to the valve soft seals.Important note: When transition pieces are supplied bythe customers, itisimperative to verifyif the strengthofthe same, suitable to undergothe hydro- test ofthevalve without damages ordeformations(1.5 times thevalve maximum rated pressure)


    22Welded overlays,with Stainless Steel, Duplexand Inconel are available on request for:

    All wetted parts

    Body wetted parts

    Seat ringshousing pocket

    Stem sealingarea

    Balls

    Types of Floating Ball Valves Available

    2PC Flanged Floating Ball Valve, 3PC Flanged Floating Ball Valve, Threaded End Floating Ball Valve, Socket Weld (SW) Floating Ball Valve, Butt Weld (BW) Floating Ball Valve, Three-Way Floating Ball Valve, High Platform Floating Ball Valve, Metal-Seated Floating Ball Valve, Cryogenic Floating Ball Valve, Forged Floating Ball Valve, Stainless Steel Floating Ball Valve, Cast Floating Ball Valve, High-Pressure Floating Ball Valve

    Ball valve types.pdf


    J-VALVES Ball Valves Size Data Sheet.pdf

    J-VALVES Ball Valves Size Data Sheet(1)J-VALVES Ball Valves Size Data Sheet(2)J-VALVES Ball Valves Size Data Sheet(3)J-VALVES Ball Valves Size Data Sheet(4)J-VALVES Ball Valves Size Data Sheet(5)J-VALVES Ball Valves Size Data Sheet(6)
