1PC Floating Threaded Ends Stainless Steel Ball Valve

1PC Female Screwed Floating 1000WOG Stainless Steel Ball Valve

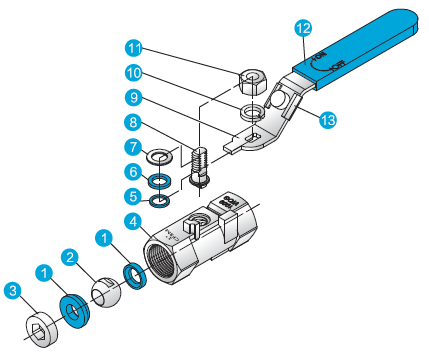

Structural Features

• High-Quality Stainless Steel Material: The valve body, ball, and stem are all made of 304 or 316 stainless steel, featuring high strength and good corrosion resistance. They can resist erosion from various chemical media, extending the valve's service life.

• Floating Ball Design: The ball floats freely under medium pressure, closely fitting the valve seat to form an excellent sealing effect, ensuring no leakage risk.

• Threaded End Connection: Adopts threaded end connection in compliance with ANSI B1.20.1 standards, offering easy installation and good sealing performance.

• Compact Design: Small in size and light in weight, it is easy to install and integrate into existing systems, saving space.

• Quick Opening/Closing: The valve can be opened or closed with a 90-degree rotation via a handle or actuator, ensuring simple and fast operation.

• Blowout-Proof Stem Design: The stem features a blowout-proof design to ensure operational safety and prevent the stem from blowing out due to accidental pressure increases.

• Adjustable Packing: The packing is adjustable to ensure long-term sealing performance and reduce maintenance costs.

Technical Parameters

• Size Range: 1/4" to 2"

• Pressure Rating: Maximum working pressure up to 1000 PSI

• Temperature Range: -20℃ to +180℃

• Materials:

• Valve Body: 304, 316 stainless steel

• Ball: 316 stainless steel

• Stem: 316 stainless steel

• Sealing Material: PTFE

• Connection Type: Threaded connection (NPT, BSPT, etc.)

• Operation Mode: Manual (handle operation)

• Design Standard: ASME B16.34

• Testing Standard: API 598

Application Scenarios

• Oil and Gas Industry: Used in oil and gas field exploration, gathering, transportation, and processing systems to ensure reliable isolation and control of media.

• Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.

• Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure media isolation and cleanliness in the drug manufacturing process.

• Food and Beverage Industry: Meets food-grade requirements, used in pipeline systems for food and beverage production to ensure hygiene and safety.

• HVAC: Utilized in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.

• General Industrial Use: Suitable for controlling and isolating media such as water, oil, and gas.
