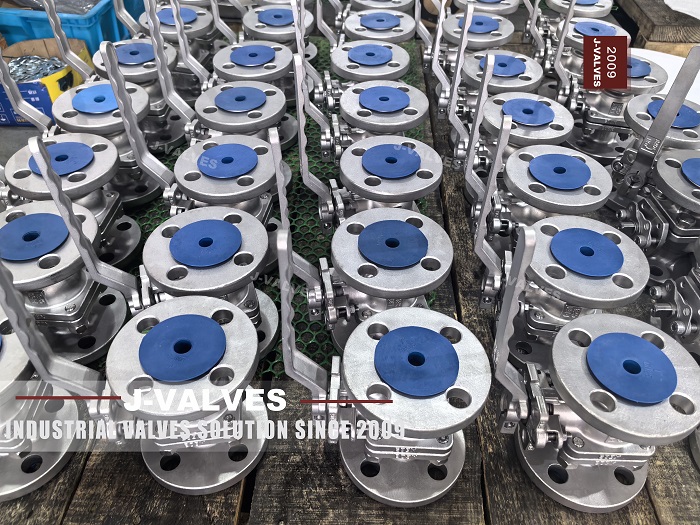

In the complex environment of industrial production, the sealing performance of valves is like a solid line of defense, safeguarding the stable operation and safe work of systems. The 1" 150LB CF8 floating ball valve, with its excellent sealing performance, is highly favored in various fluid control systems. So, how to ensure that this type of ball valve always maintains outstanding sealing performance? The following will provide a detailed analysis from multiple dimensions.
I. Ingenious Design
(1) Valve Seat Sealing
The elastic valve seat is made of high-quality imported materials to create an elastic sealing structure. Under low-pressure working conditions, the contact area between the valve seat and the valve ball is small, and the specific pressure at the contact point is large, closely fitting the ball to effectively prevent medium leakage. Meanwhile, the self-compensating valve seat is ingeniously designed. Through preloading with a cylindrical spring or disc spring, it endows the valve seat with an automatic compensation function. As time goes by, the pre-tightening force of the spring can automatically compensate for the wear of the valve seat, ensuring that the valve seat and the ball are always in close contact and continuously maintaining excellent sealing performance. It is like equipping the valve with an "intelligent guardian" that always copes with wear challenges.
(2) Packing Sealing
The stem adopts a multi-layer sealing structure. The V-shaped sealing packing, together with the O-ring or stem sleeve in the middle and the thrust washer at the lower end, jointly builds a solid sealing line of defense. Under the combined action of the compaction force of the packing gland and the medium force in the pipeline, this structure can effectively prevent the medium from leaking from the gap between the stem and the valve body. The packing gland tightly presses the packing on the stem, and the O-ring and thrust washer further enhance the sealing effect, just like putting a tight "protective suit" on the stem to resist medium invasion in an all-round way.
II. Excellent Material Selection
(1) Valve Body Material
The CF8 stainless steel material stands out for its excellent corrosion resistance and mechanical properties. It can easily resist the erosion of various media such as acids and alkalis. In the harsh working conditions of the chemical industry, valves made of CF8 material can resist the corrosion of chemical media for a long time, safeguard the integrity of the valve body, and lay a solid foundation for the stability of the sealing structure. Compared with CF3M (316L stainless steel), CF8 shows a more outstanding cost performance in general working conditions, but CF3M has stronger corrosion resistance in a strong corrosive medium environment, and materials can be flexibly selected according to actual working conditions.
(2) Sealing Material
The soft sealing material polytetrafluoroethylene (PTFE) and its enhanced types, with excellent corrosion resistance, aging resistance, and low friction coefficient, provide excellent sealing effects for ball valves, while reducing wear during the opening and closing process and effectively extending the service life of the sealing surface. In high-temperature and high-pressure working conditions, metal sealing materials after hardening treatment come into play. Their excellent high-temperature and high-pressure resistance performance ensures that the ball valve can still maintain reliable sealing in harsh working conditions and guarantees production safety. Accurately matching sealing materials under different working conditions is crucial. In a strong corrosive medium environment, CF3M can avoid the valve body being corroded; when the medium has particle scouring, the ball with hard alloy surfacing can improve surface hardness and wear resistance; under high-temperature working conditions, the metal sealing surface can guarantee sealing performance, make the thermal expansion coefficients of various components match, and prevent gaps from appearing due to expansion differences and damaging the seal.
III. Standard Installation and Commissioning
Installation and commissioning are key links to ensure sealing performance. Before installation, the pipeline must be thoroughly cleaned to prevent impurities from mixing into the sealing surface of the ball valve and affecting the sealing effect. When connecting flanges, bolts should be tightened symmetrically and evenly to avoid deformation of the valve body due to uneven force, which may damage the sealing performance. In the commissioning stage, the ball valve needs to be opened and closed multiple times, the sealing situation should be carefully checked, and pressure tests should be carried out. For example, use a medium with 1.1 times the working pressure to hold pressure for a period of time and observe whether there is leakage. If problems with the seal are found, the pre-tightening force of the valve seat should be adjusted in a timely manner or check whether the sealing surface is damaged to ensure that the ball valve reaches the best sealing state before official commissioning, so that the sealing performance can be fully verified in actual combat.
IV. Meticulous Daily Operation and Maintenance
Daily maintenance is an important guarantee for extending the sealing life of the ball valve. Regularly check the sealing surface to see if there are signs of wear and corrosion. Once slight damage is found, grinding and repair should be carried out immediately to avoid small problems turning into major failures. At the same time, closely monitor the condition of the sealing packing. If aging and leakage occur, it needs to be replaced in a timely manner. In addition, it is necessary to strictly prevent the ball valve from operating under conditions beyond the design working conditions, such as extremely high pressure, temperature, or excessively strong medium corrosiveness. These may quickly damage the sealing performance and shorten the service life of the ball valve. Through meticulous daily operation and maintenance, the maintenance cost can be effectively reduced, the risk of production interruption caused by leakage can be reduced, the continuous and stable operation of the system can be guaranteed, and greater economic benefits can be created for enterprises.
In conclusion, ensuring the sealing performance of the 1" 150LB CF8 floating ball valve is a systematic project, covering multiple links such as material selection, structural design, installation and commissioning, and daily operation and maintenance. Only by achieving excellence in each link can this type of ball valve shine brightly in the broad stage of industrial production, safeguard the safe and efficient operation of enterprise production, and become your trustworthy industrial fluid control.
