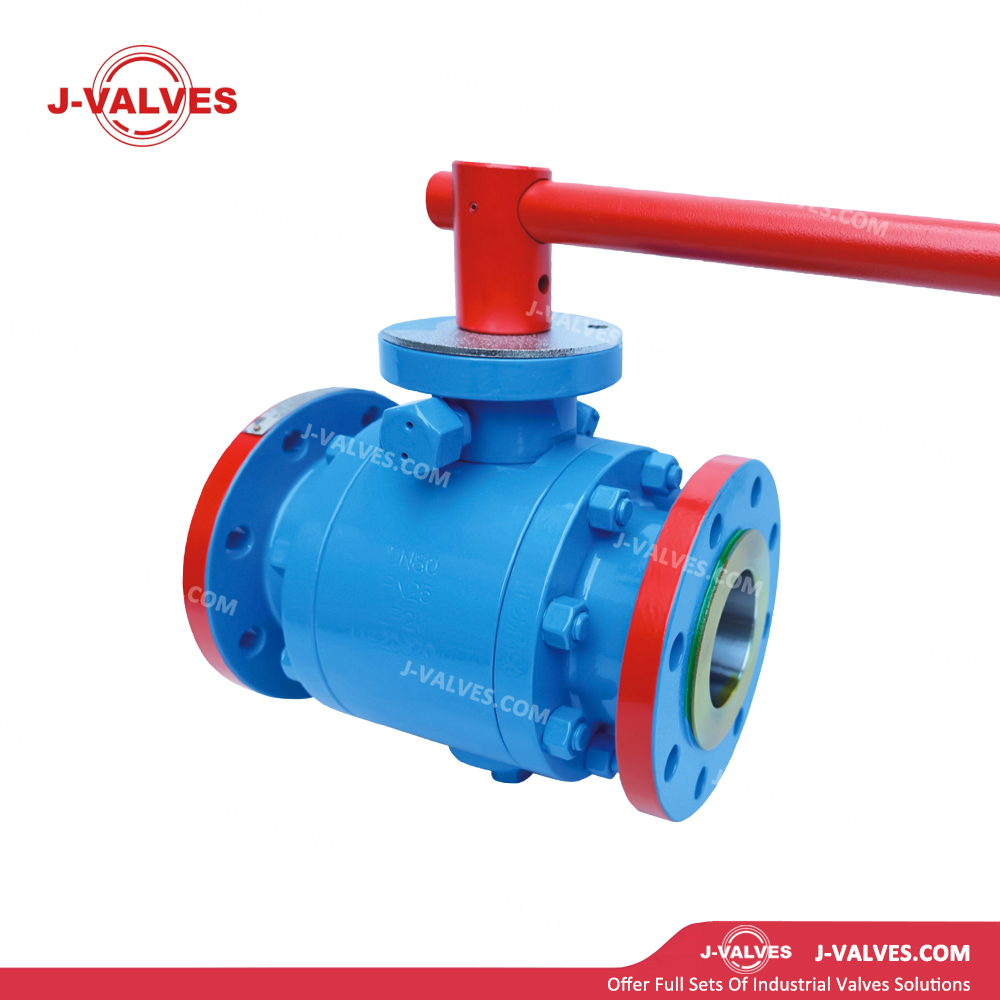

DN80 PN25 3PC Forged Steel Trunnion Flanged Ball Valves

Structural Features

• Three-Piece Design: The valve body is divided into three parts, facilitating maintenance and component replacement, reducing downtime, while enhancing the overall strength and sealing performance of the valve.

• Forged Steel Material: The valve body, ball, and stem are made of high-quality forged steel, which has high strength and good corrosion resistance, capable of resisting erosion from various chemical media and extending the valve's service life.

• Trunnion Flange Design: The unique trunnion flange design provides higher installation flexibility and stability, facilitating valve installation and maintenance.

• Metal Sealing: The metal sealing design is suitable for medium and high-pressure environments, offering excellent sealing performance and maintaining zero leakage even under extreme working conditions.

• Fire-Safe Design: Compliant with API 607 standards, the valve maintains sealing performance even in case of fire, preventing medium leakage and ensuring system safety.

• Anti-Static Device: A built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion, and is particularly suitable for controlling flammable and explosive media.

• Compact Design: Small in size and light in weight, it is easy to install and integrate into existing systems, saving space.

• Multiple Operation Modes: Can be equipped with manual, pneumatic, electric, or hydraulic actuators to achieve remote automated control.

Technical Parameters

• Nominal Diameter: DN80

• Pressure Class: PN25

• Temperature Range: -29℃ to +425℃

• Materials:

• Valve Body: Forged steel (A105)

• Ball: Stainless steel (304/316)

• Stem: Stainless steel (304/316)

• Sealing Material: Metal sealing (stainless steel, cemented carbide, etc.)

• Connection Type: Trunnion flange connection (compliant with ASME B16.5 standards)

• Operation Mode: Manual, pneumatic, electric, hydraulic

• Design Standards: API 6D, ASME B16.34

• Testing Standards: API 598

• Fire-Safe Design: API 607

• Applicable Media: Oil, natural gas, water, steam, chemical media, etc.

Application Scenarios

• Oil and Gas Industry: Used in oil and gas field exploitation, gathering, and processing systems to ensure reliable isolation and control of media.

• Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.

• Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure medium isolation and cleanliness in the drug manufacturing process.

• Food and Beverage Industry: Meets food-grade requirements and is used in pipeline systems for food and beverage production to ensure hygiene and safety.

• HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.

• General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas.

Advantages and Value

• High Reliability: Forged steel material and three-piece structure ensure stable operation of the valve under high-pressure and medium-to-high-temperature environments, reducing maintenance frequency and downtime.

• High Safety: Fire-safe and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.

• Automated Operation: Multiple actuator options enable remote control and automated operation, improving system flexibility and safety.

• Easy Installation and Maintenance: The trunnion flange connection simplifies the installation process and facilitates maintenance and repair.

• Wide Applicability: Multiple material options and a broad range of pressure and temperature ranges enable it to adapt to various complex working conditions and medium characteristics.
