In industrial systems where pressure is high, pipe sizes are large, and operation is continuous, a valve must do more than just open and close. It must operate smoothly, seal reliably, and last for years with minimal maintenance. That is exactly why the trunnion mounted ball valve has become a preferred solution in oil and gas, petrochemical, power generation, and other demanding applications.
Compared with conventional floating ball valves, a trunnion mounted ball valve offers three major advantages: lower operating torque, more stable sealing performance, and longer service life.
I. What Is a Trunnion Mounted Ball Valve?

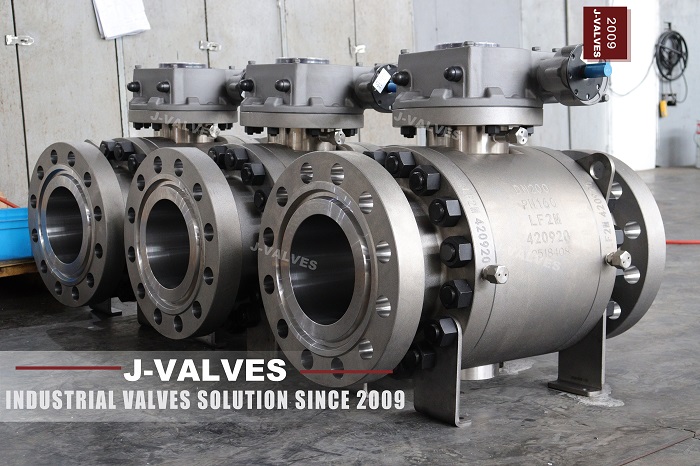

A trunnion mounted ball valve uses a fixed ball supported by upper and lower trunnions. Instead of floating freely under line pressure, the ball is mechanically anchored and rotates around its axis.
This structural design helps distribute the load more evenly across the valve components. As a result, the valve is better suited for high-pressure, large-diameter, and critical service conditions.
II. Why Does It Require Lower Torque?
One of the biggest advantages of a trunnion mounted ball valve is reduced operating torque. Because the ball is supported from both ends, line pressure does not force the ball excessively against the seats.
This reduces friction during opening and closing, making the valve easier to operate. The benefits are clear:
Smaller actuators can often be used.
Manual operation becomes easier.
The valve performs more consistently under high pressure.
For automated pipeline systems, lower torque also means lower load on the actuator, improved reliability, and better control performance.
III. Why Is the Sealing More Stable?
Stable sealing is another key reason engineers choose trunnion mounted ball valves. In many designs, the seat is energized by line pressure, helping it maintain consistent contact with the ball.
Because the ball is fixed in position, sealing surfaces experience more uniform contact and less uneven wear. This helps reduce leakage risk over long operating cycles.
Many trunnion mounted ball valves also support features such as double-block-and-bleed design, seat injection, fire-safe construction, and anti-static protection, depending on the application.
In critical systems where leakage can affect safety, efficiency, or compliance, stable sealing is not just a benefit. It is a requirement.
IV. Why Is the Service Life Longer?
Longer service life comes from a more balanced design. Since the ball is supported and the seat load is better controlled, wear is reduced over time.
This is especially important in applications such as:
High-pressure pipelines
Large-diameter transmission lines
Systems with frequent cycling
Media containing particles or mild erosion
Continuous-duty industrial operations
Compared with standard ball valves, trunnion mounted ball valves are less likely to suffer from early seat wear, rising torque, or sealing degradation. That means fewer shutdowns, less maintenance, and lower total cost of ownership.
V. Where Are Trunnion Mounted Ball Valves Used?
These valves are widely used in industries that demand reliability and performance, including:
Oil and gas transportation
Refining and petrochemical plants
Power plants and steam systems
Metallurgy and process pipelines
Long-distance transmission lines
When a project requires low leakage, long-term durability, and stable operation, a trunnion mounted ball valve is often the smarter choice.
VI. How to Choose the Right Trunnion Mounted Ball Valve
When selecting a valve, it is important to evaluate more than just size and pressure rating. Key factors include:
Nominal diameter and pressure class
Process media and temperature
Body material and corrosion resistance
Seat and sealing material
Actuation type and torque requirements
Fire-safe, anti-static, or low-emission requirements
The best performance comes from matching the valve design to the actual service conditions.
VII. Why Do More Projects Choose It?
Although the initial investment may be higher than that of a floating ball valve, the long-term value is often much better. Lower torque reduces actuator stress, stable sealing reduces leakage risk, and longer service life lowers maintenance and downtime costs.
For projects focused on reliability, safety, and lifecycle cost, the trunnion mounted ball valve is not simply a premium option. It is a practical and cost-effective solution.
VIII. Conclusion
The trunnion mounted ball valve stands out because it solves three critical operational challenges at once: lower torque, more stable sealing, and longer service life. For demanding industrial systems, these advantages translate directly into safer operation, better efficiency, and lower total cost.
If your project involves high pressure, large diameter, or severe service conditions, this valve type deserves serious consideration.
FAQ
1. What is the difference between a trunnion mounted ball valve and a floating ball valve?
A trunnion mounted ball valve uses a fixed ball supported by trunnions and is better for high-pressure, large-diameter service. A floating ball valve relies on line pressure to press the ball against the seat and is more suitable for smaller sizes and lower pressures.
2. Why does a trunnion mounted ball valve need less torque?
Because the ball is mechanically supported, friction is lower and line pressure is distributed more evenly.
3. What industries use trunnion mounted ball valves?
They are widely used in oil and gas, petrochemical, power generation, metallurgy, and pipeline transmission systems.
