I. Why is high-temperature steam service so demanding for valves?
In power plants, high-temperature steam is commonly used in main steam lines, reheat steam lines, bypass systems, and auxiliary steam systems. These applications involve elevated temperature, high pressure, frequent cycling, and rapid flow changes, all of which place severe demands on valve sealing, structural strength, and thermal stability.
If the valve is not properly selected, common problems may include:
Seat deformation and internal leakage
Increased operating torque and poor responsiveness
Body fatigue caused by long-term thermal shock
Frequent maintenance and reduced unit availability
That is why valve procurement for power plants must focus not only on whether a valve “works,” but whether it is truly matched to the operating conditions for stable, long-term performance.
II. Why are trunnion ball valves suitable for high-temperature steam?

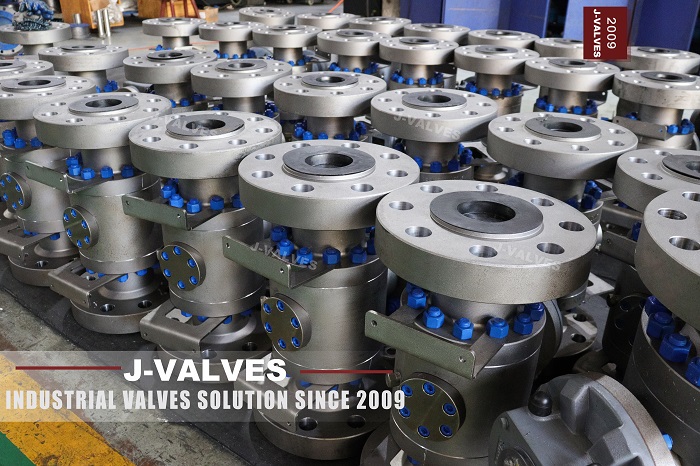

A trunnion mounted ball valve, also known as a fixed ball valve, supports the ball with upper and lower trunnions. This design reduces operating torque and improves stability under pressure, making it a strong choice for medium- to high-pressure, large-diameter, and severe service applications.
Its advantages in high-temperature steam service include:
1. More stable load distribution
Because the ball is not forced to move excessively under line pressure, the sealing surfaces experience more uniform loading, which supports reliable long-term operation.
2. Lower and more controllable torque
Compared with floating ball valves, trunnion designs require less operating torque under high pressure and high temperature, making them easier to pair with electric, pneumatic, or hydraulic actuators.
3. More dependable sealing performance
With spring-loaded seats, high-temperature sealing materials, and precise machining, trunnion ball valves can maintain excellent sealing integrity in steam service.
4. Better for large-diameter pipelines
Power plant steam systems often use large pipe diameters. Trunnion ball valves offer clear advantages in large-size designs, helping reduce pressure drop and improve system efficiency.
III. What are the most important selection factors?
In power plant procurement, the valve nameplate alone is not enough. The actual operating conditions matter more.
1. Temperature range
High-temperature steam brings continuous thermal loading. The body, seats, seals, and packing must all be selected according to the actual temperature class.
2. Pressure rating
Common power plant ratings include PN16, PN25, PN40, Class 150, and Class 300. Higher pressure ratings require stronger bodies, better sealing design, and suitable end connections.
3. Body material
Typical materials include carbon steel, stainless steel, and alloy steel. For high-temperature steam, alloy steel or high-performance carbon steel is often more suitable, depending on corrosion risk, temperature, and service life requirements.
4. Sealing design
In high-temperature service, soft seats may not be the best choice. Metal seated or high-performance composite sealing designs are often more reliable. Leakage class and thermal expansion compensation should be reviewed carefully.
5. Actuator matching
If the valve is used frequently, the actuator torque, control accuracy, and response time must be calculated in advance. A properly selected valve body can still fail in practice if the actuator is undersized.
IV. What are the common procurement mistakes?
Many projects make avoidable mistakes when sourcing trunnion ball valves:
Mistake 1: Focusing only on size and pressure
Temperature has a major impact on sealing materials and thermal expansion, so it cannot be ignored.
Mistake 2: Assuming all ball valves are suitable for steam
Standard ball valves are not always ideal for long-term high-temperature service, especially in high-pressure, large-diameter, or frequent-cycle applications.
Mistake 3: Ignoring actuator compatibility
Even a properly selected valve can underperform if the actuator cannot deliver sufficient torque.
Mistake 4: Overlooking lifecycle cost
A good procurement decision should consider not only purchase price, but also downtime, maintenance frequency, spare parts, and service life.
V. How can you tell whether a trunnion ball valve is truly suitable for high-temperature steam?
During procurement, evaluate the valve from multiple angles:
Clear temperature and pressure ratings
Seat and packing materials suitable for high-temperature service
Resistance to thermal shock and thermal cycling
Capability for large-diameter and high-pressure applications
Complete testing and certification documents
Proven references in similar power plant applications
If a supplier can only provide basic specifications but cannot explain the material logic, sealing design, or torque matching for steam service, the product is unlikely to be suitable for critical power plant systems.
VI. Typical power plant applications
Trunnion ball valves are often used in:
Main steam isolation systems
Reheat steam pipelines
Bypass pressure reduction systems
Auxiliary steam control systems
High-temperature, high-pressure tie-in lines
These applications share the same characteristics: high temperature, high pressure, frequent operation, and strict reliability requirements. That is why valve stability and durability are so important.
VII. Procurement recommendations to improve selection success
To make procurement more efficient, follow these steps:
Define the service conditions: temperature, pressure, flow rate, and cycling frequency
Clarify the system function: isolation, fast shutoff, or control
Verify material compatibility: body, seat, seal, and packing
Calculate actuator torque with a safety margin
Review certifications and testing: pressure test, leakage test, and temperature resistance validation
Work with a supplier experienced in power plant applications to reduce rework and communication costs
VIII. Conclusion
High-temperature steam service in power plants demands more than simple pressure resistance. It requires thermal endurance, long-term stability, and dependable sealing. With its stable load structure, lower operating torque, and reliable sealing performance, the trunnion ball valve is a strong option for steam service.
For power plant procurement, the real goal is not to find the valve with the highest single specification. The goal is to achieve full matching across temperature, pressure, sealing, materials, and actuation. That is how you reduce operating risk, improve system efficiency, and extend equipment life.
FAQ
1. Are trunnion ball valves suitable for high-temperature steam?
Yes. They are often a better choice in medium- to high-pressure, large-diameter, and frequent-cycle steam applications.
2. What is the most important factor in power plant procurement?
Temperature, pressure, sealing material, body material, and actuator torque matching are all critical.
3. Is a hard-seated design always required for high-temperature steam?
Not always, but metal seated or high-performance sealing solutions are often more reliable in high-temperature service. The final choice depends on the exact operating conditions.
