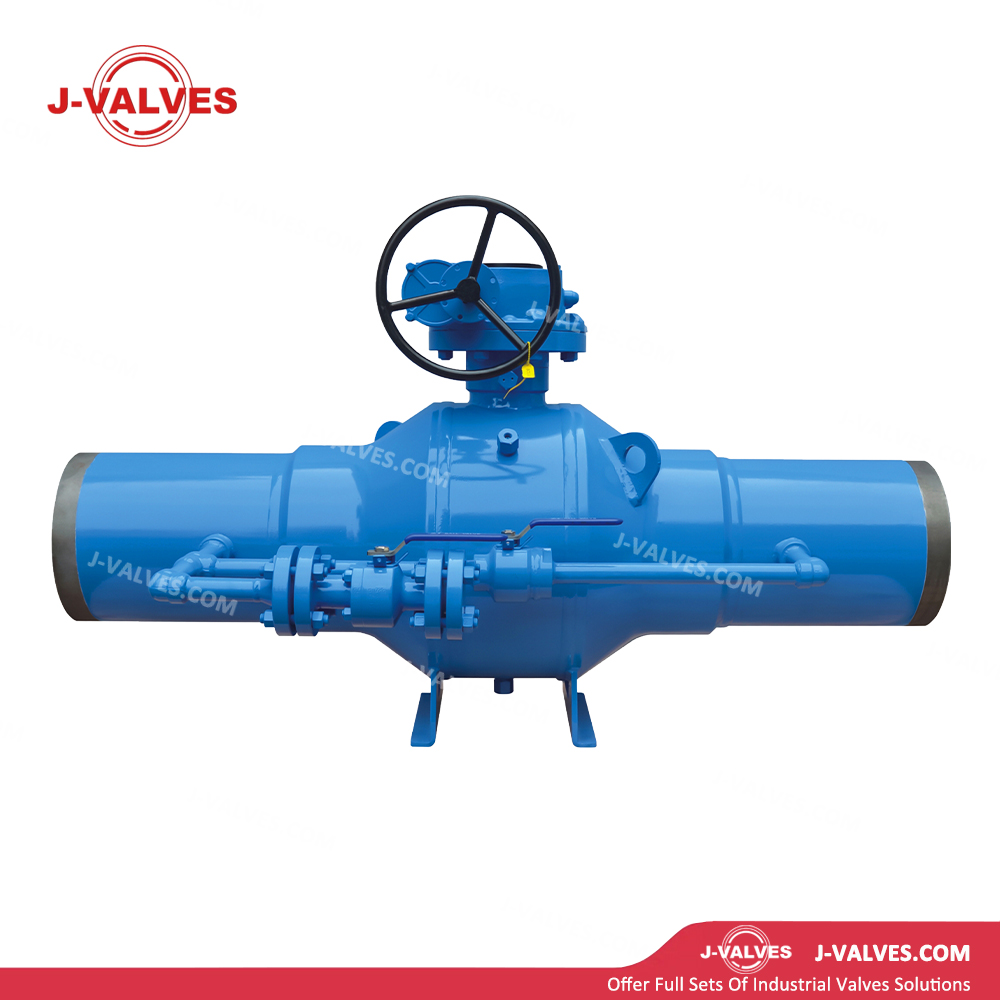

Forged Steel Fully Welded Ball Valve with Sleeves

Structural Features

• Fully Welded Structure: The valve body adopts a fully welded process, eliminating external bolts and flange connections, reducing potential leakage points, and enhancing the overall strength and sealing performance of the valve.

• Sleeve Design: Sleeves are equipped at both ends to ensure that welding operations do not affect the sealing materials, thus enhancing the valve's sealing performance and operational stability.

• Fire-Safe Design: Compliant with API 607 standards, the valve maintains sealing performance even in case of fire, preventing medium leakage and ensuring system safety.

• Anti-Static Device: A built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion, and is particularly suitable for controlling flammable and explosive media.

• Emergency Seal Injection: Equipped with an emergency seal injection port, it allows for quick repair in case of leakage, ensuring the valve's reliability and safety.

• Multiple Operation Modes: Can be equipped with manual, pneumatic, electric, or hydraulic actuators to achieve remote automated control.

• Compact Design: Small in size and light in weight, it is easy to install and integrate into existing systems, saving space.

Technical Parameters

• Size Range: 1/2″ to 56″ (DN15 to DN1400)

• Pressure Class: 150LB to 2500LB (PN10 to PN420)

• Temperature Range: -29℃ to +250℃(specific range depends on sealing materials and working conditions)

• Materials:

• Valve Body: Carbon steel (A105), stainless steel (304/316), alloy steel

• Ball: Stainless steel (304/316)

• Stem: Stainless steel (304/316)

• Sealing Material: PTFE, RPTFE

• Connection Type: Fully welded (BW), flange connection (compliant with ASME B16.5 standards)

• Operation Mode: Manual, pneumatic, electric, hydraulic

• Design Standards: API 6D, ASME B16.34, GB/T 12237

• Testing Standards: API 598

• Fire-Safe Design: API 607

• Applicable Media: Water, steam, oil products, natural gas, chemical media, etc.

Application Scenarios

• Oil and Gas Industry: Used in oil and gas field exploitation, gathering, and processing systems to ensure reliable isolation and control of media.

• Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.

• Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure medium isolation and cleanliness in the drug manufacturing process.

• Food and Beverage Industry: Meets food-grade requirements and is used in pipeline systems for food and beverage production to ensure hygiene and safety.

• HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.

• General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas.

Advantages and Value

• High Reliability: Forged steel material and fully welded structure ensure stable operation of the valve under high-pressure and high-temperature environments, reducing maintenance frequency and downtime.

• High Safety: Fire-safe and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.

• Automated Operation: Multiple actuator options enable remote control and automated operation, improving system flexibility and safety.

• Easy Installation and Maintenance: The fully welded connection simplifies the installation process and facilitates maintenance and repair.

• Wide Applicability: Multiple material options and a broad range of pressure and temperature ranges enable it to adapt to various complex working conditions and medium characteristics.
