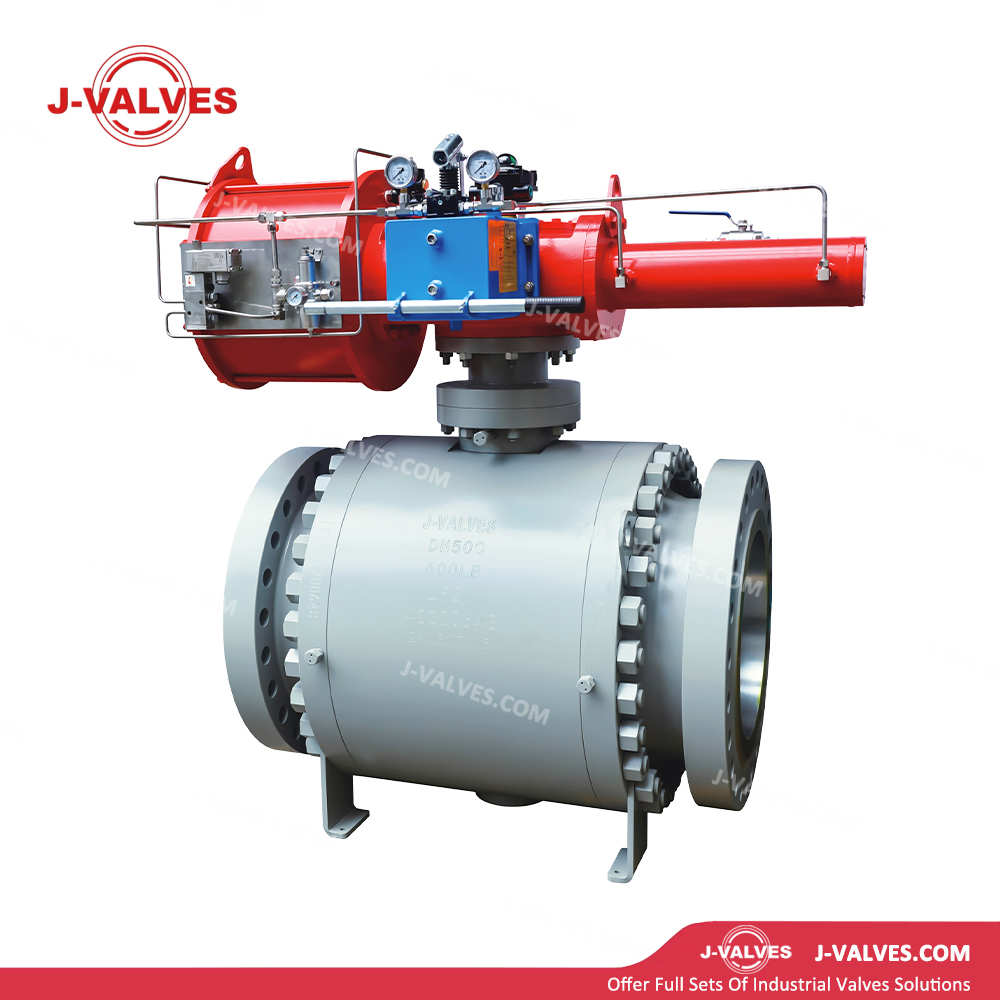

DN500 600LB Pneumatic Forged Steel Flange Trunnion Ball Valve

Structural Features

• Forged Steel Material: The valve body is made of forged steel, providing high strength and good corrosion resistance. It can resist erosion from various chemical media, extending the valve's service life.

• Trunnion Design: The trunnion design ensures the stability and sealing performance of the ball under high pressure, reduces operating torque, and improves the valve's reliability.

• Pneumatic Actuator: Equipped with a high-performance pneumatic actuator, it enables fast and precise remote control and automated operation. The actuator offers multiple options, such as solenoid valves, limit switch boxes, filters, and E/P positioners, to meet different control requirements.

• Fire-Safe Design: Compliant with API 607 standards, the valve maintains sealing performance even in case of fire, preventing medium leakage and ensuring system safety.

• Anti-Static Device: Built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion, especially suitable for controlling flammable and explosive media.

• Compact Design: Small in size and light in weight, it is easy to install and integrate into existing systems, saving space.

• ISO 5211 Mounting Interface: The valve is designed in accordance with ISO 5211 standards, facilitating the installation and replacement of actuators, and improving system compatibility and maintenance convenience.

Technical Parameters

• Nominal Diameter: DN500 (20″)

• Pressure Class: 600LB (PN100)

• Temperature Range: -29℃ to 425℃ (specific range depends on sealing materials and working conditions)

• Materials:

• Valve Body: Forged steel (WCB, A105, etc.)

• Ball: Stainless steel (316)

• Stem: Stainless steel (316)

• Sealing Material: PTFE, RPTFE

• Connection Type: Flange connection (compliant with ASME B16.5 standards)

• Operation Mode: Pneumatic (spring-return or double-acting)

• Design Standards: API 6D, ASME B16.34

• Testing Standard: API 598

• Pneumatic Actuator Specification: Air supply pressure 3bar to 7bar

Application Scenarios

• Oil and Gas Industry: Used in oil and gas field exploitation, gathering, and processing systems to ensure reliable isolation and control of media.

• Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.

• Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure medium isolation and cleanliness in the drug manufacturing process.

• Food and Beverage Industry: Meets food-grade requirements and is used in pipeline systems for food and beverage production to ensure hygiene and safety.

• HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.

• General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas.

Advantages and Value

• High Reliability: Forged steel material and trunnion design ensure stable operation of the valve under high-pressure and high-temperature environments, reducing maintenance frequency and downtime.

• High Safety: Fire-safe and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.

• Automated Operation: Equipped with a pneumatic actuator to realize remote control and automated operation, improving system flexibility and safety.

• Easy Installation and Maintenance: Flange connection simplifies the installation process and facilitates maintenance and repair.

• Wide Applicability: Multiple material options and a broad range of pressure and temperature ranges enable it to adapt to various complex working conditions and medium characteristics.
