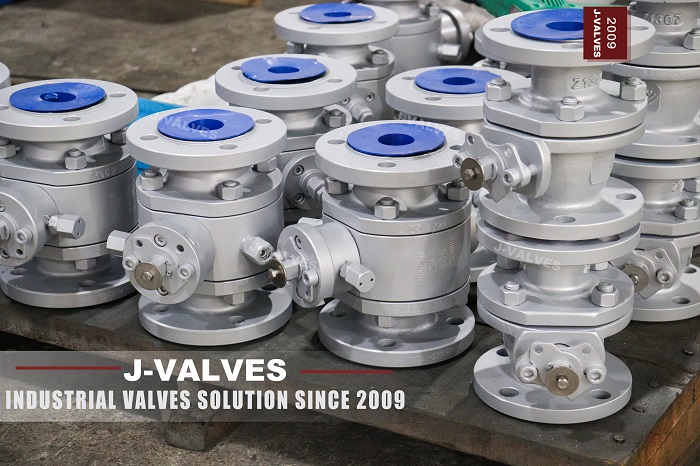

Ball valves are widely used in pipelines, chemical plants, oil and gas systems, power facilities, and industrial fluid control. They are known for fast operation, compact structure, and reliable shutoff performance.
But when it comes to valve selection, many people make the same mistake: they assume all ball valves perform the same.
They do not.
Floating ball valves and trunnion mounted ball valves are designed differently, work differently, and perform differently under pressure.
Choosing the wrong one may lead to higher operating torque, faster seat wear, poor sealing, and shorter service life.
This guide explains the key differences so you can choose the right valve for the right job.
1. What Is a Floating Ball Valve?
A floating ball valve uses a ball that is not mechanically fixed in place. Under line pressure, the ball moves slightly downstream and presses against the seat to create a seal.
This design is simple, compact, and cost-effective. It is commonly used in low to medium pressure systems and smaller pipe sizes.
Main characteristics:
Simple structure
Lower initial cost
Suitable for smaller diameters
Good for general service conditions
2. What Is a Trunnion Mounted Ball Valve?
A trunnion mounted ball valve uses a ball supported by a fixed shaft or trunnion at the top and bottom. The ball does not float freely under pressure.
Instead, the seats move toward the ball to form a seal.
This structure is especially suitable for high pressure, large diameter, and demanding service conditions.
Main characteristics:
Ball is mechanically supported
Lower and more stable operating torque
Better for high pressure and large size applications
Strong performance in critical systems
3. The Biggest Difference: How They Seal
The sealing mechanism is the core difference.
A floating ball valve relies on line pressure to push the ball into the seat.
A trunnion mounted ball valve relies on seat movement to seal against the ball.
That means:
Floating ball valves : depend more on pressure-assisted sealing
Trunnion mounted ball valves : provide more controlled sealing performance
This difference becomes especially important when pressure increases or the system operates for long periods.
4. Pressure Handling Performance
Floating ball valves work well in lower pressure systems. However, as pressure increases, the force pushing the ball into the seat also increases. That can raise friction and make operation harder.
Trunnion mounted ball valves are better suited for high pressure service because the load is supported by the trunnion structure. The ball does not shift excessively, so the valve remains more stable under demanding conditions.
In practice:
Floating ball valve: better for low to medium pressure
Trunnion mounted ball valve: better for high pressure and critical service
5. Operating Torque Difference
Torque is one of the most practical factors in valve selection.
A floating ball valve often has lower torque in lower pressure systems, but torque can increase significantly as pressure rises.
A trunnion mounted ball valve typically offers more stable and predictable torque, which makes it easier to match with actuators and automation systems.
That is why trunnion mounted valves are widely used in large industrial projects where reliable operation matters.
6. Size and Application Range
Floating ball valves are commonly used in smaller sizes, especially where the pipe diameter and pressure are moderate.
Trunnion mounted ball valves are preferred for medium to large diameters and high-demand applications.
Typical usage:
Floating ball valve:small to medium bore, lower pressure, general service
Trunnion mounted ball valve: large bore, higher pressure, oil and gas, pipeline, chemical processing
As valve size grows, the floating design becomes less practical because ball weight, seating load, and operating force all increase.
7. Service Life and Maintenance
Floating ball valves are economical and simple, but seat wear can become more noticeable in heavy-duty service. In high pressure applications, maintenance demand may rise over time.
Trunnion mounted ball valves usually have a higher upfront cost, but they often deliver longer service life and lower total maintenance cost in critical applications.
In other words:
Floating ball valve: lower purchase cost
Trunnion mounted ball valve: better long-term value in demanding systems
8. When to Choose a Floating Ball Valve
A floating ball valve is a smart choice when the system is:
Low to medium pressure
Smaller in size
Cost-sensitive
Used in general utility service
Not exposed to extreme operating conditions
It is often a practical and economical solution for water systems, utility lines, and light industrial applications.
9. When to Choose a Trunnion Mounted Ball Valve
A trunnion mounted ball valve is the better choice when the system is:
High pressure
Large diameter
Used in oil and gas pipelines
Exposed to demanding or high-cycle service
Required to maintain stable sealing and lower torque
Integrated into automated control systems
For critical service, the trunnion design usually offers better reliability and operational confidence.
10. Common Selection Mistakes to Avoid
1. Choosing based on price only
Lower price does not always mean lower total cost. A wrong valve choice may lead to leaks, repairs, shutdowns, and higher lifetime expense.
2. Ignoring pressure and temperature
Valve selection should always consider pressure, temperature, media type, and duty cycle.
3. Forgetting actuator matching
Torque and actuator sizing must be aligned. A valve that is hard to operate can create serious control problems.
4. Overlooking media characteristics
Corrosive, abrasive, viscous, or particle-laden fluids can affect sealing performance and seat wear.
11. Quick Selection Rule
Here is a simple rule of thumb:
Small size, low pressure, limited budget → choose a floating ball valve
Large size, high pressure, critical service → choose a trunnion mounted ball valve
This is not a universal rule, but it is a practical starting point for most industrial projects.
Conclusion: The Right Ball Valve Depends on Performance, Not Just Name
Floating ball valves and trunnion mounted ball valves may look similar from the outside, but they are built for different service conditions.
If you want better sealing stability, lower torque, and stronger performance in demanding systems, the trunnion mounted design is often the better solution.
If the system is smaller, simpler, and less demanding, a floating ball valve can be a cost-effective option.
The real secret of valve selection is simple:
Do not choose by name. Choose by operating condition.
FAQ
1. What is the main difference between floating and trunnion mounted ball valves?
A floating ball valve uses line pressure to push the ball into the seat, while a trunnion mounted ball valve uses a supported ball with moving seats for sealing.
2. Is a trunnion mounted ball valve always better?
No. It is better for high pressure, large diameter, and critical service, but a floating ball valve can be more economical for smaller and lower pressure systems.
3. Why are trunnion mounted ball valves used in pipelines?
Because they provide more stable torque, better pressure handling, and stronger sealing performance in demanding pipeline service.
