I. Why Valve Design Engineers Pay More Attention to Trunnion Mounted Ball Valves
In high-pressure, large-diameter, and long-cycle industrial systems, the trunnion mounted ball valve has become a preferred solution for many valve design engineers. It is not just a valve that opens and closes flow. It is a structural design optimized for stable sealing, low operating torque, and long service life.
For oil and gas pipelines, chemical plants, energy transmission systems, metallurgy, and high-pressure water applications, the real value of a trunnion mounted ball valve lies in its ability to handle pressure more effectively, reduce seat load fluctuation, and maintain reliable bidirectional sealing.
If you are involved in valve selection, system design, or technical comparison, understanding its structure and sealing technology is essential.
II. Basic Structure: More Than Just a “Ball Valve”

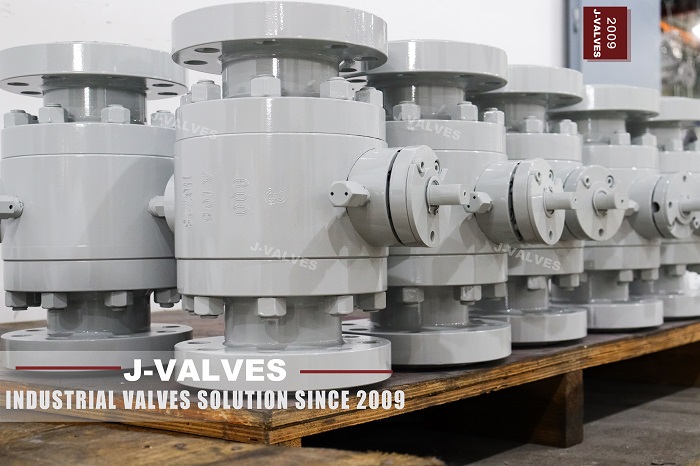

A trunnion mounted ball valve typically consists of a body, ball, upper and lower stems, seats, seat rings, bearings, and an actuator. Unlike a floating ball valve, the ball is not supported only by the seats. Instead, it is mechanically fixed inside the body through trunnion support.
This structure creates three important advantages:
First, the ball load is more stable.
The medium pressure is not fully carried by the seat, which makes wear more controllable and the valve more suitable for high-pressure and large-bore service.
Second, operating torque is lower.
Because the ball is fixed in position, rotational resistance is easier to control, which makes the valve easier to pair with electric, pneumatic, or hydraulic actuators.
Third, service life is longer.
Wear is better controlled, and the valve performs more consistently in frequent cycling applications.
For design engineers, this is not just a product category. It is a more reliable structural solution for demanding systems.
III. How the Sealing Works: What Delivers Stable Tightness?
The sealing performance of a trunnion mounted ball valve is based on a combination of ball fixation, elastic seat compensation, and pressure-assisted sealing.
1. Preloaded Seat Sealing
The seat is often spring-loaded or pressure-energized to maintain consistent contact with the ball surface. This helps the valve keep a stable seal even when pressure fluctuates.
2. Pressure-Assisted Sealing
Under pressure, the medium pushes the seat tighter against the ball, enhancing the sealing effect. This improves performance in both upstream and downstream directions.
3. Low-Friction Ball Surface Matching
Ball surface finish, precision, and coating have a direct impact on sealing life. High-precision lapping and wear-resistant coatings reduce early wear and minimize leakage risk.
4. Fire-Safe and High-Temperature Sealing Design
In petrochemical, thermal, or fire-critical service, trunnion mounted ball valves may also include metal backup sealing to maintain functionality when soft seals fail.
For valve design engineers, sealing is not a single feature. It is the result of structure, materials, machining accuracy, and service condition compatibility.
IV. Why Trunnion Mounted Ball Valves Excel in High-Pressure and Large-Diameter Applications
Many engineers prefer trunnion mounted ball valves for large-bore and high-pressure projects for very practical reasons.
Seat Load Is Better Controlled at High Pressure
In floating ball valves, the ball is forced more strongly into the downstream seat under high pressure, which increases torque and wear. A trunnion design distributes the load more evenly and runs more smoothly.
Easier Operation for Large Diameters
As diameter increases, pressure and operating torque also increase. A trunnion mounted structure reduces operating effort and is better suited for electric actuators or hydraulic systems.
Better for Long-Term Continuous Service
In transmission pipelines and continuous process systems, valves must maintain reliable sealing over long periods. Trunnion mounted ball valves are more suitable for stable, low-variation performance.
That is why they are widely used in oil and gas, chemical processing, LNG, steam, metallurgy, and high-pressure water systems.
V. What Parameters Should Design Engineers Focus on During Selection?
Even though the structure is mature, selection should never depend only on size and pressure class. Real performance depends on several key parameters:
1. Pressure rating
Class 150, 300, 600, 900, 1500, 2500, or PN ratings determine body strength and sealing configuration.
2. Medium characteristics
Whether the medium contains particles, is corrosive, flammable, or erosive will affect seat materials and coating options.
3. Temperature range
High-temperature service limits soft sealing materials and may require metal-seated or hybrid designs.
4. Bore size and flow requirements
Large-bore projects must consider flow resistance, bore type, and actuator compatibility.
5. Sealing class requirement
Bidirectional sealing, leakage control expectations, and standards such as API 6D directly influence the design route.
6. Operating method
Manual, electric, pneumatic, or hydraulic actuation all have different torque and interface requirements.
For engineering projects, selection is not about buying a valve. It is about choosing a reliable control point for the entire system.
VI. Common Sealing Solutions for Trunnion Mounted Ball Valves
The most common sealing options include:
Soft-Seated Designs
Suitable for clean media, room temperature, and medium-to-low pressure service. They offer excellent tightness and light operating torque, but limited temperature and wear resistance.
Metal-Seated Designs
Suitable for high temperature, high pressure, particle-laden, and erosive service. They deliver longer life but require higher machining precision.
Hybrid Sealing Designs
These combine the tightness of soft seats with the durability of metal seats and are increasingly used in complex applications.
Bidirectional Sealing Designs
Ideal for pipeline systems that require isolation in both directions and want to reduce installation direction limits.
A good design engineer should first evaluate medium, temperature, pressure, and maintenance interval before deciding on the sealing solution.
VII. Structural Optimization Defines Engineering Value
A truly effective trunnion mounted ball valve is not simply one that works. It must remain stable over the long term.
The body material must match corrosion conditions. The seat material must balance tightness and wear resistance. The ball surface treatment must minimize friction. The support structure must keep rotation smooth. The actuator must provide sufficient torque margin. Every part matters.
That is why experienced valve design engineers tend to focus less on initial price and more on structural safety, sealing life, and maintenance cost when facing high-pressure, large-bore, and severe-service applications.
VIII. Conclusion: In Trunnion Mounted Ball Valves, Structure Drives Sealing Performance
For valve design engineers, the value of a trunnion mounted ball valve is not in the name itself, but in the engineering logic behind it: fixed support reduces torque, precision sealing improves reliability, and structural optimization enables high-pressure service.
When a project demands higher safety, longer life, and better operational stability, a trunnion mounted ball valve is often not just an option. It is the preferred solution.
