Floating ball valves are widely used in industrial fluid systems for reliable on/off flow control, tight sealing, and safety operation. Unlike trunnion-mounted valves, the ball in a floating ball valve is suspended between the seats, allowing it to move slightly in the flow direction. Modern floating ball valves integrate advanced structural designs such as 90° switch with lock plate, anti-blowout stem, anti-static devices, fire-safe sealing, and zero-leakage flanged connections, making them suitable for high-pressure, high-temperature, and hazardous environments.

1. Floating Ball Valve Basic Structure

1.1 Valve Body and Ball

  • Valve Body: Made of cast steel, stainless steel, or high-performance alloys, supporting the internal ball and seats while withstanding pipeline pressures.

  • Floating Ball: Moves slightly downstream under line pressure, pressing against the downstream seat to achieve a tight seal. The ball is hollow or solid depending on size and pressure rating.

1.2 Seats and Seal Rings

  • Elastic Seal Rings: Double-bevel or V-slot designs allow automatic sealing under varying pressure, ensuring low leakage.

  • Leaf Spring Preload (Optional): Enhances sealing at low pressures where line pressure alone is insufficient.

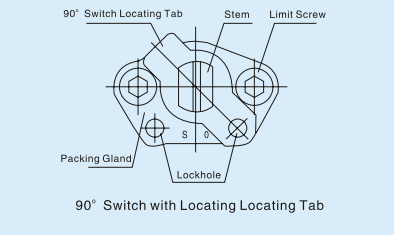

2. 90° Switch Design with Lock Hole Positioning Plate

  • Floating ball valves operate with a quarter-turn (90°) mechanism, providing rapid open/close operation.

  • Lock Hole Positioning Plate: Allows the valve to be fixed in fully open, fully closed, or partially open positions, preventing accidental rotation.

  • Enhances safety during maintenance or operation, particularly in hazardous fluid systems.

Operational Principle:
Turning the handle 90° rotates the floating ball from full open to full closed. The lock plate engages with a hole in the stem, preventing unintentional movement under vibration or external force.

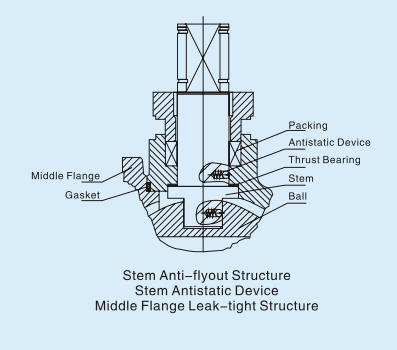

3. Stem Anti-Blowout Design

  • The valve stem connects the handle to the floating ball and transmits torque for opening and closing.

  • Modern floating ball valves feature anti-blowout stems, meaning the stem cannot be ejected from the valve body even under extreme upstream pressure.

  • Achieved through retaining rings, stem shoulders, and integral body design, ensuring operator safety and valve integrity.

4. Anti-Static Device

  • Floating ball valves for flammable or combustible fluids include anti-static devices, typically spring-loaded pins or conductive metal-to-metal contacts connecting the ball, stem, and body.

  • This ensures static electricity generated during operation is safely discharged, preventing sparks that could ignite flammable fluids.

5. Flange Zero-Leakage Structure

  • Middle flange (body-bonnet) design incorporates gaskets and self-tightening seal structures, ensuring no external leakage even under high pressure or thermal cycling.

  • Full bore or reduced bore flanges conform to ASME/ANSI standards for industrial pipeline integration, providing robust mechanical stability.

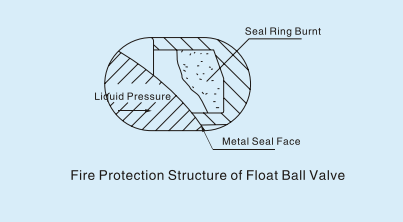

6. Fire-Safe Structure

  • Floating ball valves used in oil, gas, or chemical systems often feature fire-safe design.

  • Fire-safe seals include metal-to-metal backup rings and high-temperature elastomer inserts that maintain sealing integrity in case of fire.

  • In combination with robust body material and flange design, this ensures prevention of leakage during thermal or fire events, enhancing system safety.

7. Integrated Working Principle

  1. Flow Operation: When the handle is rotated 90°, the floating ball turns, allowing full flow (open) or sealing the line (closed).

  2. Automatic Sealing: Line pressure pushes the ball against the downstream seat; seal rings deform elastically to prevent leakage.

  3. Stem Safety: Anti-blowout stems maintain connection integrity under high pressure.

  4. Static Protection: Anti-static devices discharge electrical charge safely during operation.

  5. Maintenance and Safety: Lock plate, fire-safe seals, and flange design ensure operational reliability, safe maintenance, and long-term durability.

8. Applications

Floating ball valves with these structural features are widely used in:

  • Oil & Gas Pipelines: High-pressure gas and liquid systems requiring tight shutoff and safety.

  • Chemical Processing: Flammable or corrosive fluids needing anti-static and fire-safe valves.

  • Power Plants: Steam, condensate, and cooling systems with high-temperature operation.

  • Industrial Piping: Water treatment, HVAC, and process pipelines requiring zero external leakage.

9. Conclusion

Modern floating ball valves integrate multiple structural innovations—90° switch with lock plate, anti-blowout stem, anti-static devices, zero-leakage flanges, and fire-safe seals—to deliver safe, reliable, and efficient fluid control. Understanding these structural features and operational principles ensures engineers can select valves that maximize safety, longevity, and performance in demanding industrial systems.
