Double Block and Bleed (DBB) flanged trunnion mounted ball valves are widely used in critical fluid systems, including oil & gas, chemical processing, and power generation. These valves are designed for high-pressure applications where leakage prevention and operational reliability are paramount. One of the most critical aspects of DBB valve performance is the choice of gasket materials for the bonnet and body, which directly affects sealing efficiency, durability, and safety.
Understanding the Role of Bonnet and Body Gaskets
In DBB flanged trunnion mounted ball valves, gaskets serve as the primary seal between the valve body and bonnet, preventing leakage from pressurized fluids. The choice of gasket material affects:
Sealing performance under pressure and temperature variations
Chemical compatibility with process fluids
Resistance to creep, relaxation, and degradation over time
Ease of maintenance and long-term reliability
Selecting the right gasket material is essential for ensuring safety, minimizing downtime, and complying with industry standards.
Common Bonnet and Body Gasket Materials
1. PTFE (Polytetrafluoroethylene)
Characteristics: Excellent chemical resistance, low friction, wide temperature range (-200°C to 260°C)
Advantages:
Compatible with aggressive chemicals and hydrocarbons
Non-stick properties reduce torque during assembly
Long service life under moderate pressure conditions
Limitations:
Susceptible to creep under high pressures (>600 psi)
Limited performance at extreme temperatures above 260°C
Applications: Ideal for chemical, pharmaceutical, and food processing systems where corrosive fluids are present.
2. Graphite (Flexible Graphite / Expanded Graphite)
Characteristics: High temperature tolerance (up to 450–500°C), good compressibility
Advantages:
Excellent sealing in high-temperature and high-pressure applications
Resistant to thermal cycling and creep
Suitable for flanged connections requiring tight sealing under fluctuating loads
Limitations:
Not suitable for strong oxidizers without proper coating
Requires careful installation to prevent damage during assembly
Applications: Refineries, steam systems, and power plants where temperature extremes are common.
3. Spiral Wound Gaskets (Metal/Graphite Combination)
Characteristics: Combines metal rings with flexible filler (graphite, PTFE, or ceramic)
Advantages:
High pressure and temperature capability
Excellent resilience and sealing under dynamic loads
Can handle thermal cycling without significant leakage risk
Limitations:
Higher cost than simple soft gaskets
Requires precise flange surface finish and proper compression
Applications: Oil & gas pipelines, high-pressure chemical reactors, and critical isolation valves.
4. PTFE-Coated Metal Gaskets
Characteristics: Metal core with PTFE overlay
Advantages:
Combines mechanical strength of metal with chemical resistance of PTFE
Reduces creep under high pressure
Provides reliable sealing with moderate thermal fluctuations
Limitations:
Not suitable for extreme temperatures beyond PTFE limits
More expensive than standard PTFE or graphite gaskets
Applications: Corrosive fluid applications in medium-pressure environments.

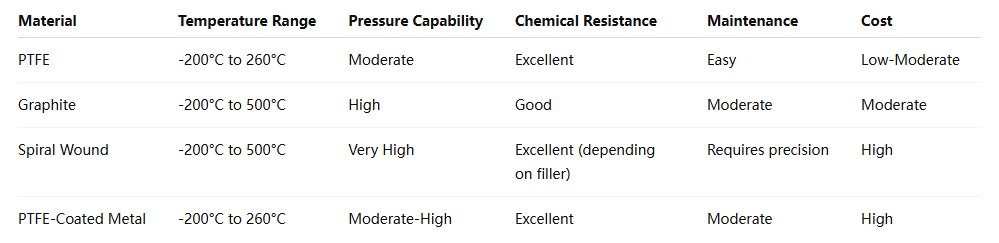

Performance Comparison of Gasket Materials
Key Considerations for Material Selection
Operating Pressure and Temperature: Graphite and spiral wound gaskets excel in high-pressure and high-temperature scenarios, while PTFE is suited for moderate conditions.
Chemical Compatibility: For aggressive chemicals, PTFE or PTFE-coated gaskets offer superior corrosion resistance.
Maintenance and Assembly: Soft gaskets like PTFE are easier to install, whereas spiral wound gaskets require precise flange alignment and torque.
Regulatory Compliance: Ensure gasket materials meet ASME, API, or ISO standards relevant to your industry and application.
Conclusion
The choice of bonnet and body gasket materials in DBB flanged trunnion mounted ball valves is a critical factor in ensuring valve reliability, safety, and operational efficiency. PTFE, graphite, spiral wound, and PTFE-coated metal gaskets each have distinct advantages depending on pressure, temperature, chemical exposure, and maintenance requirements. By understanding the performance characteristics of each material, engineers and procurement teams can make informed decisions to optimize system performance and minimize operational risks.
