Q11F
MSNL

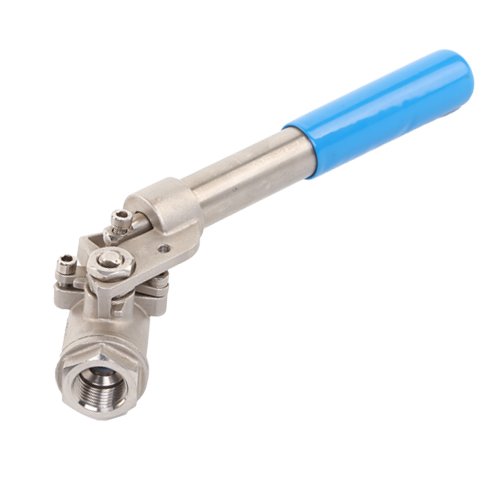

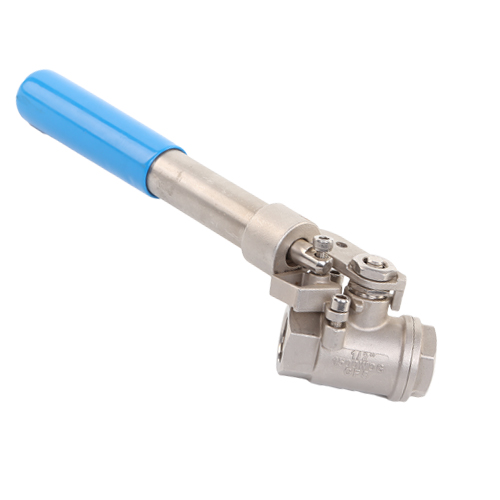

Floating 2PC Screwed ends Stainless Steel Ball Valve with Spring Return Handle
The spring return handle on the 2PC Stainless steel ball valve allows for easy opening and closing with minimal effort. This type of valve is ideal for valves that require a light torque. When the handle is loosened, the valve will automatically close. This particular valve is recommended for use as a sampling valve.
There are six main body styles for Floating Stainless Steel ball valves: single body, two-piece body, three-piece body, split body, top entry, and welded. These styles differ based on the number of pieces that make up the valve, especially the casing that houses the ball. The operation of the Screwed 2PC Ball Valve remains the same regardless of the body style. Furthermore, there are various styles available depending on the bore of the ball mechanism itself.
Stainless Steel Ball Valve with Spring Return Valve specifications:
1. Size: 1/4’’~4’’(DN6~DN100)
2. Pressure: 1000WOG
3. Material: A351-CF8, A351-CF8M, A216-WCB
4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
Stainless Steel Ball Valve with Spring Return Valve design description:
1. Investment casting body
2. Adjustable stem packing
3. Blow out proof stem
4. 100% leakage tested
5. Handle operated
6. Working Temperature: -20℃~250℃
7. Available with ISO5211 direct mounting pad & actuators
8. Available with locking device
9. Other materials upon customer’s request
Stainless Steel Ball Valve with Spring Return Valve competitive advantage:
1. Our products is guaranteed within 18 months after delivery.
2. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.
3. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
