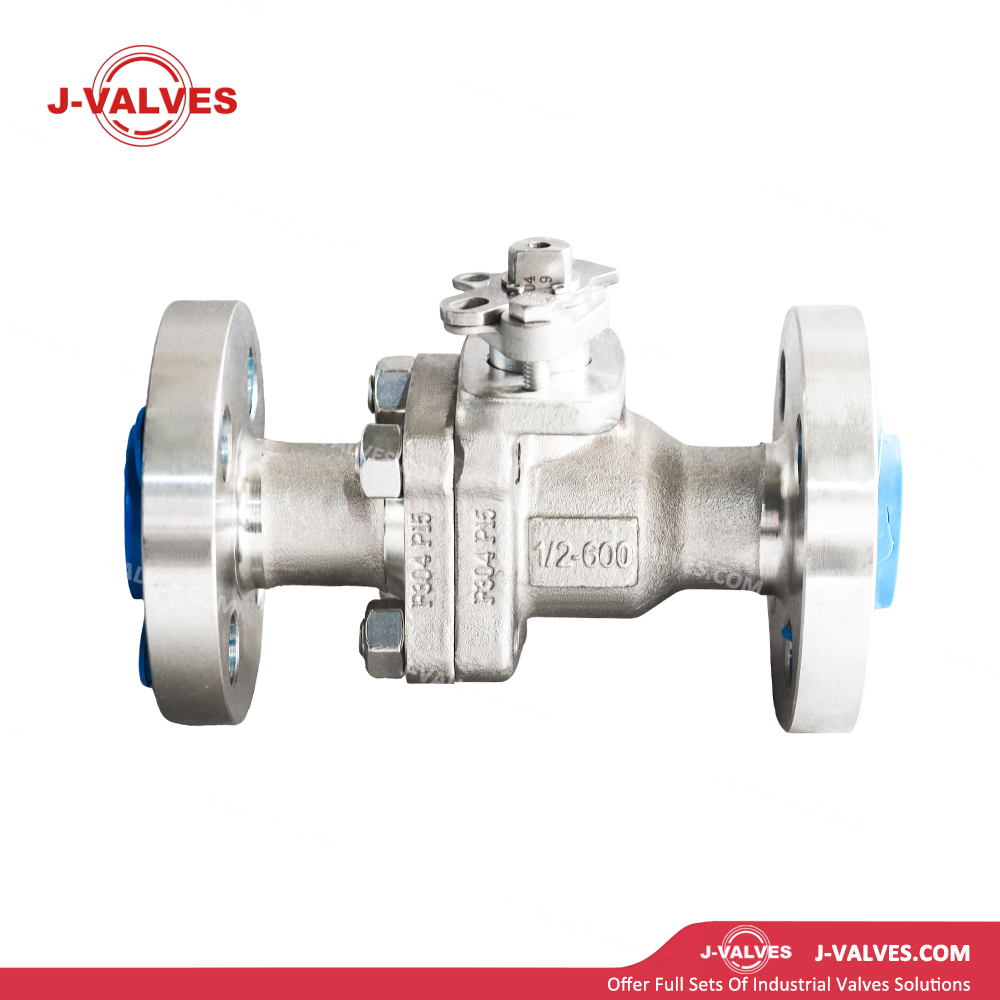

Understanding Floating Ball Valves
Floating ball valves consist of a spherical ball that rotates within a valve body to control the flow of fluid. The ball is supported by a stem and can move slightly within the valve body, allowing it to seal tightly against the seat. This design provides excellent sealing capabilities and is suitable for a wide range of applications.
When designing floating ball valves, several factors must be considered to ensure optimal performance and reliability:
• Material Selection: The material must withstand the operating pressures, temperatures, and corrosive nature of the fluid.
• Mechanical Strength: The valve body must be robust enough to handle mechanical stresses, including potential impacts.
• Corrosion Resistance: The material should resist corrosion to ensure long-term reliability and minimal maintenance.
• Flow Dynamics: The design should minimize pressure drop and ensure efficient fluid flow.
ISO Standard for Floating Ball Valves
ISO 17292 is an international standard that specifies the design, manufacturing, and testing requirements for floating ball valves. This standard covers various aspects, including:
• Design and Dimensions: Detailed requirements for valve design, including dimensions, materials, and manufacturing processes.
• Pressure and Temperature Ratings: Comprehensive guidelines for pressure and temperature ratings, ensuring the valve's suitability for specific operating conditions.
• Testing and Inspection: Rigorous testing and inspection procedures to verify the valve's performance and quality.
• Fire Safety: ISO 17292 includes requirements for fire safety, ensuring that the valve can withstand fire conditions without significant leakage.
• Low Emission: The standard includes provisions for low-emission designs, reducing the risk of fugitive emissions.
• Structural Integrity: ISO 17292 emphasizes the importance of structural integrity, ensuring that the valve can withstand high pressures and temperatures.
ANSI Standard for Floating Ball Valves
ANSI/ASME B16.34 is an American standard that specifies the requirements for ball valves, including design, dimensions, pressure ratings, and testing. Key features include:
• Design and Dimensions: Detailed specifications for valve design, including dimensions, materials, and manufacturing processes.
• Pressure and Temperature Ratings: Comprehensive guidelines for pressure and temperature ratings, ensuring the valve's suitability for specific operating conditions.
• Testing and Inspection: Rigorous testing and inspection procedures to verify the valve's performance and quality.
Key Features of ANSI/ASME B16.34
• Pressure Ratings: ANSI/ASME B16.34 provides detailed pressure ratings for various classes of valves, ensuring they can withstand the specified operating pressures.
• Temperature Ratings: The standard includes temperature ratings, ensuring the valve's suitability for specific operating temperatures.
• Material Requirements: ANSI/ASME B16.34 specifies material requirements, ensuring the valve's durability and resistance to corrosion.
• ISO 17292: The valve body design under ISO 17292 often includes features such as fire-safe designs and low-emission capabilities. The body is typically designed to withstand high pressures and temperatures, ensuring structural integrity.
• ANSI/ASME B16.34: The valve body under ANSI/ASME B16.34 is designed to meet specific pressure and temperature ratings. The body is robust and designed to handle mechanical stresses, ensuring long-term reliability.
• ISO 17292: The stem design under ISO 17292 includes features such as anti-blowout protection and dynamic load springs. These features ensure the stem's reliability and prevent leakage.
• ANSI/ASME B16.34: The stem design under ANSI/ASME B16.34 is robust and designed to handle high pressures and temperatures. The stem is typically designed with anti-blowout protection to ensure safety.
• ISO 17292: The seat design under ISO 17292 often includes soft seats made from materials like PTFE or metal seats for high-temperature applications. The seat design ensures tight sealing and long-term reliability.
• ANSI/ASME B16.34: The seat design under ANSI/ASME B16.34 includes similar materials and ensures tight sealing. The standard emphasizes the importance of seat durability and resistance to wear.
