Introduction
Double Block and Bleed (DBB) ball valves are widely used in oil, gas, petrochemical, LNG, and pipeline systems where safe isolation and zero-leakage performance are critical. Among the most important engineering requirements for these valves is compliance with API 6D, the international specification governing pipeline valves.
API 6D compliance is not only a design requirement—it defines a full lifecycle framework covering material selection, structural design, pressure testing, quality control, and traceability. This article explains how API 6D influences DBB ball valve design and testing, and why it is essential for ensuring safety and performance in demanding industrial applications.

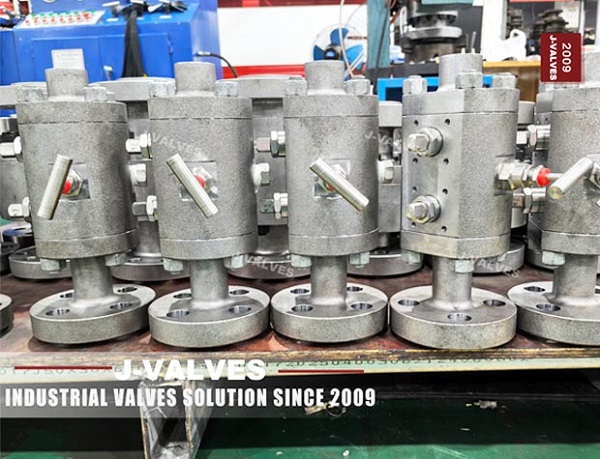

What Is a DBB Ball Valve?
A DBB ball valve (Double Block and Bleed Ball Valve) is a valve system designed to isolate a pipeline section using two sealing elements (block) and a vent/bleed cavity between them.
Key Functions:
Double isolation for maximum safety
Cavity pressure venting and monitoring
Reduced need for multiple valves in a pipeline
Compact design with integrated sealing structure
DBB ball valves are commonly used in:
Gas transmission pipelines
Refining and petrochemical plants
Offshore platforms
LNG storage and transportation systems
Overview of API 6D Standard
API 6D (Specification for Pipeline and Piping Valves) is issued by the American Petroleum Institute and is the key standard for pipeline valve engineering.
API 6D Covers:
Valve design requirements
Pressure rating and structural integrity
Material traceability and certification
Fire-safe design requirements (when applicable)
Pressure testing procedures
Quality control and inspection methods
For DBB ball valves, API 6D ensures that the valve can operate reliably under high pressure, temperature variations, and corrosive environments.
API 6D Requirements in DBB Ball Valve Design
1. Structural Integrity Design
API 6D requires DBB ball valves to be designed with:
Full pressure containment capability
Anti-blowout stem design
Reinforced sealing structures
Fire-safe sealing options (as per project requirement)
Engineers must ensure the valve body can withstand pipeline stresses without deformation or leakage.
2. Double Isolation Performance
DBB valves must provide:
Independent upstream and downstream sealing
Reliable bubble-tight shutoff performance
Stable sealing under pressure fluctuations
This is critical in preventing cross-contamination and ensuring safe maintenance operations.
3. Cavity Bleed Function
A defining feature of DBB valves is the bleed port, which must:
Release trapped pressure safely
Allow verification of seal integrity
Prevent overpressure in the cavity
API 6D requires that the bleed system be fully controllable and leak-free.
4. Material Compliance and Traceability
All pressure-bearing components must:
Meet ASTM or equivalent material standards
Have full heat number traceability
Pass chemical and mechanical property verification
Typical materials include:
Carbon steel (A105, WCB)
Stainless steel (316/304)
Low-temperature alloys (LF2, LCB)
Corrosion-resistant alloys such as C95800
API 6D Testing Requirements for DBB Ball Valves
Testing is one of the most critical parts of API 6D compliance.
1. Shell Test
Verifies body strength under high pressure
Ensures no deformation or leakage
2. Seat Leakage Test
Confirms zero leakage across sealing surfaces
Typically performed using air or water
3. Backseat and Stem Test
Ensures stem sealing integrity under pressure
Prevents external leakage
4. Cavity Pressure Test (DBB Function Test)
Validates isolation between upstream and downstream seats
Confirms effectiveness of bleed system
5. Hydrostatic and Pneumatic Testing
Hydro test for structural safety
Pneumatic test for sealing sensitivity
All tests must comply strictly with API 6D acceptance criteria.
Design Advantages of API 6D DBB Ball Valves
1. Enhanced Safety Performance
DBB configuration reduces the risk of leakage during maintenance or isolation procedures.
2. Reduced System Complexity
A single DBB valve can replace multiple valve installations, saving space and cost.
3. High Reliability in Extreme Conditions
API 6D ensures suitability for:
High-pressure pipelines
Cryogenic environments
Offshore and subsea applications
4. Long Service Life
Strict material and testing requirements significantly improve durability.
Manufacturing Capability and Engineering Control
Advanced manufacturers such as J-VALVES implement API 6D requirements throughout the entire production process, including:
CNC precision machining of sealing components
Full material traceability systems
Advanced pressure testing laboratories
NDT inspection (UT, RT, PT, MT)
Assembly under controlled quality environments
These processes ensure every DBB ball valve meets international pipeline safety standards.
Typical Applications of API 6D DBB Ball Valves
Natural gas transmission pipelines
LNG liquefaction and regasification terminals
Oil refinery process systems
Chemical injection and metering systems
Offshore platform isolation systems
Pig launching and receiving stations
Conclusion
API 6D compliance is the foundation of safe and reliable DBB ball valve engineering. It defines strict requirements for design integrity, sealing performance, material control, and comprehensive testing procedures.
A properly designed API 6D DBB ball valve not only ensures pipeline safety but also improves operational efficiency and reduces long-term maintenance risks. For critical industries such as oil and gas, adherence to API 6D is not optional—it is essential.
