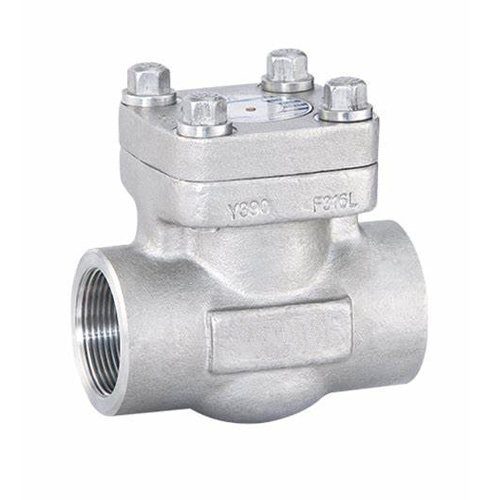

Stainless Forged Steel Swing Type/Lift Type Check Valve(150LB~2500LB)

Stainless Forged Steel Swing Type/Lift Type Check Valve(150LB~2500LB)

Forged Stainless Steel Check Valve specifications:

1. Size: 1/2’’~2’’(DN15~DN50)

2. Pressure: 150LB~2500LB

3. Material: A182-F304/316/304L/316L, A105,F11,F22,F51,LF2, etc.

4. Ends: NPT, BSPP, BSPT, Socket Welded

5. Port: Reduce Port

6. Seal/Seat: Metal

7. Working temperature: ~196℃ to 525℃

Forged Stainless Steel Check Valve features:

1. Stainless steel disc

2. Screwed cap

3. Bolted bonnet or welded bonnet or pressure seal bonnet

4. Non return disc

5. Swing type, lift type available

6. Threaded or socket weld or flange ends




Forged Stainless Steel Check Valve Features:

1. Design & manufacturer standard: API 602 & ANSI B16.34

2. Face to Face dimension standard: ANSI B16.10

3. Socket Weld Ends standard: ASME B16.11

4. Screwed Ends (NPT) standard: ASME B1.20.1

5. Butt Welding Ends standard: ASME B16.25

6. Test and Inspect standard: API 598

Forged Stainless Steel Check Valve, also called non-return valve, one way valve. It automatically open and close by fluid. It mainly has swing type check and lift type check valve. Forged Stainless Steel Check Valve, has three design type for bonnet, one one is bolted bonnet, use stainless steel and flexible graphite spiral wound gasket. One is welded bonnet, welding it after sealed by thread. The last one is pressure sealed bonnet, connected by thread and pressure sealed bonnet. Forged Steel Check Valve, sealing surface material is decided by customer’s operation condition, like temperature, medium, pressure, etc. Forged Steel Check Valve, there is a direction arrows on valve body, it must be installed as per direction arrows.

Forged Stainless Steel Check Valve Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.
