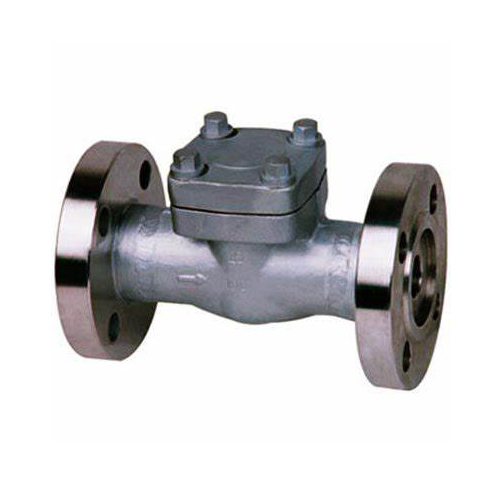

API602 Forged Steel Flange Check Valve( Swing/Lift/Piston Type)

API602 Forged Stainless Steel Flange Swing Type/Lift Type Check Valve

We introduce the professional grade Forged Steel Swing Lift Piston Flanged Check Valve. Designed to prevent backflow of media, this high quality valve provides smooth flow of media through opening and closing action.

Manufactured from precision forged steel, this valve guarantees excellent durability and service life, making it ideal for a wide range of industrial applications. Its oscillating design provides efficient flow control, while the lifting mechanism ensures reliable operation under high pressure conditions.

Equipped with a piston-type flange connection, the valve provides enhanced sealing performance and significantly reduces the risk of leakage. Rugged construction and excellent sealing enable it to be used in demanding environments where safety and efficiency are paramount.

This forged steel swing lift piston flanged check valve meets the industry's highest standards and is a reliable solution for any system requiring effective backflow prevention. Trust its professional-grade performance for smooth, reliable operation in your application!

Forged Steel Check Valve specifications:

1. Size: 1/2’’~2’’(DN15~DN50)

2. Pressure: 150LB~2500LB

3. Material: A182-F304/316/304L/316L, A105,F11,F22,F51,LF2, etc.

4. Ends: Flange ends

5. Port: Reduce Port

6. Seal/Seat: Metal

7. Working temperature: ~196℃ to 525℃

Forged Steel Flange Check Valve features:

1. Stainless steel disc

2. Screwed cap/Welded cap/Pressure sealed cap

3. Bolted bonnet or welded bonnet or pressure seal bonnet

4. Non return disc

5. Swing type, lift type available

6. Threaded or socket weld or flange ends

Forged Steel Flange Check Valve features:

1. Design & manufacturer standard: API 602 & ANSI B16.34

2. Face to Face dimension standard: ANSI B16.10

3. Flange Ends standard: ASME B16.11

4. Test and Inspect standard: API 598

Forged steel flanged check valve, also known as check valve or check valve. It can open and close automatically according to the fluid condition. There are mainly two types of swing type and lift type.

The valve's bonnet design is divided into three types: bolted, made of stainless steel and sealed with flexible graphite wound gaskets; welded, fixed after sealing by welding; pressure-sealed, connected by threads and relying on pressure sealing.

The sealing surface material of the valve depends on the customer's conditions of use, such as temperature, medium and pressure. The valve body is labeled with directional arrows, so be sure to follow the direction of the correct installation.

Forged Steel Flange Check Valve competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.
