Z41W
MSNL

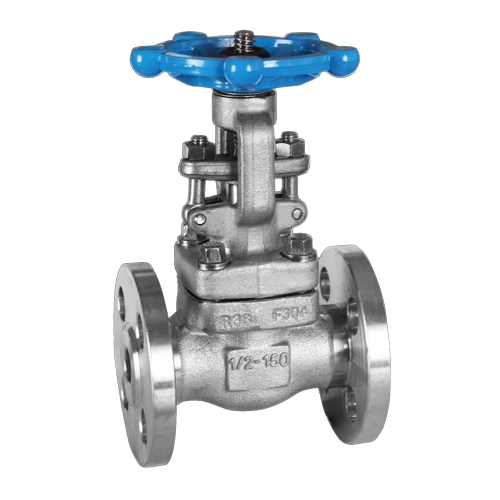

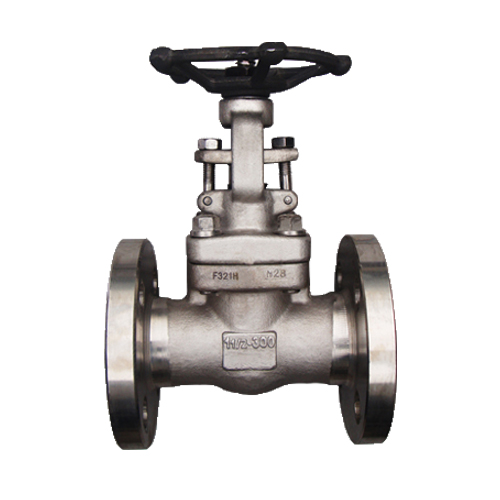

API602 Bonnet Bolted Forged Steel Flange Gate Valve(150LB~2500LB)
The Reduced Port Forged Steel Gate Valve is specially designed to be used in environments with high pressure. It has a built-in backseat and a bonnet that can be secured with bolts or by self-sealing. The bonnet bolts are made of alloy steel and meet the standards set by API602 & ASME B16.34. The seat ring of the gate valve is made of steel and is an essential part of the valve trim. The valve's sealing surface is carefully polished and ground. The wedge of the forged steel gate valve is solidly constructed from forged steel, serving as both a part of the valve trim and a mate for the built-in backseat of the bonnet. Overall, this gate valve is suitable for use in high-pressure working conditions.
The Compact Gate Valve made of Forged Steel is commonly used in situations with high pressure. It is equipped with a built-in backseat and can be fitted with either a bolted or self-sealed bonnet. The bonnet's bolts are composed of alloy steel and meet the standards of API602 & ASME B16.34. The valve's seat ring, which is an essential component of the valve trim, is constructed from steel. Its sealing surface is meticulously polished and ground. The gate valve's wedge, also part of the valve trim, is a solid design crafted from forged steel. It securely fits with the bonnet's integrated backseat. In summary, the Forged Steel Gate Valve is well-suited for high pressure environments and can effectively handle typical flow rates, particularly in smaller sizes.
Forged Steel Flange Gate Valve Features:
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral-wound gasket
Integral backseat
Forged Steel Flange Gate Valve Features:
Design & manufacturer standard: API 602 & ANSI B16.34
Face to Face dimension standard: ANSI B16.10
Flange dimension standard: ASME B16.5
Test and Inspect standard: API 598
FAQs (Frequently Asked Questions) about API602 Bonnet Bolted Forged Steel Flange Gate Valve:
1. What is an API602 Bonnet Bolted Forged Steel Flange Gate Valve?
An API602 Bonnet Bolted Forged Steel Flange Gate Valve is a type of industrial valve that is used to control the flow of fluids (liquids or gases) in a pipeline. It is designed and manufactured according to the API 602 standard, which sets the requirements for compact steel gate valves used in various industries, including oil, gas, and petrochemical.
2. What are the main features of an API602 Bonnet Bolted Forged Steel Flange Gate Valve?
- Compact design: These gate valves are designed to be compact and space-saving, making them suitable for applications with limited installation space.
- Bolted bonnet: The valve has a bonnet that is bolted to the body, providing a secure and leak-tight seal.
- Forged steel construction: The valve body and bonnet are made from forged steel, which offers high strength, durability, and resistance to high pressures and temperatures.
- Flanged ends: The valve has flanged ends, allowing for easy installation and connection to the pipeline.
- Rising stem: The stem of the gate valve rises or lowers as the valve is operated, providing a visual indication of the valve position.
3. What are the advantages of using an API602 Bonnet Bolted Forged Steel Flange Gate Valve?
- High pressure and temperature capabilities: These gate valves are designed to handle high-pressure and high-temperature applications, making them suitable for demanding industrial environments.
- Reliable sealing: The bolted bonnet design ensures a reliable and leak-tight seal, preventing fluid leakage and minimizing the risk of environmental contamination.
- Durability: The forged steel construction of the valve body and bonnet enhances its durability, allowing it to withstand harsh operating conditions and provide long-lasting performance.
- Versatility: API602 Bonnet Bolted Forged Steel Flange Gate Valves are suitable for a wide range of applications, including oil and gas production, refining, petrochemical processing, power generation, and more.
