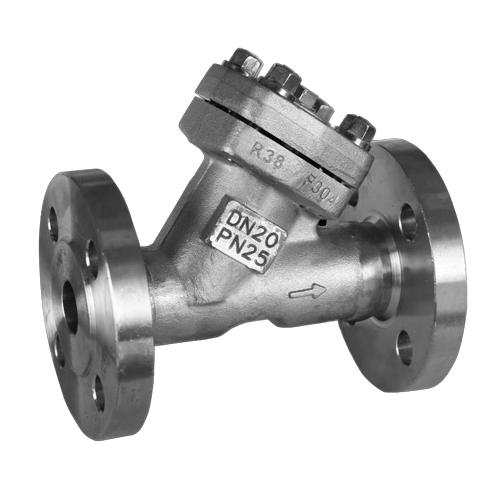

API602 Stainless Forged Steel Flange Ends Y Type Strainer(150LB~2500LB)

API602 Stainless Forged Steel Flange ends Y type Strainer(150LB~2500LB)

Forged Steel Flange Y Strainer specifications:

1. Size: 1/2’’~2’’(DN15~DN100)

2. Pressure: 150LB~2500LB

3. Material: A182-F304/316/304L/316L, A105,F11,F22,F51,LF2, etc.

4. Ends: Flange

5. Seal/Seat: Metal

6. Screen: stainless steel

Forged Steel Flange Y Strainer features:

1. Strainer body meets applicable ASME Standard.

2. One piece precision investment cast body.

3. Strainers equipped with threaded cover cap that utilize a flat gasket seal.

4. Upper and lower machined seats.

5. 304 SS perforated screens are standard.

6. Drain/Blow-off connection furnished with plug as standard.

7. Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between cleanings.

Forged Steel Flange Y strainer, are provided with a variety of end connections, including threaded, flanged, and welded. Standard screens are provided for either steam service or WOG (water, oil, gas) service, but other screens are available on request. Forged Steel Flange Y Strainer, can be installed in any position on the pipeline, pay attention to correct flow direction of medium that should be in accordance with marking on the body. Forged Steel Flange Y Strainer, is widely used in process industries such as palm oil and refinery plant, petrochemical, power plant, oil and gas industries, pulp and paper mill, heating and cooling system. Forged Steel Flange Y Strainer, generally has Iron, Carbon Steel, Bronze, Stainless Steel materials, just choose materials according to different operation conditions.

Forged Steel Flange Y Strainer competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.
