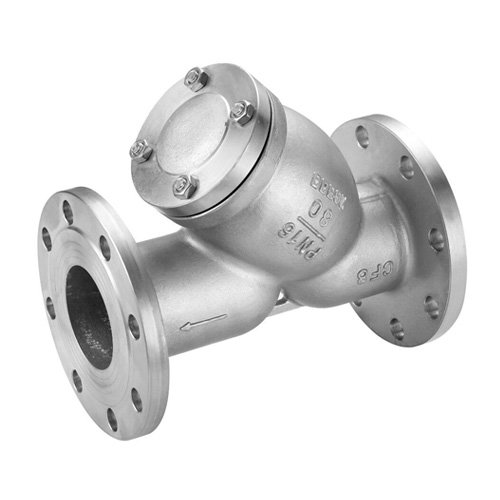

API/JIS/DIN Flange Ends Stainless Steel Y Type Strainer

Stainless Steel Flange Y Strainer specifications

1. Size: 1 1/2’’~24’’(DN40~DN600)

2. Pressure: 150LB~600LB

3. Material: A351-CF8, A351-CF8M, A351-CF3, A351-CF3M, A216-WCB, etc.

4. Ends: Flange

5. Port: Full Port

6. Working Temperature: -29~425℃, or according to customer requirements for different industry.

7. Seal/Seat: Metal

8. Screen: 20 mesh to 160 mesh

9. Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid

Stainless Steel Flange Y Strainer features

1. Easy cleaning without interrupting the process.

2. Various perforations, mesh or perforation mesh combinations are available to meet your process requirements.

3. Can be installed either in a horizontal or vertical position.

4. Y strainer can be produced in API, ASME, DIN/EN, JIS standards to meet different markets needs.

Stainless Steel Flange Y Strainer advantage and utility

1. Reasonable strainer

2. Standard types available from stock

3. Permanent filtration of the medium

4. Suitable for mounting in horizontal and vertical pipelines

5. No disassemble of the filter housing for cleaning is necessary

6. Simple handling / basket cleansing

7. Low-maintenance

8. Reusable elements

9. Contamination level indicator (optional)

Stainless Steel Flange Y Strainer competitive advantage

1. OEM/ODM is applicable

2. Offer free sample for testing

3. 100% test before delivery

4. 18 months warranty

Stainless Steel Flange Y Strainer is easy cleaning without interrupting the process. Stainless Steel Flange Y Strainer has various perforations, mesh or perforation mesh combinations are available to meet your process requirements. Stainless Steel Flange Y Strainer can be installed either in a horizontal or vertical position according to different working conditions.
