Q11F
MSNL

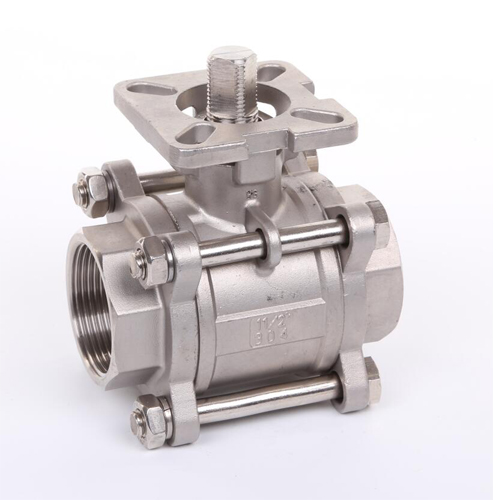

3PC Floating Stainless Steel Ball Valve with ISO5211 Direct Mounting pad
Our stainless steel ball valve, designed with a light torque for effortless use and extended durability, is a reliable choice. It features an ISO5211 mounting pad, which is our unique design. Additionally, we offer various molds to cater to different market requirements, such as API/ANSI/ASME, DIN, JIS, and more. Furthermore, we can customize non-standard products based on your specific needs for your pipelines or equipment. You also have the option to have your logo printed on the valve.
3PC Stainless Steel Ball Valve specifications:
1. Size: 1/4’’~4’’(DN6~DN100)
2. Pressure: 1000WOG
3. Material: A351-CF8, A351-CF8M, A216-WCB
4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
3PC Stainless Steel Ball Valve design features:
1. Enhanced precision and reduced air pockets are achieved through the use of top-notch investment castings; certified material test reports can be provided upon request.
2. Seats and seals designed for high temperatures.
3. Stem is secured at the bottom to prevent removal while the valve is in operation.
4. Temperature range: -20° to 600° F (varies depending on the seats).
5. Connection options include NPT/BSP/BSPT/DIN259/DIN2999, Butt Welding, Socket Welding.
6. The valve's three-piece construction allows for easy in-line repairs, making it a cost-effective choice.
3PC Stainless Steel Ball Valve competitive advantage:
1. Our products undergo rigorous quality control by professional inspectors during every step of the production process.
2. We offer an 18-month warranty after delivery.
3. Sample testing is available free of charge before placing orders.
4. We have a conveniently located shipping sea port, and we use standard export carton boxes and plywood cases.
5. Our products undergo 100% leakage testing.
6. Every production process is subject to 100% inspection and testing before delivery.
7. Our products are well-suited for various markets, including Europe, Central/South America, the Middle East, South Africa, and Asia. Our competitive prices and high-quality products cater to the needs of different markets.
3PC Ball Valve ISO5211 Direct Mounting Pad Material List:
Note:All the data should be confirmed with the approved drawings of manufacturer.
Looking forward to strengthening cooperation with various sectors of society to create brilliancy together.
