Q11F
MSNL

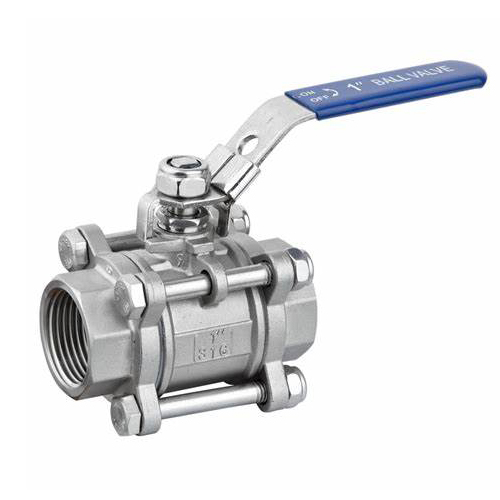

3PC Female Screwed Floating CF8M Stainless Steel Ball Valve
3PC Screwed Ball Valve specifications:
1. Size: 1/4’’~4’’(DN6~DN100)
2. Pressure: 1000WOG
3. Material: A351-CF8, A351-CF8M, A216-WCB
4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
3PC Screwed Ball Valve design features:
1. High quality investment castings improve dimensional control and reduce porosity; certified material test reports are available upon request.
2. High Temperature Seats and Seals
3. Blow-Out-Proof Stem. Stem is bottom loaded to prevent removal when valve is in service
4. Temperature Range: -20° to 600° F (depending on seats)
5. Connection ends: NPT/BSP/BSPT/DIN259/DIN2999, Butt Welding, Socket Welding.
6. Three piece construction, swing-out construction makes the valve easy to repair in line 3PC ball valve delivers exceptional performance and economy in a 3-piece design.
3PC SS Ball Valve competitive advantage:
1. We have professional inspectors to control every production process to guarantee the quality of our products.
2. 18 Months warranty after delivery.
3. Offer free samples for testing before orders.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
5. 100% leakage testing.
6. 100% inspection & testing for every production process before delivery.
7. Light torque for easy operation & long service life.
3PC Floating SS Ball Valve is an ideal choice for on-off control without pressure drop in manual valves. 3PC Stainless Steel Ball Valve is full port design, is prefect to improve flow rates and reduce the pressure through the valves. Three Piece SS Ball Valve has three connection ends type for use, screwed ends(NPT/BSPP/BSPT/DIN259/DIN2998), Butt welded ends, Socket welded ends.
3PC Screwed Ball Valve Material List:
Note:All the data should be confirmed with the approved drawings of manufacturer.
