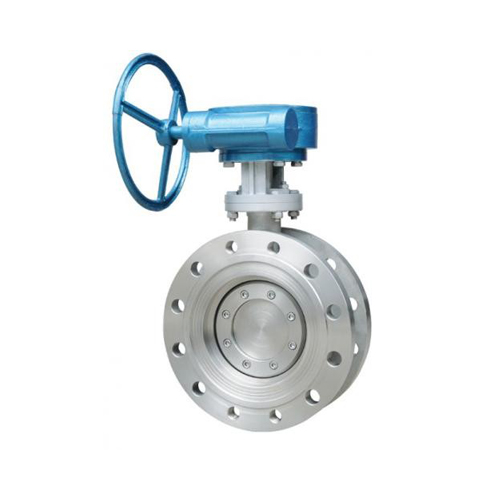

Stainless Steel Flange Triple Triple Eccentric Butterfly valve

Stainless Steel Flange Triple Triple Eccentric Butterfly valve

Triple Eccentric Butterfly Valve Specifications:

1. Size: DN50~DN2400

2. Pressure: 150LB~900LB/PN16~PN160

3. Material: A216-WCB, A351-CF8/CF8/CF3/CF3M, Chromium molybdenum steel, Low temperature steel, Nickel alloy, Monel Duplex Steel

4. Ends: Flange, Welding, Wafer, Lug type, etc.

5. Port: Full Port

6. Seat: Metal or soft are available for use conditions.

7. Working Temperature: ~29℃-500℃, or according to customer requirements for different industry.

8. Operating: Handle, Worm gear, Pneumatic actuator, Electric actuator.

Triple Eccentric Butterfly Valve Applicable Standards:

1. Design & Manufacture standard: API 609/EN593

2. Pressure & Temperature standard: ASME B16.34/DIN2401

3. Face to face dimension standard: ASME B16.10/EN558

4. Flange/Wafer/Lug ends standard: ASME B 16.5, ASME B16.47/EN1092

5. Welding ends standard: ASME B16.25

6. Test & Inspect standard: API 598/EN12266

Triple Eccentric Butterfly Valve Features:

1. When open, have large circulation area, low fluid resistance.

2. Bi-directional sealing & unidirectional sealing are available.

3. Simple construction, short Length pattern design, small and portable, easy for install, disassembly and assembly, maintenance, can installed in any position.

4. Sealing performance is good, generally rubber sealing surface for normal pressure and temperature. But metal sealing surface improve butterfly valve pressure and temperature.

5. Light weight is suitable for big size using conditions.

6. Suitable for high cycling frequencies.

7. Complete perfect sealing for zero leakage.

8. Could choose different parts materials, suitable for kinds of mediums.

9. Straight flow characteristics, perfect regulation performance.

10. Combined valve sealing and valve body as a whole, make the valve a longer life circle.

11. Triple eccentric butterfly valve could

In general, the Triple Eccentric Butterfly Valve is commonly employed in large pipelines for regulation purposes. This type of valve is mainly used with medium containing suspended solid particles due to the frictional movement of its disc. However, it can also be suitable for particles and powdery medium based on the strength of its sealing surface. The Eccentric Butterfly Valve is designed for flow regulation and offers advantages such as smaller dimensions in length and height compared to other valve types, as well as fast opening and closing speeds. This valve exhibits excellent fluid control characteristics. When it comes to controlling fluid with a butterfly valve, the key is to select the appropriate size and type to ensure proper and effective operation. The Triple Eccentric Butterfly Valve finds wide application in industries such as petroleum, chemical, food, medicine, paper making, water treatment, marine, electricity, shipping, water supply and drainage, metallurgy, and energy systems. It consists of a body, disc, shaft seat, and drive actuator (lever, worm gear, pneumatic or electric actuator). The drive actuator is used to rotate the shaft and disc, enabling the valve to open and close and control the flow.

Triple Eccentric Butterfly Valve Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.
