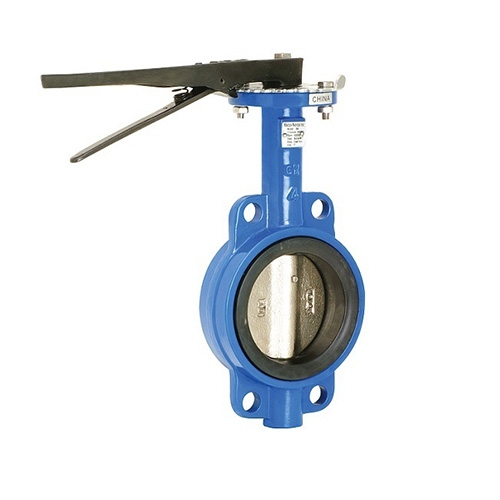

Cast Steel EPDM Lined Wafer Lug Type Concentric Butterfly Valve
Concentric Butterfly valves operate on a similar principle as ball valves. However, instead of a ball being placed in the valve body, a circular disc (resembling wings of a butterfly due to the two half circles surrounding the vertical shaft) is used.
The flowrate is determined by the orientation of the butterfly. When the butterfly aligns with the direction of the pipe, allowing the least cross-sectional area for the fluid to pass through, it enables full flow.
As the butterfly deviates from the pipe direction, the flowrate becomes limited due to the increased obstruction area for the fluid. Eventually, when the butterfly is positioned at a 90-degree angle to the pipe direction, the flow is completely shut off.
Concentric Butterfly Valve Specifications:
Size: DN50~DN2400
Pressure: 150LB~900LB/PN16~PN160
Material: A216-WCB, A351-CF8/CF8/CF3/CF3M, Chromium molybdenum steel, Low temperature steel, Nickel alloy, Monel Duplex Steel
Ends: Flange, Welding, Wafer, Lug type, etc.
Port: Full Port
Seat: Metal or soft are available for use conditions.
Working Temperature: ~29℃-500℃, or according to customer requirements for different industry.
Operating: Handle, Worm gear, Pneumatic actuator, Electric actuator.
Concentric Butterfly Valve Applicable Standards:
Design & Manufacture standard: API 609/EN593
Pressure & Temperature standard: ASME B16.34/DIN2401
Face to face dimension standard: ASME B16.10/EN558
Flange/Wafer/Lug ends standard: ASME B 16.5, ASME B16.47/EN1092
Welding ends standard: ASME B16.25
Test & Inspect standard: API 598/EN12266
Concentric Butterfly Valve Features:
When open, have large circulation area, low fluid resistance.
Bi-directional sealing & unidirectional sealing are available.
Simple construction, short Length pattern design, small and portable, easy for install, disassembly and assembly, maintenance, can installed in any position.
Sealing performance is good, generally rubber sealing surface for normal pressure and temperature. But metal sealing surface improve butterfly valve pressure and temperature.
Light weight is suitable for big size using conditions.
Suitable for high cycling frequencies.
Complete perfect sealing for zero leakage.
Could choose different parts materials, suitable for kinds of mediums.
Straight flow characteristics, perfect regulation performance.
Combined valve sealing and valve body as a whole, make the valve a longer life circle.
Triple eccentric butterfly valve could
Concentric Butterfly Valve Competitive Advantages:
Our products is guaranteed within 18 months after delivery.
We offer free sample if interest before orders.
Technology renovation, process improvement, structure optimization and quality improvement.
Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
100% inspection & testing before delivery.
Third party inspection on customer requirement.
