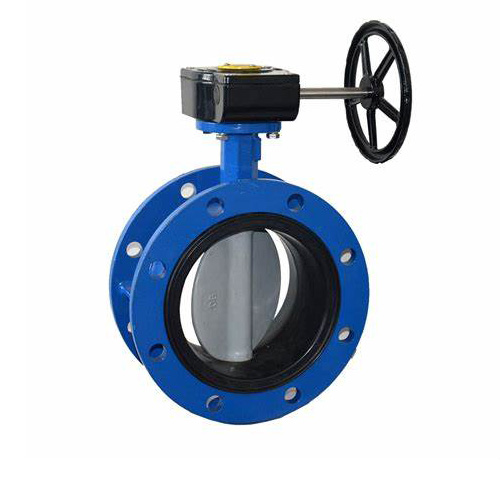

Double Flange Concentric Butterfly Valve with Worm Gear Operated
Double Flange Butterfly Valves employ a similar principle to ball valves. Nevertheless, instead of a ball positioned within the valve body, a circular disc (referred to as a butterfly due to its resemblance to wings formed by two half circles surrounding a vertical shaft) is used.
Similarly, the flowrate is determined by the orientation of the butterfly. When the butterfly aligns with the direction of the pipe, presenting the smallest cross-sectional area to the flowing fluid, maximum flow is achieved.
Conversely, as the butterfly deviates from the pipe's direction, the flowrate is impeded by the increased obstruction area. Eventually, when the butterfly is positioned at a 90-degree angle to the pipe, the flow is completely shut off.
Double Flange Butterfly Valves Specifications:
Size: DN50~DN2400
Pressure: 150LB~900LB/PN16~PN160
Material: A216-WCB, A351-CF8/CF8/CF3/CF3M, Chromium molybdenum steel, Low temperature steel, Nickel alloy, Monel Duplex Steel
Ends: Flange, Welding, Wafer, Lug type, etc.
Port: Full Port
Seat: Metal or soft are available for use conditions.
Working Temperature: ~29℃-500℃, or according to customer requirements for different industry.
Operating: Handle, Worm gear, Pneumatic actuator, Electric actuator.
Double Flange Butterfly Valves Applicable Standards:
Design & Manufacture standard: API 609/EN593
Pressure & Temperature standard: ASME B16.34/DIN2401
Face to face dimension standard: ASME B16.10/EN558
Flange/Wafer/Lug ends standard: ASME B 16.5, ASME B16.47/EN1092
Welding ends standard: ASME B16.25
Test & Inspect standard: API 598/EN12266
Double Flange Butterfly Valves Features:
When open, have large circulation area, low fluid resistance.
Bi-directional sealing & unidirectional sealing are available.
Simple construction, short Length pattern design, small and portable, easy for install, disassembly and assembly, maintenance, can installed in any position.
Sealing performance is good, generally rubber sealing surface for normal pressure and temperature. But metal sealing surface improve butterfly valve pressure and temperature.
Light weight is suitable for big size using conditions.
Suitable for high cycling frequencies.
Complete perfect sealing for zero leakage.
Could choose different parts materials, suitable for kinds of mediums.
Straight flow characteristics, perfect regulation performance.
Combined valve sealing and valve body as a whole, make the valve a longer life circle.
Double Flange Butterfly Valves Competitive Advantages:
Our products is guaranteed within 18 months after delivery.
We offer free sample if interest before orders.
Technology renovation, process improvement, structure optimization and quality improvement.
Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
100% inspection & testing before delivery.
Third party inspection on customer requirement.
