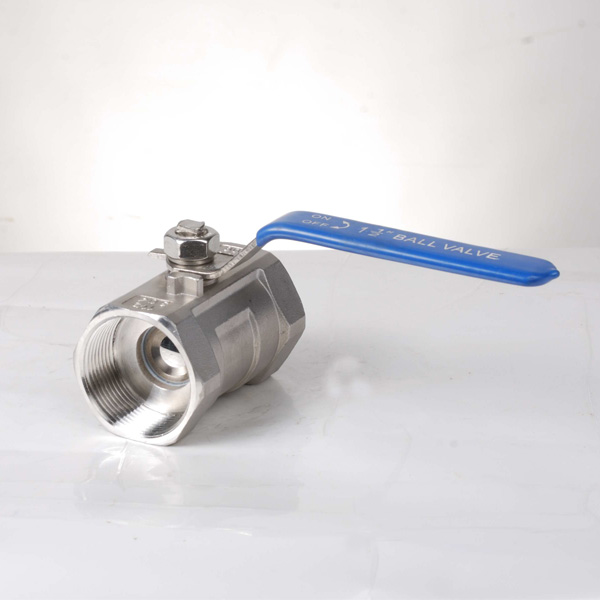

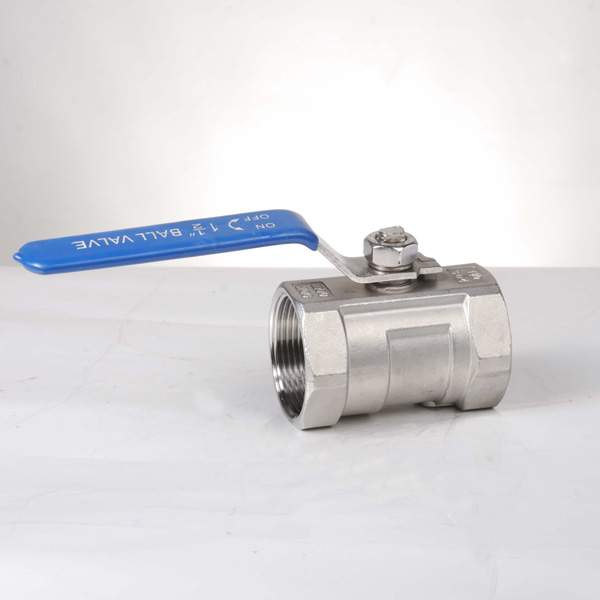

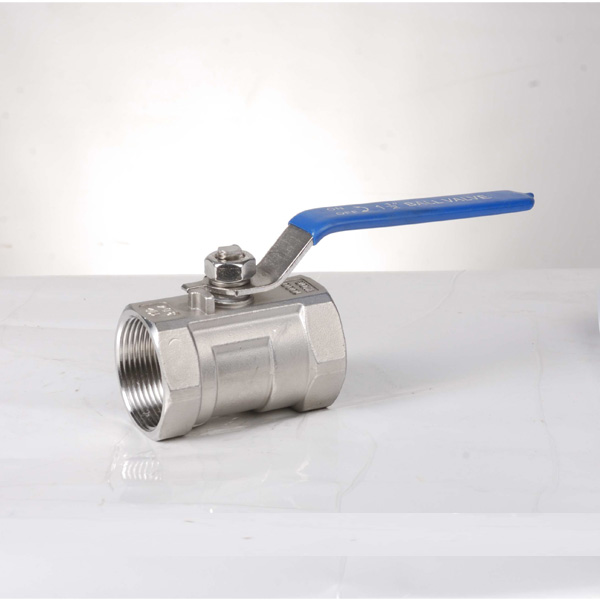

Single Body Reduce Port Screwed Stainless Steel Ball Valve

Single Body Reduce Port Screwed Stainless Steel Ball Valve

Single body ball valve is one piece body type, it is small and simple to install. Its constructure is simple, easy for open and close with light torque. Single body stainless steel ball valve has good sealiing performance with soft seat, it could bear 180~200 degree with RPTFE and PPL material, it is suitable for steam, gas, oil and water medium, etc. Stainless steel single body ball valve design simple, maintain is easy and fast during working on pipeline. When open or close, there is no friction for single body ball valve, it is good for sealing. And for single body ball valve, materials choice scope is big,including stainless steel, alloy steel, cast steel, duplex steel, brass, bronze, etc. which is widely used in different industries.

Single Body Ball Valve Introduction:

1. Nominal Size: 1/4’’~4’’(DN6~DN100)

2. Working Pressure: 1000WOG

3. Mian Material: A351-CF8, A351-CF8M, A216-WCB

4. Connetct Ends: NPT, BSPP, BSPT, DIN259, DIN2999

5. Port: Reduce Port

6. Seal/Seat option: PTFE, RPTFE, PPL, PEEK

Single Body Ball Valve design features:

1. Investment casting body

2. Adjustable stem packing

3. Blow out proof stem

4. 100% leakage tested

5. Handle operated, or butterfly handle operated

6. Working Temperature: -20℃~180℃

7. Available with ISO5211 direct mounting pad & actuators

8. Available with locking device

9. Other materials upon customer’s request

Single Body Ball Valve good points from supplier:

1. OEM/ODM is applicable

2. Offer free sample for testing

3. 100% test before delivery

4. 18 months warranty

Single Body Ball Valve Constructure:

 Note:All the data should be confirmed with the approved drawings of manufacturer.
