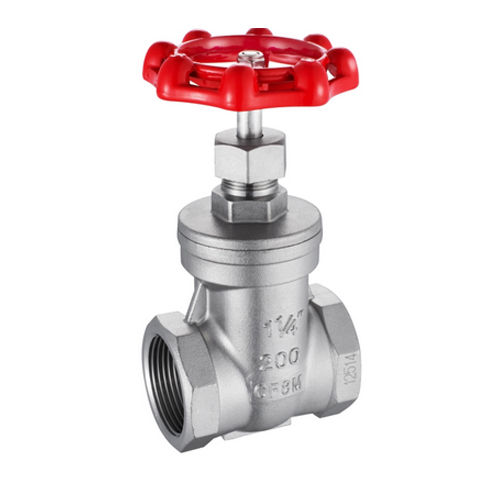

Female Threaded Ends 200WOG CF8M Non-rising Stem Stainless Steel Gate Valve

Female Threaded ends 200WOG CF8M Non-rising Stem Stainless Steel Gate Valve

Threaded Stainless Steel Gate Valve specifications:

1. Size: 1/2’’~4’’(DN15~DN100)

2. Pressure: 200WOG

3. Material: A351-CF8, A351-CF8M, A216-WCB

4. Ends: NPT, BSPP, BSPT, DIN259, DIN2999

5. Port: Full Port

6. Seal/Seat: Metal

Threaded Stainless Steel Gate Valve features:

1. Screwed bonnet

2. Solid wedge disc

3. Non-rising stem

4. Hydrostatic shell test at 300 psi

5. Hydrostatic seat test at 220 psi

6. Threaded or socket weld ends

Threaded Stainless Steel Gate Valve competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.

Threaded Stainless Steel Gate Valve provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated. Stainless Steel Gate Valve with non-rising stem may have a pointer threaded onto the upper end of the stem to indicate valve position, since the gate travels up or down the stem on the threads without raising or lowering the stem. Threaded Stainless Steel Gate Valve Non-rising stems are used underground or where vertical space is limited.

 Threaded Stainless Steel Gate Valve material list:

 Note:All the data should be confirmed with the approved drawings of manufacturer.
