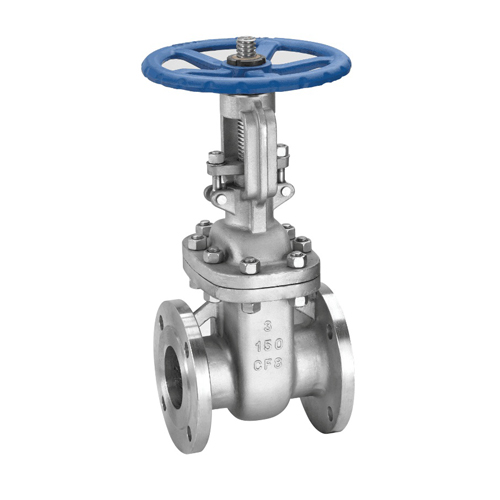

API/JIS/DIN/EN Stainless Steel Flange Ends Gate Valve

API/JIS/DIN/EN Stainless Steel Flange Ends Gate Valve

Stainless Steel Gate Valve specifications:

1. Size: 1/2’’~48’’(DN15~DN1200)

2. Pressure: 150LB~2500LB

3. Material: SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.

4. Ends: RF. RTJ, FF, BW, etc.

5. Port: Full Port

6. Working Temperature: -196~425℃, or according to customer requirements for different industry.

7. Operating: Gearwheel, Pneumatic actuator, Electric actuator.

Stainless Steel Gate Valve applicable standards:

1. Design & Manufacture standard: API 600/DIN3352

2. Pressure & Temperature standard: ASME B16.34/DIN2401

3. Face to face dimension standard: ASME B16.10/EN558

4. Flange standard: ASME B 16.5, ASME B16.47/EN1092

5. Test & Inspect standard: API 598/EN12266

Stainless Steel Gate Valve features:

1. Outside Screw and Yoke

2. Bolted Bonnet and Pressure Seal

3. Flexible and solid wedge, fully guided

4. Welding seat rings or Renewable seat rings

5. Rising stem and non-rising stem

6. Available with gear operator

7. Flange Ends & Butt welding Ends

8. Low torque design, smooth surface stem.

9. DIN standard: F4/F4/F7 length option.

Stainless Steel Gate Valve competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.

Stainless steel gate valve, bolted bonnet or pressure seal bonnet design, with advantage in low fluid resistance, little impact erosion on sealing surface, no change of medium flow direction, no disturbed flow, small pressure drop, etc. Stainless Steel Gate Valve is widely used to put through cut off medium in oil & stream pipeline in a wide range of pressure and temperature, such as petroleum, chemicals, thermal power plants, etc. We could be produced in API, ASME, EN, DIN, BS, GOST standards to meet different markets. Cast steel gate valve use upper seal design, to ensure reliable sealing when valve is fully open. Generally for small size, we use handwheel operated, gear operated for bigger size. If want remote control, we can use pneumatic & electric actuator.
