MSNL

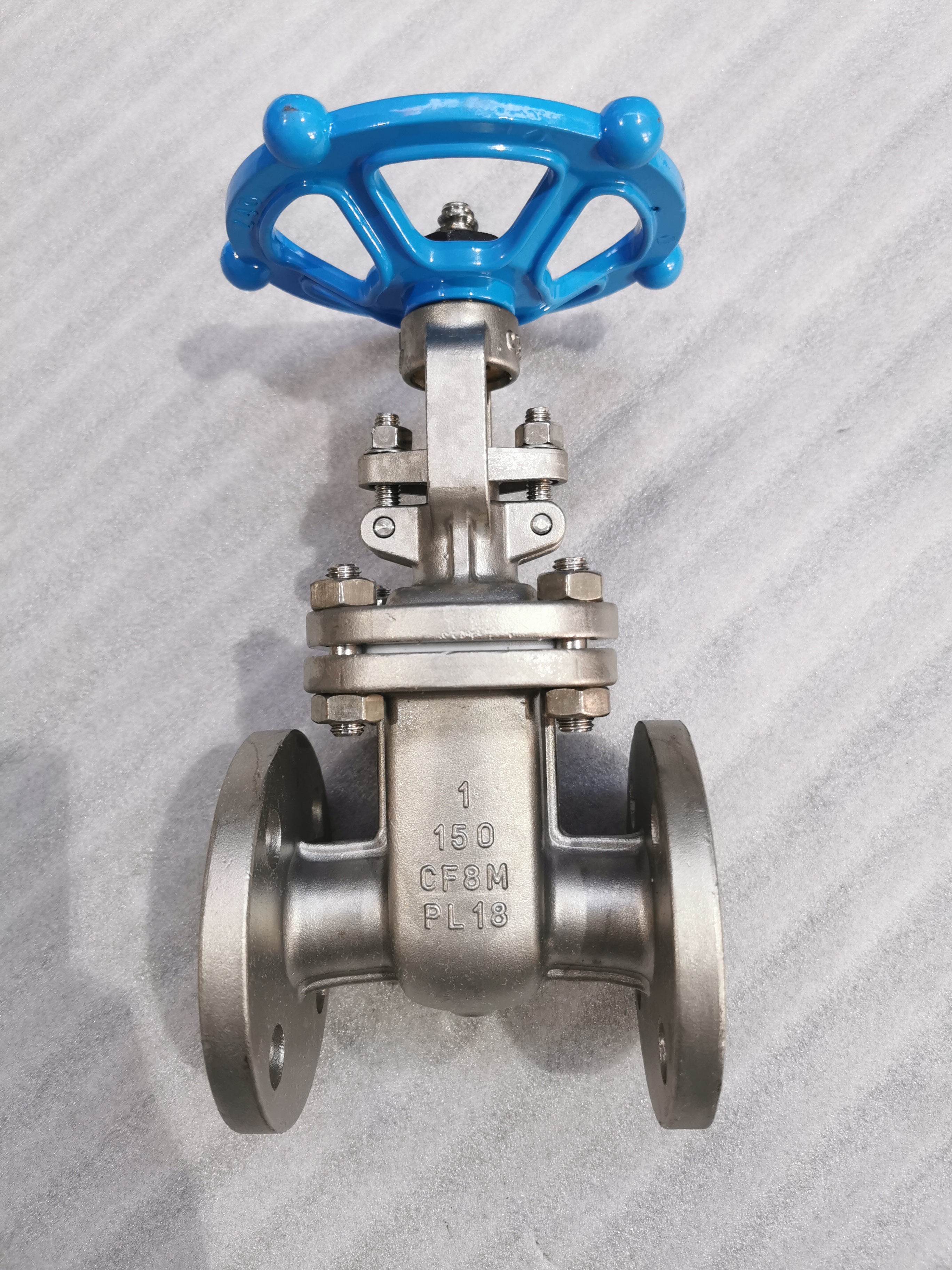

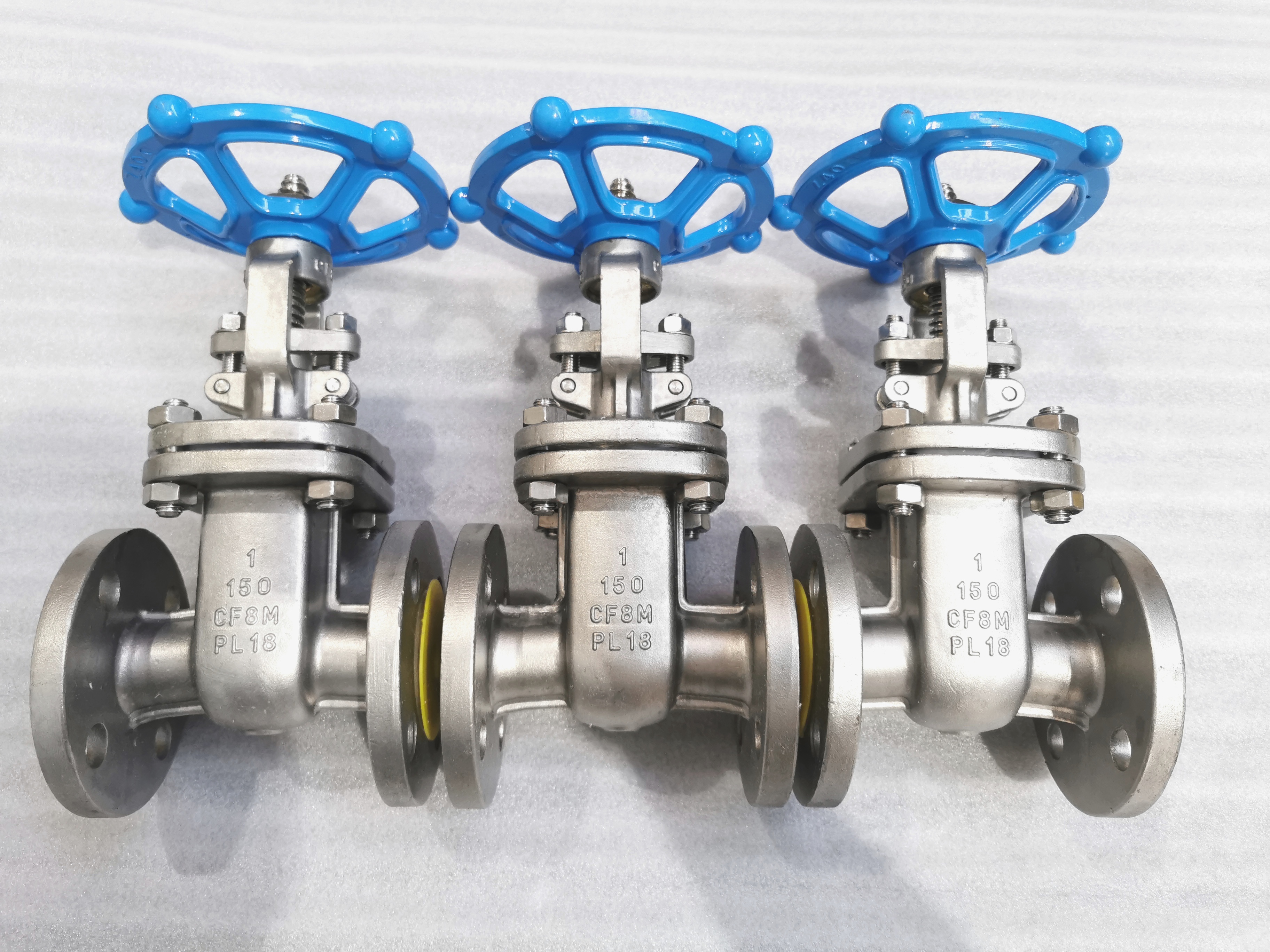

150LB A351-CF8 Stainless Steel 1'' DN25 Flange Gate Valve Rising Stem
Stainless Steel flange gate valve is suitable for ANSI class 150LB~2500LB, PN2.0~16.0 Mpa, JIS10K~20K, working temperature is -29~425℃(carbon steel) and -40~500℃(stainless steel). Stainless Steel gate valve is use to cut off or connect fluid medium in pipeline. Stainless steel flange gate valve is applicable for water, oil, steam, oil nitric acid, acetic acid, strong oxdizing medium and urea, etc. by choosing different materials. Handwheel, manual, bevel gear and actuator operation are available.
Stainless steel flange gate valve has rising stem and non-rising stem structure, mainly produce in API/ASME, JIS, DIN/EN, GB standards with different dimensions. Stainless Steel gate valve is upper seal design, have more reliable sealing when gate open and close fully. The sealing surfaces of the gate and valve seat are made of iron-based alloy surfacing or stellite cobalt-based hard alloy surfacing, which is wear-resistant, high-temperature resistant, corrosion-resistant, scratch-resistant and has a long service life.The valve stem is quenched and tempered and surface nitrided, which has good corrosion resistance, scratch resistance and wear resistance.
Stainless Steel 150LB Gate Valve specifications:
Size: 1/2’’~48’’(DN15~DN1200)
Pressure: 150LB~2500LB
Material:WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
Ends: RF. RTJ, FF, BW, etc.
Port: Full Port
Working Temperature: -196~425℃, or according to customer requirements for different industry.
Operating: Gearwheel, Pneumatic actuator, Electric actuator.
Stainless Steel 150LB Gate Valve applicable standards:
Design & Manufacture standard: API 600
Pressure & Temperature standard: ASME B16.34
Face to face dimension standard: ASME B16.10
Flange standard: ASME B 16.5, ASME B16.47
Test & Inspect standard: API 598
Carbon Steel Gate Valve features:
Outside Screw and Yoke
Bolted Bonnet and Pressure Seal
Flexible and solid wedge, fully guided
Welding seat rings or Renewable seat rings
Rising stem and non-rising stem
Available with gear operator
Flange Ends & Butt welding Ends
Low torque design, smooth surface stem.
Stainless Steel 150LB Gate Valve competitive advantages:
1、Meets the domestic and foreign advanced standard requirement, the seal is reliable, the performance is fine, handsome appearance.
2、The damper plate, the valve seat packing surface is too vertical (stellite) with the iron-base alloy built-up welding or the department the cobalt base
hard alloy built-up welding to become, wear-resisting, thermostable, anti-corrosive, the anti-abrasion performance is good, the service life is long.
3、 Using wedge-type flexible gate structure, medium and large caliber set bearings, switches flexible, open and close easily.
4、 Stem quenched and the nitrogen treatment, with good corrosion resistance, scratch resistance and wear resistance.
5、 Can be used with a variety of standard pipe flanges and flange sealing surface types to meet various project needs and user requirements.
6、Valve body materials, variety, packing, gasket can be based on actual working conditions or the user requests a reasonable option,can be applied to all
kinds of pressure, temperature and medium conditions.
Stainless Steel 150LB Gate Valve Constructure:
Stainless Steel Gate Valve Main Materials:
Stainless Steel Gate Valve Main Dimensions:
