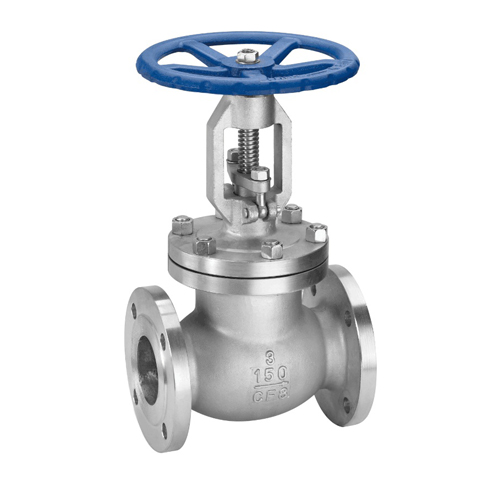

BS1873/API/DIN Stainless Steel Flange Ends Globe Valve

BS1873/API/DIN Stainless Steel Flange ends Globe Valve

 Stainless Steel Globe Valve, used for a control valve, also used for on-off service. Globe valve stem nut use bronze material, with thrust bearing design to make it easily open and close. Two piece design of packing gland to avoid stem clogging. Stainless Steel Globe Valve, generally is bolted bonnet design. If have big pressure, suggest to use self-sealing design to avoid leakage caused by big pressure through valves. Globe Valve use flexible graphite packing to ensure the reliability of seal. Stainless Steel Globe valve also can offer packing spacer ring and greasing structure when operation conditions need. Stainless steel globe valve can offer API, ASME, EN, JIS, DIN, GOST, GB standards to meet different markets.

Stainless Steel Globe Valve specifications:

1. Size: 2’’~48’’(DN15~DN1200)

2. Pressure: 150LB~2500LB

3. Material: SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), Ti, Alloy steel, WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.

4. Ends: RF. RTJ, FF, BW, etc.

5. Port: Full Port

6. Working Temperature: -196~425℃, or according to customer requirements for different industry.

7. Operating: Gearwheel, Pneumatic actuator, Electric actuator.

Stainless Steel Globe Valve applicable standards:

1. Design and Manufacture: BS1873/EN13709

2. Inspection and Test: API598/ISO 5208/EN12266

3. Flange ends dimension: ASME B16.5/EN 1092-1

4. Face to face and end to end: ASME B16.10/EN 558-1 、ISO 5752

5. Pressure-temperature ratings: ASME B16.34/DIN 2401

Stainless Steel Globe Valve features:

1. Outside Screw and Yoke

2. Bolted Bonnet and Pressure Seal

3. Welding seat rings or Renewable seat rings

4. Rising stem and non-rising stem

5. Available with gear operator

6. Flange Ends & Butt welding Ends

7. Low torque design, smooth surface stem.

Stainless Steel Globe Valve competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.
