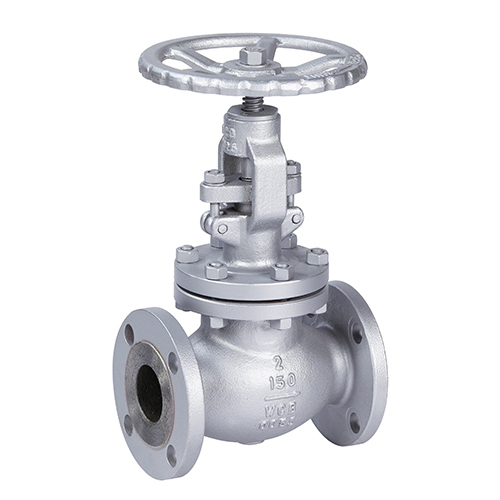

BS1873/API/DIN Carbon Steel Flange ends Globe Valve 150LB~2500LB
API Flange Carbon Steel Globe Valve, also called as stop valve, it designs in straight type, angle type and bellows sealed type for different operation. Carbon steel globe valve is a unidirectional valve, it must have a arrows on valve body to indicate installation direction. Carbon steel globe valve pressure could make from 150LB to 2500LB, different pressure use for different pipeline needs. Generally for 2500LB pressure, we will suggest to use butt welded ends for better sealing. Carbon steel globe valve is used for a control valve, also used for on-off service. Globe valve stem nut use bronze material, with thrust bearing design to make it easily open and close. Two piece design of packing gland to avoid stem clogging. Stainless Steel Globe Valve, generally is bolted bonnet design. If have big pressure, suggest to use self-sealing design to avoid leakage caused by big pressure through valves. Globe Valve use flexible graphite packing to ensure the reliability of seal. Stainless Steel Globe valve also can offer packing spacer ring and greasing structure when operation conditions need. Stainless steel globe valve can offer API, ASME, EN, JIS, DIN, GOST, GB standards to meet different markets.
Carbon Steel Gate Valve specifications:
Size: 2’’~48’’(DN15~DN1200)
Pressure: 150LB~2500LB
Material: WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
Ends: RF. RTJ, FF, BW, etc.
Port: Full Port
Working Temperature: -196~425℃, or according to customer requirements for different industry.
Operating: Gearwheel, Pneumatic actuator, Electric actuator.
Carbon Steel Gate Valve applicable standards:
Design and Manufacture: BS1873/EN13709
Inspection and Test: API598/ISO 5208/EN12266
Flange ends dimension: ASME B16.5/EN 1092-1
Face to face and end to end: ASME B16.10/EN 558-1 、ISO 5752
Pressure-temperature ratings: ASME B16.34/DIN 2401
Carbon Steel Gate Valve features:
Outside Screw and Yoke
Bolted Bonnet and Pressure Seal
Welding seat rings or Renewable seat rings
Rising stem and non-rising stem
Available with gear operator
Flange Ends & Butt welding Ends
Low torque design, smooth surface stem.
Carbon Steel Gate Valve competitive advantages:
Our products is guaranteed within 18 months after delivery.
We offer free sample if interest before orders.
Technology renovation, process improvement, structure optimization and quality improvement.
Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
100% inspection & testing before delivery.
Third party inspection on customer requirement.
