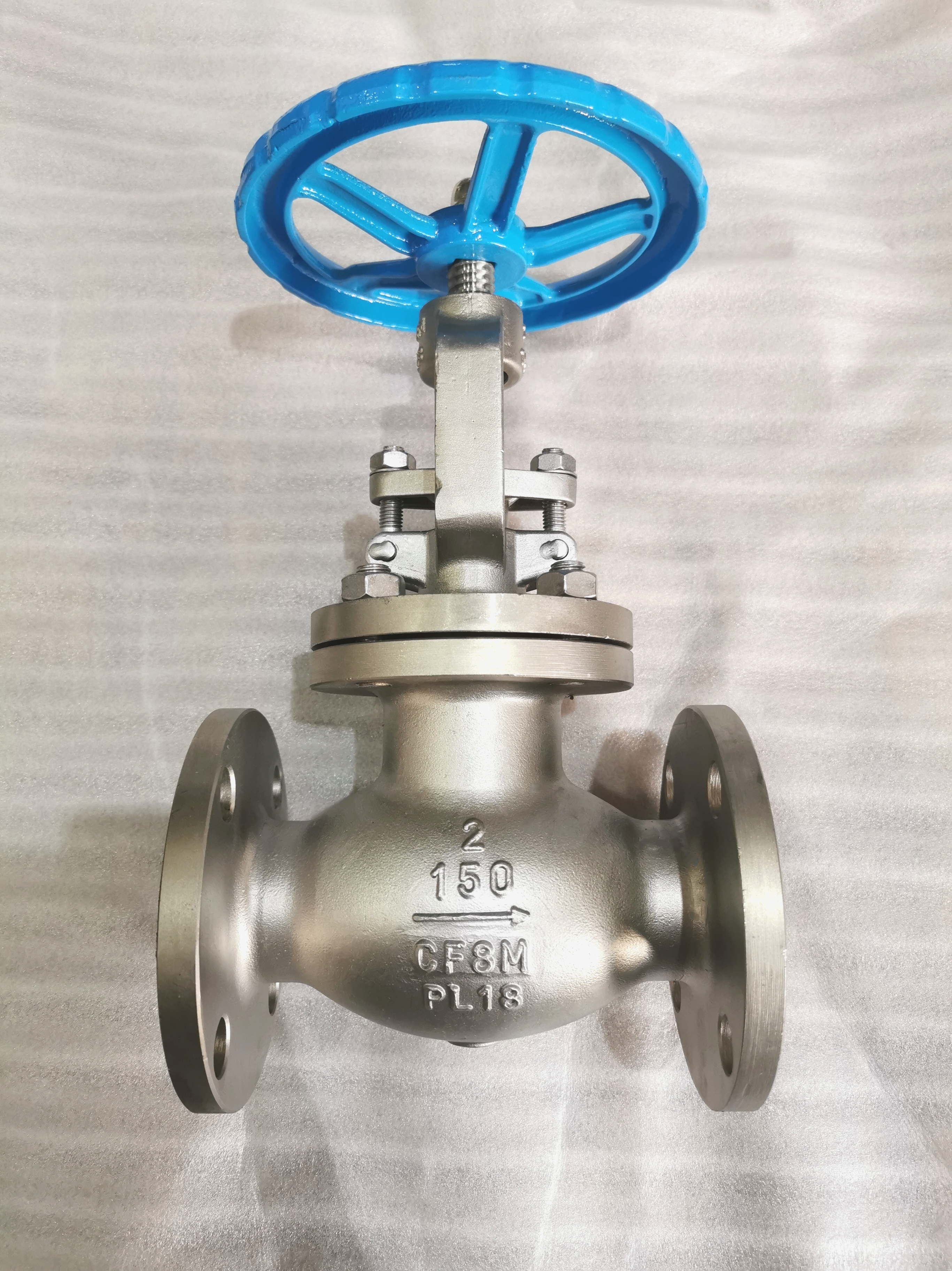

150LB 300LB 600LB RF Stainless Steel Flange ends Globe Valve
This flange globe valve is manufactured according to API & ASME standard. ASTM standard is for material, not for valves. Stainless Steel globe valve open and close by disc and stem, it has rising stem and non-rising stem. Globe valves are uni-directional type and normal applications will find the globe valve with the flow and pressure under the disc. Stainless steel globe valves are commonly made in outside screw and yoke design with full ports and heavy duty type discs. For 150LB & 300LB globe valve, the gasket type is spiral wound metal with graphite, for 600LB globe valve, gasket type is spiral wound or ring joint metal, for 900LB and above globe valve, gasket type is ring joint metal. Stainless Steel globe valev stem is rotating, rising and designed with interal backseat features which provide an ultimate seal during packing changes. Stainless Steel globe valves generally use handwheel operator, gear and actuators are available to meet customer requirements. API, DIN, JIS, GOST, GB,etc. standards globe valve are optional in Masoneilan Valve.
Stainless Steel Globe Valve specifications:
Size: 2’’~48’’(DN15~DN1200)
Pressure: 150LB~2500LB
Material: SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), Ti, Alloy steel, WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
Ends: RF. RTJ, FF, BW, etc.
Port: Full Port
Working Temperature: -196~425℃, or according to customer requirements for different industry.
Operating: Gearwheel, Pneumatic actuator, Electric actuator.
Stainless Steel Globe Valve applicable standards:
Design and Manufacture: BS1873/ASME 1873
Inspection and Test: API598
Flange ends dimension: ASME B16.5
Face to face and end to end: ASME B16.10
Pressure-temperature ratings: ASME B16.34/DIN 2401
Butt Weld dimensions: ASME B16.25
Stainless Steel Globe Valve features:
Outside Screw and Yoke
Bolted Bonnet and Pressure Seal
Welding seat rings or Renewable seat rings
Rising stem and non-rising stem
Available with gear operator
Flange Ends & Butt welding Ends
Low torque design, smooth surface stem.
Masoneilan Valve factory competitive advantages:
Our products is guaranteed within 18 months after delivery.
We offer free sample if interest before orders.
Technology renovation, process improvement, structure optimization and quality improvement.
Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
100% inspection & testing before delivery.
Third party inspection on customer requirement.
