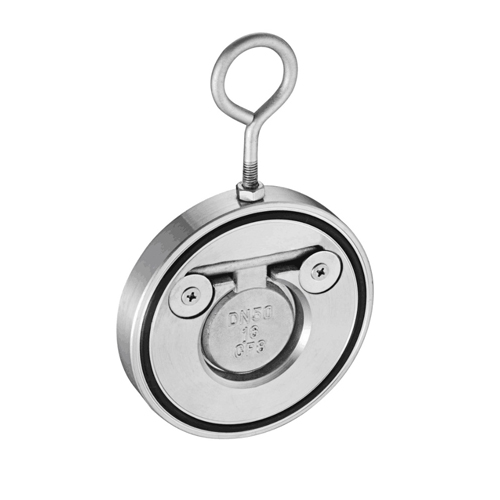

Single Disc Stainless Steel Wafer Swing Type Check Valve

Single Disc Stainless Steel Wafer Swing type Check Valve

Structure point:

1. Wafer single disc check valve has single body and structure, light weight and easy installation.

2. Single door check valve just like a door, fluid medium pressure could open it quickly.

3. Easy for vertical and horizontal installation.

4. Single disc wafer swing check valve is suitable for limited space compared to other types valves, it has small volume and fast install, and don't have body leakage risk.

Stainless Steel Wafer Check Valve, make flow in one direction and disc return automatically. Check valve is self-automated valve that no need handle or handwheel to open or close. It open and close by medium and pressure. Stainless Steel Wafer Check Valve could be produced in a full range of sizes, materials, and connections, in bronze, cast iron, carbon steel, stainless steel, alloys, etc. Stainless Steel Wafer Check Valve can installed in horizontal and vertical type to meet different using conditions.

Stainless Steel Wafer Check Valve specifications:

1. Size: 2’’~40’’(DN50~DN1000)

2. Pressure: Class 150/300, PN16/25/40

3. Material: A351-CF8, A351-CF8M, A135-CF3,A351-CF3M, Alloy steel.

4. Ends: Wafer type

5. Seal/Seat: Metal/Soft

Stainless Steel Wafer Check Valve features:

1. Unobstructed flow

2. Stable disc at lower flow velocities

3. Single integrated arm/disc assembly Spring-loaded disc calculated to increase the responsiveness of the disc

4. Integrated body seat

5. Non-blow out shaft design

6. Long body seal life

7. Soft seat in rubber for zero leakage.

Stainless Steel Wafer Check Valve competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.
