API/JIS/DIN/EN Stainless Steel Flange Check Valve

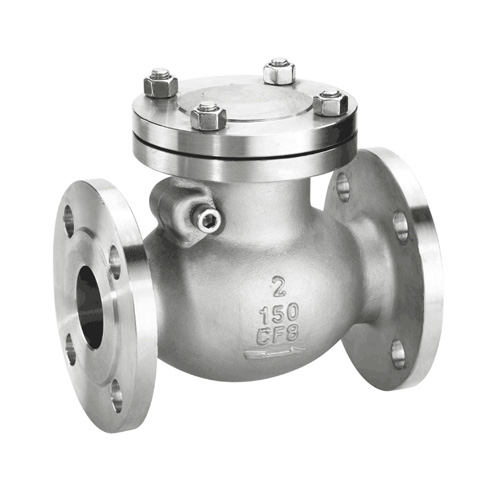

API/DIN/JIS Stainless Steel Flange type Swing Check Valve

Stainless Steel Check Valve specifications:

1. Size: 2’’~48’’(DN50~DN1200)

2. Pressure: 150LB-2500LB

3. Material: A351-CF8, A351-CF8M, A135-CF3,A351-CF3M), A216-WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc

4. Ends: RF, RTJ, BW, etc.

5. Port: Full Port

6. Seal/Seat: Metal

Stainless Steel Check Valve applicable standards:

1. Design & Manufacture standard: BS1868/EN14341.

2. Pressure & Temperature standard: ASME B16.34/DIN2401.

3. Face to face dimension standard: ASME B16.10/EN558.

4. Flange standard: ASME B 16.5, ASME B16.47/EN1092.

5. Test & Inspect standard: API 598/EN12266.

Stainless Steel Check Valve features:

1. Bolted Cover

2. Swing Type

3. One direction flow, non-return disc

4. Horizontal or Vertical lines

5. Welded Seat

6. Renewable Seat Rings

Stainless Steel Check Valve competitive advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.

Stainless Steel Check Valve, make flow in one direction and disc return automatically. Check valve is self-automated valve that no need handle or handwheel to open or close. It open and close by medium and pressure. Stainless Steel Check Valve could be produced in a full range of sizes, materials, and connections, in bronze, cast iron, carbon steel, stainless steel, alloys, etc. Stainless Steel Check Valve can installed in horizontal and vertical type to meet different using conditions.
